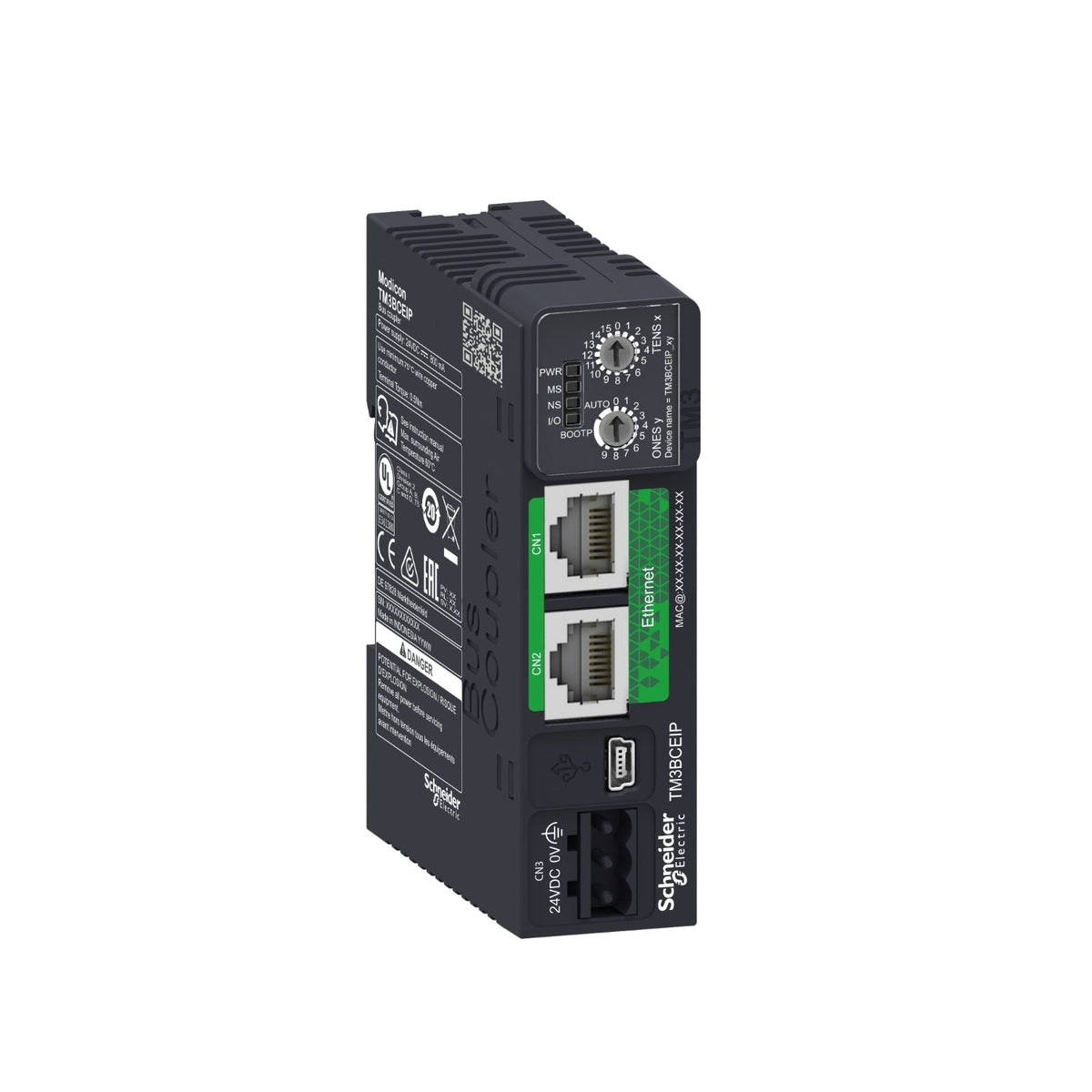

The Schneider Electric TM3BCEIP is a Modicon TM3 bus coupler that connects TM3 expansion I/O modules to a Modicon M221, M241, M251 or M262 logic controller over EtherNet/IP and Modbus TCP. It supports daisy-chain topology at 10/100 Mbit/s with half-duplex, full-duplex and autonegotiation exchange modes, and carries an IP20 enclosure rating.
Choose the TM3BCEIP when the application already runs EtherNet/IP or Modbus TCP and needs to add TM3 digital or analog I/O in a daisy-chain segment without routing every channel back to the controller's local bus. Its web server, FTP server and SNMP services support remote diagnostics over the same Ethernet segment used for the logic controller. For a Modbus RTU/RS-485 serial network instead of Ethernet, the TM3BCSL bus coupler covers that role.
| Range of Product | Modicon TM3 |
|---|---|
| Product or Component Type | I/O distributed module |
| Product Compatibility | Logic controller, Motion controller |
| Communication Port Protocol | Ethernet IP/Modbus TCP |
|---|---|
| Communication Network Type | Ethernet IP, Modbus TCP, IPv4 (internet protocol) |
| Port Ethernet | 10/100BASE-T |
| Web services | Web server, Ethernet, Web server, USB |
| Current consumption | 0.8 A 24 V DC internal supply maximum 7 expansion modules |
| Connector type | RJ45, Mini USB port |
| Exchange mode | Half duplex, full duplex, autonegotiation |
| Transmission Rate | 10/100 Mbit/s |
| Topology | Daisy chain |
| Communication Service | Ethernet/IP adapter, Modbus TCP/IP server, RSTP (Ring topology support), SNMP, Web server, DHCP client, BOOTP, Address conflict detection, FTP server |
| Local signalling | 1 LED green/red PWR (System Status), 1 LED green/red MS (Module Status), 1 LED green/red NS (Network Status), 1 LED green/red I/O status |
| Fixing mode | By clipping locks (rail), By screws (mounting plate) |
| Height | 3.8 in (96.5 mm) |
| Width | 1.06 in (27 mm) |
| Depth | 2.8 in (70 mm) |
| Net Weight | 0.22 lb(US) (0.10 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Product certifications | CE, CULus, EAC, RCM, UKCA, EU-RO MR |
| Standards | IEC 61131-2, UL/CSA 61010-1, UL/CSA 61010-2-201 |
| Ambient air temperature for operation | 14…140 °F (-10…60 °C) |
| Ambient air temperature for storage | -13…158 °F (-25…70 °C) |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Pollution degree | 2 |
| Vibration resistance | 3M4 on 35 mm DIN rail |
| Part number | TM3BCEIP |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606489703530 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.1 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for TM3BCEIP is 853710.
The EAN (GTIN) of TM3BCEIP is 3606489703530.
TM3BCEIP ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
