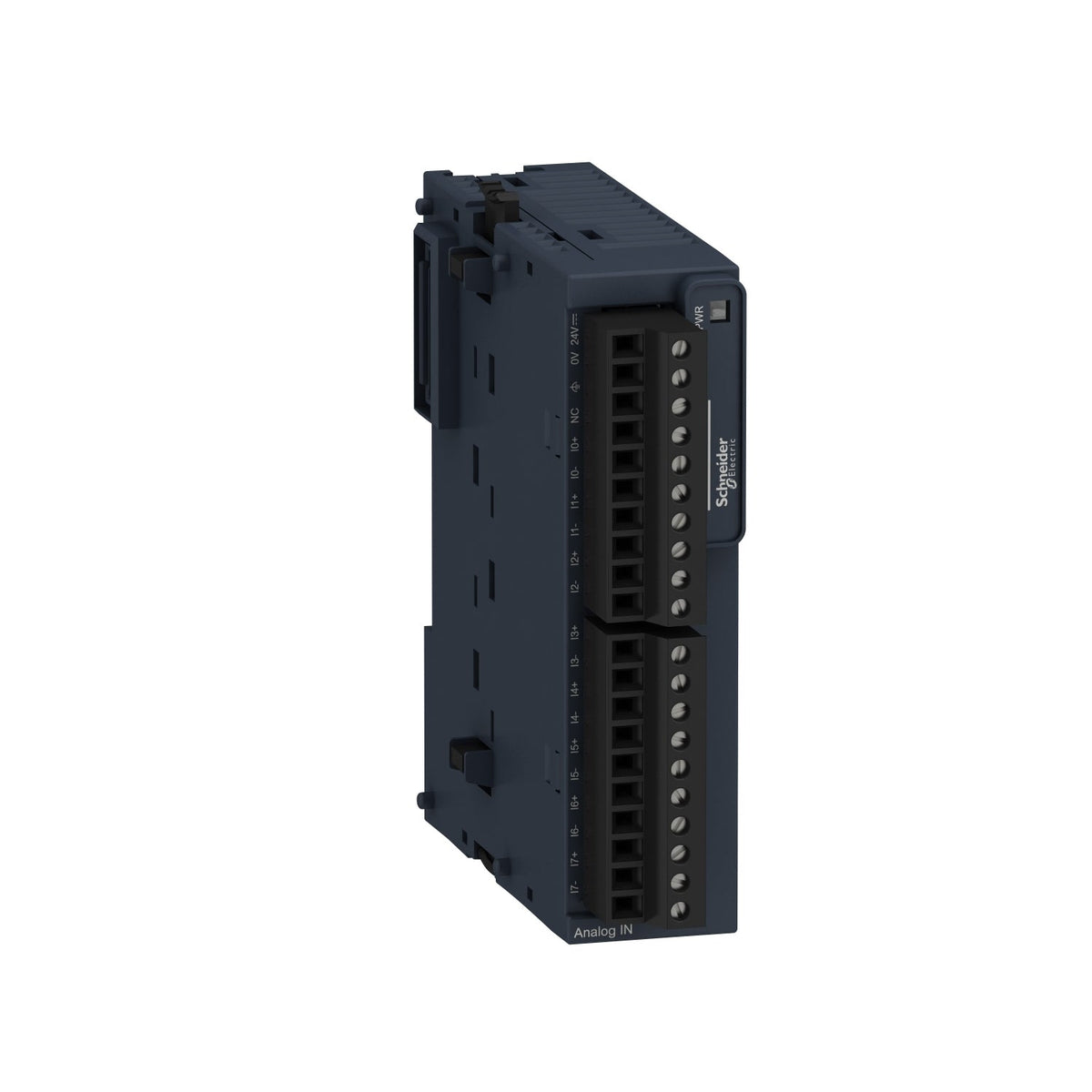

The Schneider Electric TM3AI8 is a Modicon TM3 expansion module adding 8 analog inputs (12-bit, or 11-bit plus sign) in current (0/4...20 mA) or voltage (0...10 V, -10...10 V) ranges to Modicon M221, M241, M251 and M262 logic controllers. It draws power from the controller bus or an external 24 V DC supply and reads variable speed drives or any current/voltage-output field device with ±0.2% accuracy at 25°C.
Choose the TM3AI8 over the 4-channel analog input module when the application needs to instrument more field devices per expansion slot without adding modules — it shares the same 12-bit (11-bit + sign) resolution and current/voltage ranges, just doubled to 8 channels. It suits multi-zone temperature or pressure monitoring, or banks of VSD speed feedback signals, on a single TM3 slot.
| Range of Product | Modicon TM3 |
|---|---|
| Product or Component Type | Analog input module |
| Range Compatibility | Modicon M221, Modicon M241, Modicon M251, Modicon M262 |
| Analogue input number | 8 |
| Analogue input type | Current 4...20 mA, Current 0...20 mA, Voltage 0...10 V, Voltage - 10...10 V |
|---|---|
| Analogue input resolution | 12 bits, 11 bits + sign |
| Permissible continuous overload | 13 V voltage, 40 mA current |
| Input impedance | <= 50 Ohm, >= 1 MOhm |
| Sampling duration | 1 ms |
| Conversion time | 1 ms + 1 ms per channel + 1 controller cycle time |
| Absolute accuracy error | +/- 1 % of full scale, +/- 0.2 % of full scale at 77 °F (25 °C) |
| Repeat accuracy | +/-0.5 %FS |
| Cross talk | <= 1 LSB |
| Type of cable | Twisted shielded pairs cable <98.4 ft (30 m) input |
| Electrical connection | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply, 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs |
| LSB value | 2.44 mV, 0...10 V, 4.88 mV, - 10...10 V, 4.88 µA, 0...20 mA, 3.91 µA, 4...20 mA |
| Insulation | Between input and supply 1500 V AC, Between input and internal logic 500 V AC |
| Immunity to microbreaks | 10 ms |
| Temperature drift | +/- 0.01 %FS/°C |
| Non-linearity | +/- 0.2 %FS |
| Typical current consumption | 40 mA 5 V DC full load, 35 mA 5 V no load, 30 mA 24 V no load, 40 mA 24 V full load |
| Local signalling | 1 LED green PWR |
| Mounting support | Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit |
| Height | 3.5 in (90 mm) |
| Width | 0.9 in (23.6 mm) |
| Depth | 2.8 in (70 mm) |
| Net Weight | 0.24 lb(US) (0.11 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Marking | CE |
| Product certifications | CE, UKCA, RCM, EAC, CULus, CULus HazLoc |
| Standards | IEC 61131-2 |
| Electromagnetic emission | Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz IEC 55011, Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz IEC 55011 |
| Ambient air temperature for operation | 14…131 °F (-10…55 °C) horizontal installation), 14…95 °F (-10…35 °C) vertical installation) |
| Ambient air temperature for storage | -13…158 °F (-25…70 °C) |
| Relative humidity | 10…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Pollution degree | 2 |
| Vibration resistance | 3.5 mm 5…8.4 Hz) on DIN rail, 3 gn 8.4…150 Hz) on DIN rail |
| Shock resistance | 15 gn 11 ms |
| Part number | TM3AI8 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480648922 |
| Warranty (in months) | 18 |
|---|
| Country of origin | JP |
|---|---|
| Shipping weight | 0.11 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
