Part number
TM3AI4
$249.84 On request Dispatch — · From TürkiyeGet a Quote
Modicon TM3

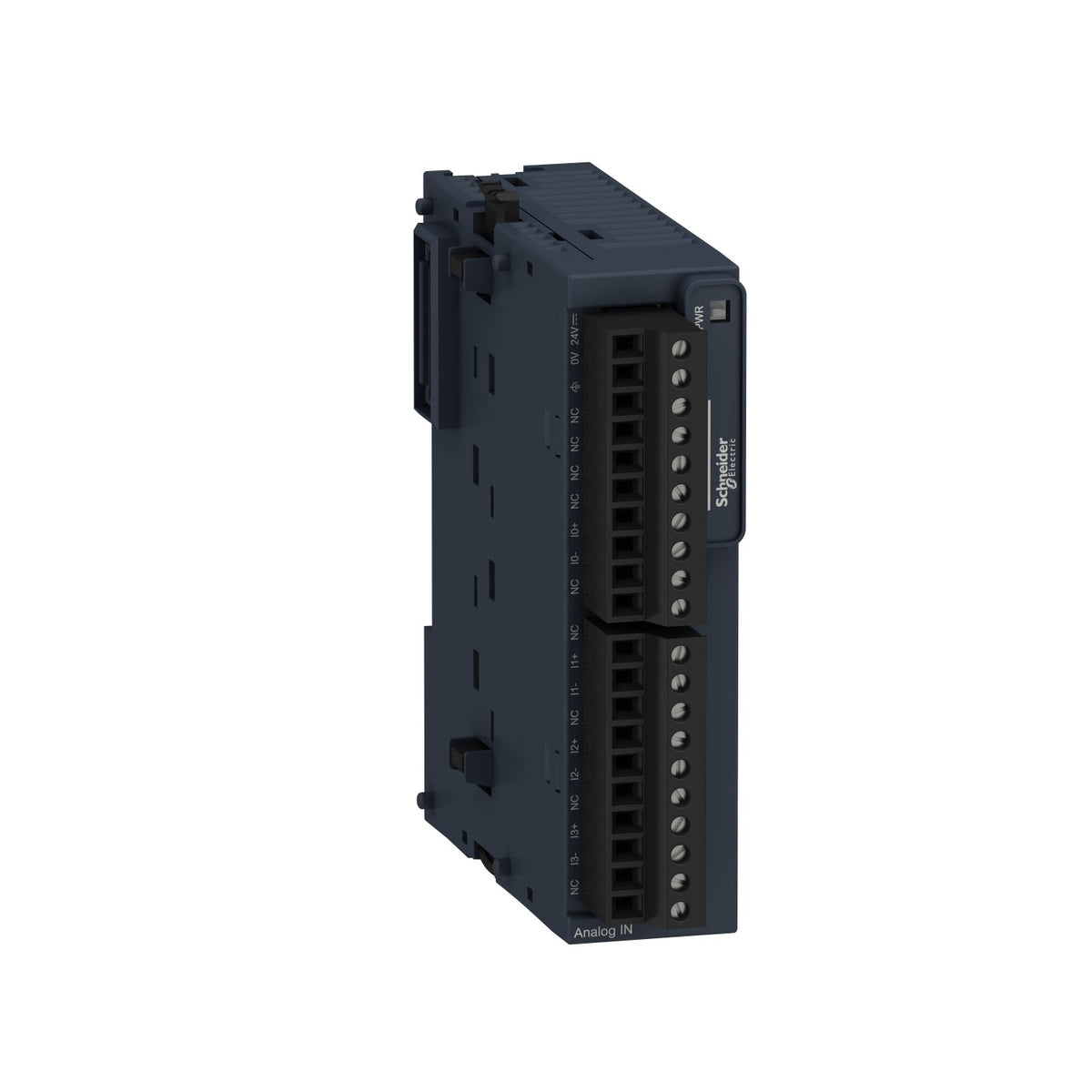

Schneider Electric TM3AI4 Modicon TM3 4 Analog Inputs Expansion Module PLC I/O Module

Modicon TM3 expansion module, 4 analog inputs (12-bit), current/voltage, 24V DC.

Range of Product
Modicon TM3
Product or Component Type
Analog input module
Range Compatibility
Modicon M221, Modicon M241, Modicon M251, Modicon M262
Analogue input number
4
EAN
3606480648908
Description

About the TM3AI4

The Schneider Electric TM3AI4 is a Modicon TM3 expansion module adding 4 analog inputs (12-bit, or 11-bit plus sign) in current (0/4...20 mA) or voltage (0...10 V, -10...10 V) ranges to Modicon M221, M241, M251 and M262 logic controllers. It draws power from the controller bus or an external 24 V DC supply and reads variable speed drives or any current/voltage-output field device with ±0.1% accuracy.

Certifications & Standards

  • CE
  • UKCA
  • RCM
  • EAC
  • cULus
  • cULus HazLoc
  • IEC 61131-2

Selection Notes

Choose the TM3AI4 over the 2-channel high-resolution module when the application needs more analog input channels rather than the finest resolution — 4 channels at 12-bit (11-bit + sign) against 2 channels at 16-bit. Choose it over the 8-channel module when only 4 inputs are needed and panel space or cost matters, since both share the same 12-bit accuracy class.

Specification

Full specification

52 values · Last verified 30 Oct 2026

Main 4

Range of Product Modicon TM3
Product or Component Type Analog input module
Range Compatibility Modicon M221, Modicon M241, Modicon M251, Modicon M262
Analogue input number 4

Complementary 23

Analogue input type Current 4...20 mA, Current 0...20 mA, Voltage 0...10 V, Voltage - 10...10 V
Analogue input resolution 12 bits, 11 bits + sign
Permissible continuous overload 13 V voltage, 40 mA current
Input impedance <= 50 Ohm, >= 1 MOhm
Sampling duration 1 ms
Conversion time 1 ms + 1 ms per channel + 1 controller cycle time
Absolute accuracy error +/- 0.1 % of full scale at 77 °F (25 °C), +/- 1 % of full scale
Repeat accuracy +/-0.5 %FS
Cross talk <= 1 LSB
Type of cable Twisted shielded pairs cable <98.4 ft (30 m) input
Electrical connection 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply, 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs
LSB value 2.44 mV, 0...10 V, 4.88 mV, - 10...10 V, 4.88 µA, 0...20 mA, 3.91 µA, 4...20 mA
Insulation Between input and supply 1500 V AC, Between input and internal logic 500 V AC
Immunity to microbreaks 10 ms
Temperature drift +/- 0.006 %FS/°C
Non-linearity +/- 0.2 %FS
Typical current consumption 35 mA 5 V DC no load, 45 mA 5 V DC full load, 30 mA 24 V DC
Local signalling 1 LED green PWR
Mounting support Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Height 3.5 in (90 mm)
Width 0.9 in (23.6 mm)
Depth 2.8 in (70 mm)
Net Weight 0.24 lb(US) (0.11 kg)

Environment 12

IP Degree of Protection IP20
Marking CE
Product certifications CE, UKCA, RCM, EAC, CULus, CULus HazLoc
Standards IEC 61131-2
Electromagnetic emission Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz IEC 55011, Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz IEC 55011
Ambient air temperature for operation 14…131 °F (-10…55 °C) horizontal installation), 14…95 °F (-10…35 °C) vertical installation)
Ambient air temperature for storage -13…158 °F (-25…70 °C)
Relative humidity 10…95 % without condensation
Operating altitude 0...6561.68 ft (0...2000 m)
Pollution degree 2
Vibration resistance 3.5 mm 5…8.4 Hz) on DIN rail, 3 gn 8.4…150 Hz) on DIN rail
Shock resistance 15 gn 11 ms
Show all 52 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number TM3AI4
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480648908

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin JP
Shipping weight 0.11 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for TM3AI4

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • UKCA
  • EAC
  • IEC 61131-2
Quick answers

Questions about the TM3AI4

What is the HS code of TM3AI4 for customs?

The tariff (HS) code on file for TM3AI4 is 853710.

What is the EAN of TM3AI4?

The EAN (GTIN) of TM3AI4 is 3606480648908.

Where does TM3AI4 ship from, and how fast?

TM3AI4 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
