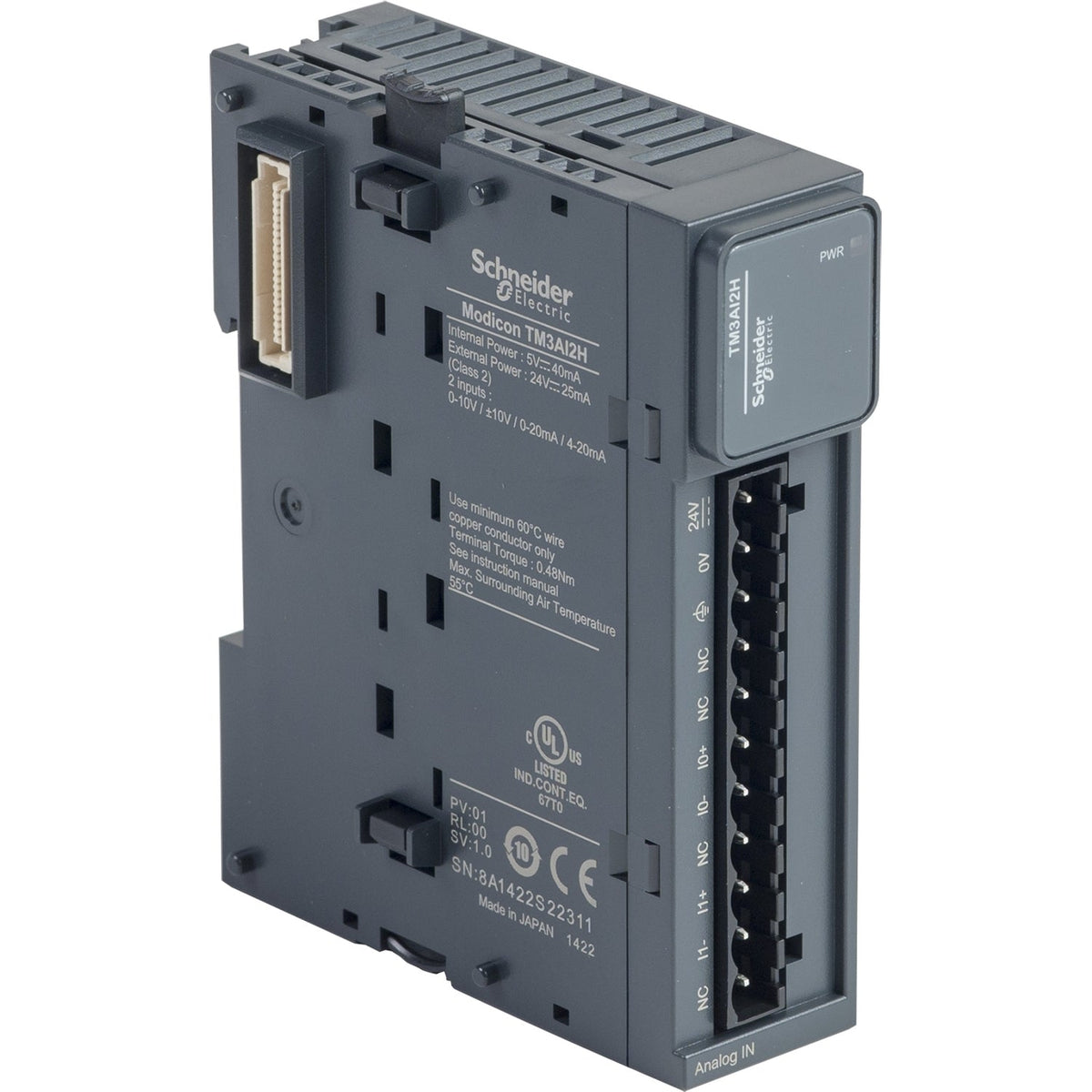

Schneider Electric TM3AI2H Modicon TM3 2 Analog High-Resolution Inputs Expansion Module PLC I/O Module

Modicon TM3 expansion module, 2 high-resolution (16-bit) analog inputs, current/voltage, 24V DC.

Range of Product
Modicon TM3
Product or Component Type
Analog input module
Range Compatibility
Modicon M221, Modicon M241, Modicon M251, Modicon M262
Analogue input number
2
EAN
3606480648885
Description

About the TM3AI2H

The Schneider Electric TM3AI2H is a Modicon TM3 expansion module adding 2 high-resolution analog inputs (16-bit, or 15-bit plus sign) in current (0/4...20 mA) or voltage (0...10 V, -10...10 V) ranges to Modicon M221, M241, M251 and M262 logic controllers. Powered from the controller bus or an external 24 V DC supply, it reads variable speed drives or any current/voltage-output field device with ±0.1% accuracy.

Certifications & Standards

  • CE
  • UKCA
  • RCM
  • EAC
  • cULus
  • cULus HazLoc
  • IEC 61131-2

Selection Notes

Choose the TM3AI2H over a standard-resolution analog input module when measurement precision matters more than channel count — its 16-bit (15-bit + sign) resolution gives a finer LSB (0.153 mV on the 0...10 V range) than the 12-bit modules in the same TM3 range, at the cost of only 2 channels instead of 4 or 8. It suits closed-loop process signals such as precise VSD speed references or pressure/temperature transmitters where 2 channels are enough but resolution is not.

Specification

Full specification

52 values · Last verified 30 Oct 2026

Main 4

Range of Product Modicon TM3
Product or Component Type Analog input module
Range Compatibility Modicon M221, Modicon M241, Modicon M251, Modicon M262
Analogue input number 2

Complementary 23

Analogue input type Current 4...20 mA, Current 0...20 mA, Voltage 0...10 V, Voltage - 10...10 V
Analogue input resolution 16 bits, 15 bits + sign
Permissible continuous overload 13 V voltage, 40 mA current
Input impedance <= 50 Ohm, >= 1 MOhm
Sampling duration 1 ms
Conversion time 1 ms + 1 ms per channel + 1 controller cycle time
Absolute accuracy error +/- 0.1 % of full scale at 77 °F (25 °C), +/- 1 % of full scale
Repeat accuracy +/-0.5 %FS
Cross talk <= 1 LSB
Type of cable Twisted shielded pairs cable <98.4 ft (30 m) input
Electrical connection 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for inputs and supply
LSB value 0.153 mV, 0...10 V, 0.305 mV, - 10...10 V, 0.305 µA, 0...20 mA, 0.244 µA, 4...20 mA
Insulation Between input and supply 1500 V AC, Between input and internal logic 500 V AC
Immunity to microbreaks 10 ms
Temperature drift +/- 0.006 %FS/°C
Non-linearity +/- 0.01 %FS
Typical current consumption 30 mA 5 V DC no load, 40 mA 5 V DC full load, 25 mA 24 V DC
Local signalling 1 LED green PWR
Mounting support Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Height 3.5 in (90 mm)
Width 0.9 in (23.6 mm)
Depth 2.8 in (70 mm)
Net Weight 0.254 lb(US) (0.115 kg)

Environment 12

IP Degree of Protection IP20
Marking CE
Product certifications CE, UKCA, RCM, EAC, CULus, CULus HazLoc
Standards IEC 61131-2
Electromagnetic emission Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz IEC 55011, Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz IEC 55011
Ambient air temperature for operation 14…131 °F (-10…55 °C) horizontal installation), 14…95 °F (-10…35 °C) vertical installation)
Ambient air temperature for storage -13…158 °F (-25…70 °C)
Relative humidity 10…95 % without condensation
Operating altitude 0...6561.68 ft (0...2000 m)
Pollution degree 2
Vibration resistance 3.5 mm 5…8.4 Hz) on DIN rail, 3 gn 8.4…150 Hz) on DIN rail
Shock resistance 15 gn 11 ms
Show all 52 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number TM3AI2H
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480648885

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin JP
Shipping weight 0.115 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
