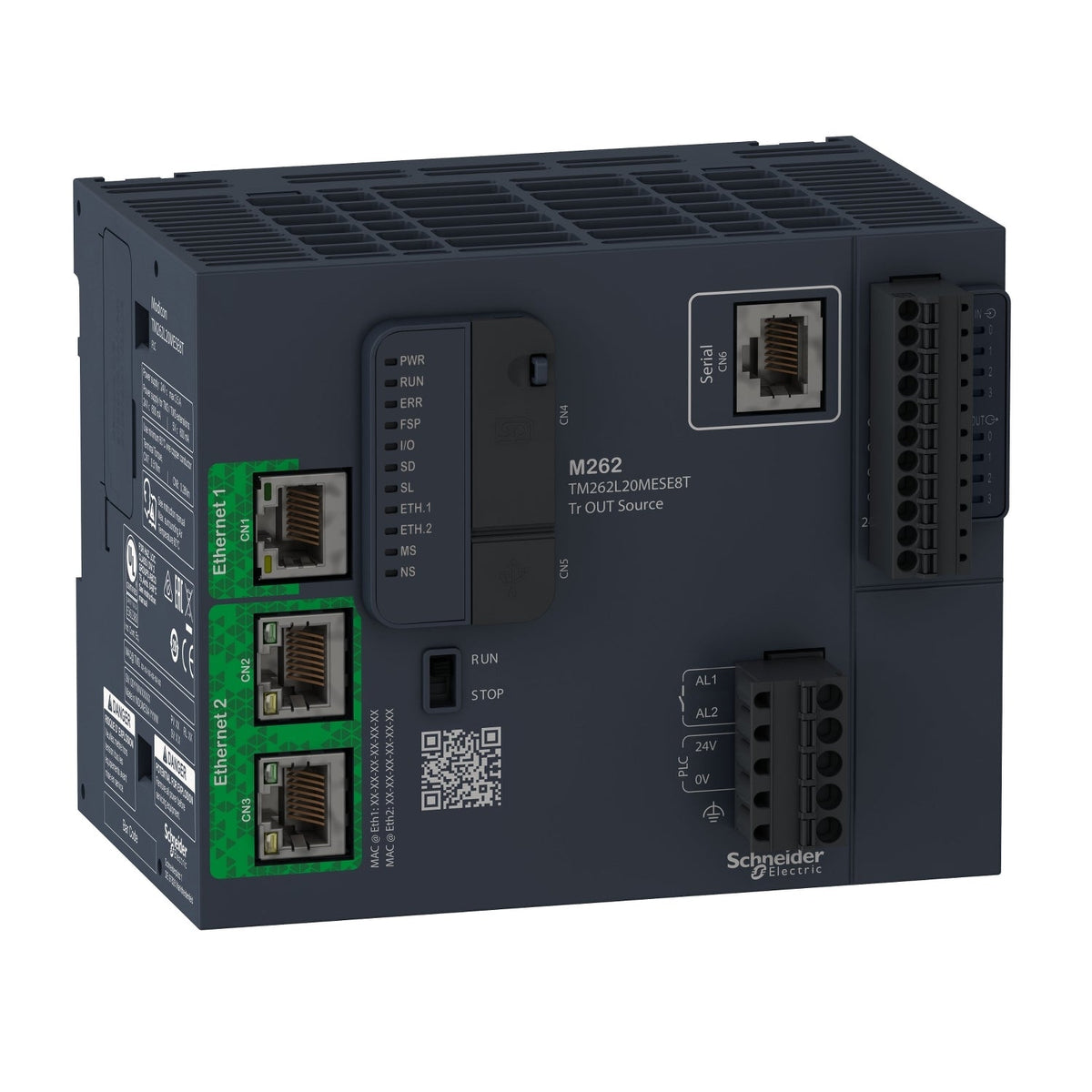

Schneider Electric TM262L20MESE8T Modicon M262 Dual Ethernet 3ns/Instruction Programmable Logic Controller

The Schneider Electric TM262L20MESE8T is a Modicon M262 logic controller reaching 3 ns per instruction, with 8 fast digital I/O (4 inputs, 4 transistor outputs to 300 kHz) and dual Ethernet networks for EtherNet/IP and Modbus TCP. Powered by 24 V DC, it targets IIoT-ready machines needing embedded cloud connectivity, cybersecurity and an expandable TM3 I/O bus without dedicated motion control.

Technical Specifications

Certifications & Standards

• CE
• cULus
• cULus HazLoc Class I Division 2
• RCM
• EAC
• Achilles
• KC
• UL 61010-1
• UL 61010-2-201
• CSA C22.2 No 61010-1
• CSA C22.2 No 61010-2-201
• CSA C22.2 No 213
• ANSI/ISA 12-12-01
• IEC 61131-2

Selection Notes

Choose the TM262L20MESE8T over a 5 ns/instruction variant when scan-cycle speed is the limiting factor — its 3 ns/instruction execution and 128-device EtherNet/IP/Modbus TCP connection ceiling (versus roughly 96 on the slower variant) suit larger distributed Ethernet architectures. Like other logic-only M262 controllers it has no Sercos motion bus, so pick a motion-enabled M262 variant when synchronized axis control is required.
