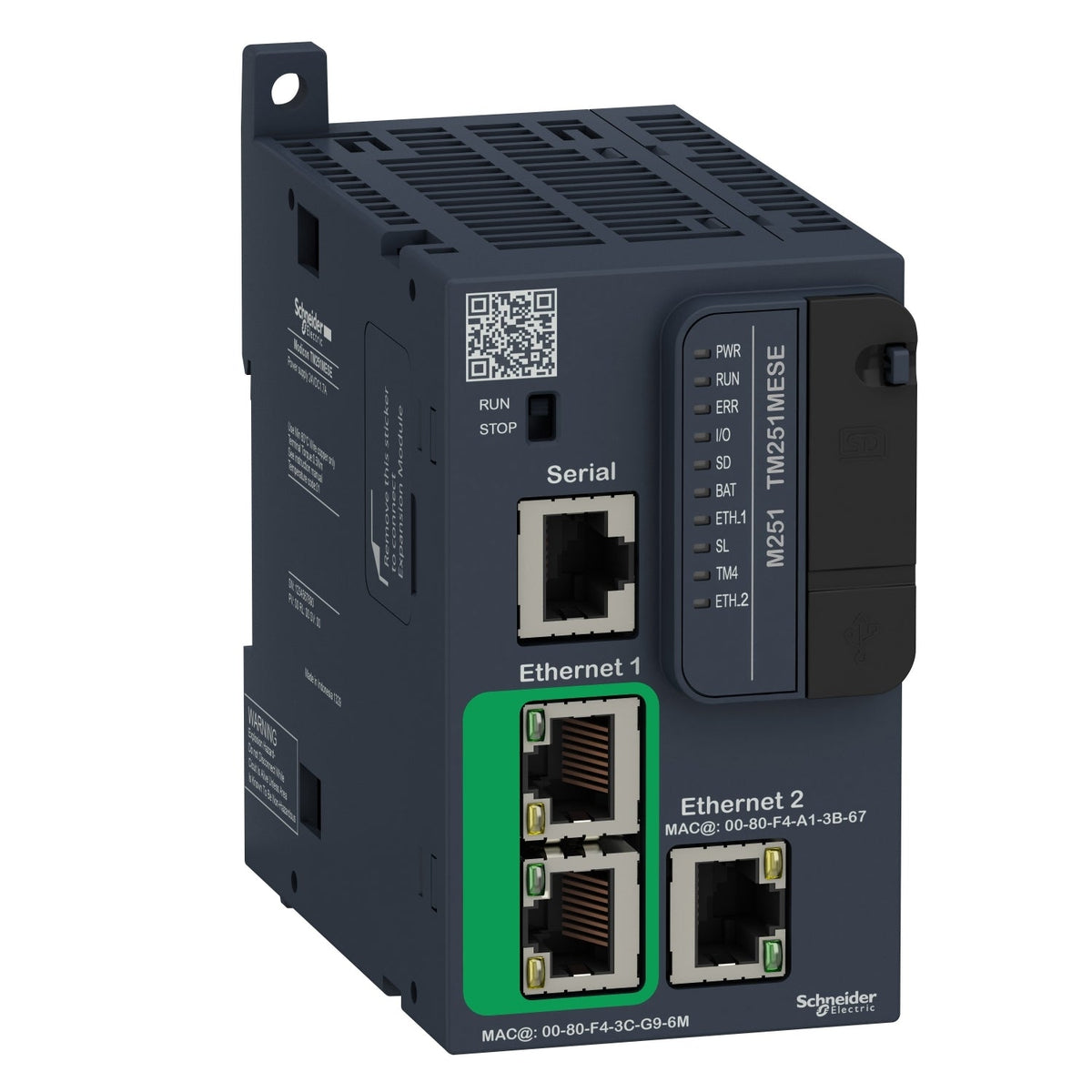

The Schneider Electric TM251MESE is a Modicon M251 programmable logic controller with two independent Ethernet ports (Ethernet 1 and Ethernet 2), supporting up to 7 local or 14 remote I/O expansion modules. Powered by 24 V DC with a 50 A inrush current and 32.6-40.4 W consumption, it suits applications needing network segregation — one Ethernet port for machine control, the other for plant-level supervision.
Choose the TM251MESE over a CANopen-equipped variant when the machine needs two separate Ethernet networks instead of a fieldbus — Ethernet 1 handles EtherNet/IP and Modbus TCP device control while Ethernet 2 can be dedicated to plant supervision or a second protocol stack, avoiding network congestion on a single port. Its 7 local / 14 remote expansion-module ceiling matches the CANopen variant, so the choice comes down to fieldbus versus dual-Ethernet architecture.
| Range of Product | Modicon M251 |
|---|---|
| Product or Component Type | Logic controller |
| [Us] rated supply voltage | 24 V DC |
| Maximum number of I/O expansion module | 7 (local I/O-Architecture), 14 (remote I/O-Architecture) |
|---|---|
| Supply voltage limits | 20.4…28.8 V |
| Inrush current | 50 A |
| Power consumption in W | 32.6…40.4 W with max number of I/O expansion module) |
| Memory capacity | 64 MB system memory RAM |
| Data backed up | 128 MB built-in flash memory backup of user programs |
| Data storage equipment | <= 16 GB SD card optional) |
| Battery type | BR2032 lithium non-rechargeable 4 year(s) |
| Backup time | 2 years 77 °F (25 °C) |
| Execution time for 1 KInstruction | 0.3 ms event and periodic task, 0.7 ms other instruction |
| Application structure | 4 cyclic master tasks, 8 event tasks, 3 cyclic master tasks + 1 freewheeling task, 8 external event tasks |
| Realtime clock | With |
| Clock drift | <= 60 s/month 77 °F (25 °C) |
| Integrated connection type | USB port mini B USB 2.0, Non isolated serial link serial RJ45 RS232/RS485, Dual-port Ethernet 1 RJ45, Ethernet port Ethernet 2 RJ45 |
| Supply | Serial)serial link supply 5 V, <200 mA |
| Transmission rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) 49.2 ft (15 m) RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) 9.8 ft (3 m) RS232, 480 Mbit/s 9.8 ft (3 m) USB |
| Communication port protocol | USB port USB - SoMachine-Network, Non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network |
| Port Ethernet | Ethernet 1 10BASE-T/100BASE-TX - 2 copper cable, Ethernet 2 10BASE-T/100BASE-TX - 1 copper cable |
| Web services | Web server |
| Communication service | Downloading, IEC VAR ACCESS, Modbus TCP client, Modbus TCP server, Modbus TCP slave device, Monitoring, NGVL, Programming, Updating firmware, SMS notifications, DHCP client Eth1), DHCP server Eth2), Ethernet/IP originator Eth2), Ethernet/IP target Eth1, Eth2), Ethernet/IP scanner Eth2), Modbus TCP I/O Scanner and Messaging Eth2), FDR, FTP client/server, SNMP client/server, SQL client, Send and receive email from the controller based on TCP/UDP library, Web server (WebVisu & XWeb system), OPC UA server, DNS client |
| Maximum number of connections | 8 Modbus server, 8 Modbus client, 16 Ethernet/IP target, 4 FTP server, 10 web server, 8 SoMachine protocol |
| Number of server device(s) | 16 EtherNet/IP, 64 Modbus TCP |
| Cycle time | 10 ms 16 EtherNet/IP, 64 ms 64 Modbus TCP |
| Local signalling | 1 LED (green) for PWR, 1 LED (green) for RUN, 1 LED (red) for module error (ERR), 1 LED (red) for I/O error (I/O), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL, 1 LED (red) for bus fault on TM4 (TM4), 1 LED (green) for Ethernet activity (ETH1), 1 LED (green) for Ethernet activity (ETH2) |
| Electrical connection | removable screw terminal block power supply pitch 5.08 mm) |
| Insulation | Non-insulated between supply and internal logic, Between supply and ground 500 V AC |
| Marking | CE |
| Surge withstand | 1 kV shielded cable common mode IEC 61000-4-5, 1 kV power lines common mode IEC 61000-4-5, 0.5 kV power lines differential mode IEC 61000-4-5 |
| Mounting support | Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit |
| Height | 3.5 in (90 mm) |
| Depth | 3.7 in (95 mm) |
| Width | 2.1 in (54 mm) |
| Net Weight | 0.49 lb(US) (0.22 kg) |
| Standards | ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, IEC 61131-2:2007, Marine specification (LR, ABS, DNV, GL), UL 508 |
|---|---|
| Product Certifications | cULus, CE, UKCA, DNV-GL, ABS, LR |
| Resistance to electrostatic discharge | 8 kV in air IEC 61000-4-2, 4 kV on contact IEC 61000-4-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3, 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3, 0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 power lines), 1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link) |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) |
| Electromagnetic emission | Conducted emissions 120...69 dBµV/m QP power lines)10…150 kHz IEC 55011, Conducted emissions 63 dBμV/m QP power lines)1.5…30 MHz IEC 55011, Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz IEC 55011, Conducted emissions 79...63 dBμV/m QP power lines)150…1500 kHz IEC 55011, Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz IEC 55011 |
| Immunity to microbreaks | 10 ms |
| Ambient air temperature for operation | 14…95 °F (-10…35 °C) vertical installation), 14…131 °F (-10…55 °C) horizontal installation) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative humidity | 10…95 %, without condensation in operation), 10…95 %, without condensation in storage) |
| IP degree of protection | IP20 with protective cover in place |
| Pollution degree | 2 |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Storage altitude | 0…9842.5 ft (0…3000 m) |
| Vibration resistance | 3.5 mm 5…8.4 Hz symmetrical rail, 3 gn 8.4…150 Hz symmetrical rail, 3.5 mm 5…8.4 Hz panel mounting, 3 gn 8.4…150 Hz panel mounting |
| Shock resistance | 15 gn 11 ms |
| Part number | TM251MESE |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480648878 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.22 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
