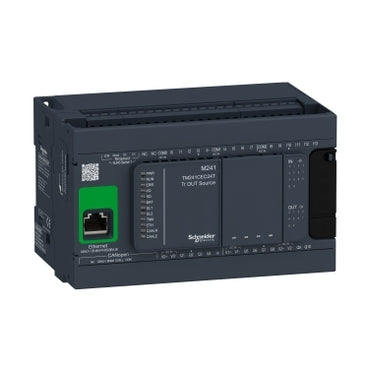

The Schneider Electric TM241CEC24T is a Modicon M241 logic controller with 24 discrete I/O - 14 inputs (8 fast) and 10 PNP transistor outputs (4 fast) - running from a 24 V DC supply. It adds embedded Ethernet (Modbus TCP, EtherNet/IP) and a CANopen master port alongside USB and dual RS232/RS485 serial links.
The TM241CEC24T combines an embedded Ethernet port with a CANopen master port, so it fits machines needing both a plant-network connection (Modbus TCP, EtherNet/IP) and a CANopen fieldbus for distributed drives or I/O in the same controller. Its 10 PNP transistor outputs (4 fast, up to 100 kHz PLS) suit sinking-logic field wiring and basic pulse-train positioning, and the CANopen port runs up to 1000 kbit/s over short distances or down to 20 kbit/s over 2500 m, so network speed can be traded for cable run length as the machine layout requires.
Compact-machine automation combining plant-network connectivity and a CANopen fieldbus - multi-axis packaging or material-handling machines where distributed drives or remote I/O communicate over CANopen while the controller reports to a plant SCADA or MES over Ethernet.
| Range of Product | Modicon M241 |
|---|---|
| Product or Component Type | Logic controller |
| [Us] rated supply voltage | 24 V DC |
| Discrete input number | 14, discrete input 8 fast input IEC 61131-2 Type 1 |
| Discrete output type | Transistor |
| Discrete output number | 10 transistor 4 fast output |
| Discrete output voltage | 24 V DC transistor output |
| Discrete output current | 0.5 A transistor output Q0...Q9), 0.1 A fast output (PTO mode) Q0...Q3) |
| Discrete I/O number | 24 |
|---|---|
| Maximum number of I/O expansion module | 7 (local I/O-Architecture), 14 (remote I/O-Architecture) |
| Supply voltage limits | 20.4…28.8 V |
| Inrush current | 50 A |
| Power consumption in W | 32.6…40.4 W with max number of I/O expansion module) |
| Discrete input logic | Sink or source |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Voltage state 1 guaranteed | >= 15 V input |
| Voltage state 0 guaranteed | <= 5 V input |
| Discrete input current | 5 mA input, 10.7 mA fast input |
| Input impedance | 4.7 kOhm input, 2.81 kOhm fast input |
| Response time | 50 µs turn-on, I0...I13 input, 50 µs turn-off, I0...I13 input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 34 µs turn-on, Q0...Q9 output, <= 250 µs turn-off, Q0...Q9 output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output |
| Configurable filtering time | 1 s fast input, 12 ms fast input, 0 ms input, 1 ms input, 4 ms input, 12 ms input |
| Discrete output logic | Positive logic (source) |
| Output voltage limits | 30 V DC |
| Maximum current per output common | 2 A Q0...Q3 fast output, 2 A Q4...Q7 output, 1 A Q8...Q9 output |
| Maximum output frequency | 20 kHz fast output (PWM mode), 100 kHz fast output (PLS mode), 1 kHz output |
| Accuracy | +/- 0.1 % 0.02…0.1 kHz fast output, +/- 1 % 0.1…1 kHz fast output |
| Maximum leakage current | 5 µA output |
| Maximum voltage drop | <1 V |
| Maximum tungsten load | <2.4 W |
| Protection type | Short-circuit protection, Short-circuit and overload protection with automatic reset, Reverse polarity protection fast output |
| Reset time | 10 ms automatic reset output, 12 s automatic reset fast output |
| Memory capacity | 64 MB system memory RAM |
| Data backed up | 128 MB built-in flash memory backup of user programs |
| Data storage equipment | <= 16 GB SD card optional) |
| Battery type | BR2032 lithium non-rechargeable 4 year(s) |
| Backup time | 2 years 77 °F (25 °C) |
| Execution time for 1 KInstruction | 0.3 ms event and periodic task, 0.7 ms other instruction |
| Application structure | 8 external event tasks, 4 cyclic master tasks, 3 cyclic master tasks + 1 freewheeling task, 8 event tasks |
| Realtime clock | With |
| Clock drift | <= 60 s/month 77 °F (25 °C) |
| Positioning functions | PTO 4 100 kHz), PTO 4 transistor output 1 kHz) |
| Counting input number | 4 fast input (HSC mode) 200 kHz, 14 standard input 1 kHz |
| Control signal type | A/B 100 kHz fast input (HSC mode), Pulse/direction 200 kHz fast input (HSC mode), Single phase 200 kHz fast input (HSC mode) |
| Integrated connection type | Non isolated serial link serial 1 RJ45 RS232/RS485, Non isolated serial link serial 2 removable screw terminal block RS485, USB port mini B USB 2.0, Ethernet RJ45, CANopen J1939 male SUB-D 9 |
| Supply | Serial 1)serial link supply 5 V, <200 mA |
| Transmission rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) 49.2 ft (15 m) RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) 9.8 ft (3 m) RS232, 480 Mbit/s 9.8 ft (3 m) USB, 10/100 Mbit/s Ethernet, 1000 kbit/s 65.6 ft (20 m) CANopen, 800 kbit/s 131.2 ft (40 m) CANopen, 500 kbit/s 328.08 ft (100 m) CANopen, 250 kbit/s 820.2 ft (250 m) CANopen, 125 kbit/s 1640.4 ft (500 m) CANopen, 50 kbit/s 3280.8 ft (1000 m) CANopen, 20 kbit/s 8202.10 ft (2500 m) CANopen |
| Communication port protocol | Non isolated serial link Modbus master/slave |
| Port Ethernet | 10BASE-T/100BASE-TX - 1 copper cable |
| ethernet services | SNMP client/server, Modbus TCP slave device, Modbus TCP server, Modbus TCP client, IEC VAR ACCESS, FTP client/server, SQL client, DHCP client, Ethernet/IP adapter, Send and receive email from the controller based on TCP/UDP library, Web server (WebVisu & XWeb system), OPC UA server, DNS client |
| Local signalling | 1 LED (green) for PWR, 1 LED (green) for RUN, 1 LED (red) for module error (ERR), 1 LED (red) for I/O error (I/O), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL1, 1 LED (green) for SL2, 1 LED (red) for bus fault on TM4 (TM4), 1 LED per channel (green) for I/O state, 1 LED (green) for Ethernet port activity, 1 LED (green) for CANopen run, 1 LED (green) for CANopen error |
| Electrical connection | removable screw terminal block for inputs and outputs pitch 5.08 mm), removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm) |
| Maximum cable distance between devices | Unshielded cable <164.04 ft (50 m) input, Shielded cable <32.8 ft (10 m) fast input, Unshielded cable <164.04 ft (50 m) output, Shielded cable <9.8 ft (3 m) fast output |
| Insulation | Between supply and internal logic 500 V AC, Non-insulated between supply and ground, Between input and internal logic 500 V AC, Non-insulated between inputs, Between fast input and internal logic 500 V AC, Between output and internal logic 500 V AC, Non-insulated between outputs, Between fast output and internal logic 500 V AC |
| Marking | CE |
| Surge withstand | 1 kV power lines (DC) common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-5, 0.5 kV power lines (DC) differential mode IEC 61000-4-5, 1 kV relay output differential mode IEC 61000-4-5, 1 kV input common mode IEC 61000-4-5, 1 kV transistor output common mode IEC 61000-4-5 |
| Web services | Web server |
| Maximum number of connections | 16 Ethernet/IP device, 8 Modbus server |
| CANopen feature profile | DS 301 V4.02, DR 303-1 |
| Number of server device(s) | 63 CANopen |
| Mounting support | Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit |
| Height | 3.5 in (90 mm) |
| Depth | 3.7 in (95 mm) |
| Width | 5.9 in (150 mm) |
| Net Weight | 1.17 lb(US) (0.53 kg) |
| Standards | ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, IEC 61131-2:2007, Marine specification (LR, ABS, DNV, GL), UL 508 |
|---|---|
| Product Certifications | RCM, cULus, CE, UKCA, DNV-GL, ABS, LR |
| Resistance to electrostatic discharge | 8 kV in air IEC 61000-4-2, 4 kV on contact IEC 61000-4-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3, 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3, 0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 power lines), 1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link), 1 kV IEC 61000-4-4 input), 1 kV IEC 61000-4-4 transistor output) |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) |
| Electromagnetic emission | Conducted emissions 120...69 dBµV/m QP power lines)10…150 kHz IEC 55011, Conducted emissions 63 dBμV/m QP power lines)1.5…30 MHz IEC 55011, Radiated emissions 40 dBμV/m QP class A30…230 MHz IEC 55011, Conducted emissions 79...63 dBμV/m QP power lines)150…1500 kHz IEC 55011, Radiated emissions 47 dBμV/m QP class A230…1000 MHz IEC 55011 |
| Immunity to microbreaks | 10 ms |
| Ambient air temperature for operation | 14…122 °F (-10…50 °C) vertical installation), 14…131 °F (-10…55 °C) horizontal installation) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative humidity | 10…95 %, without condensation in operation), 10…95 %, without condensation in storage) |
| IP degree of protection | IP20 with protective cover in place |
| Pollution degree | 2 |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Storage altitude | 0…9842.5 ft (0…3000 m) |
| Vibration resistance | 3.5 mm 5…8.4 Hz symmetrical rail, 3 gn 8.4…150 Hz symmetrical rail, 3.5 mm 5…8.4 Hz panel mounting, 3 gn 8.4…150 Hz panel mounting |
| Shock resistance | 15 gn 11 ms |
| Part number | TM241CEC24T |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480611117 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.53 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for TM241CEC24T is 853710.
The EAN (GTIN) of TM241CEC24T is 3606480611117.
TM241CEC24T ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
