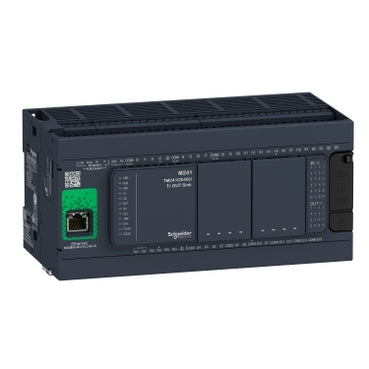

Schneider Electric TM241CE40R Modicon M241 40-IO Relay Transistor Ethernet PLC

The Schneider Electric TM241CE40R is a Modicon M241 logic controller with 40 discrete I/O — 24 inputs (8 fast), 12 relay outputs (2 A), and 4 transistor outputs (4 fast, 0.5 A) — powered from 100-240 V AC. It runs on 64 MB system memory with a 128 MB flash backup and supports up to a 16 GB SD card.

Technical Specifications

Certifications & Standards

• CE
• RCM
• cULus
• UKCA
• DNV-GL
• ABS
• LR
• ANSI/ISA 12-12-01
• CSA C22.2 No. 142
• CSA C22.2 No. 213
• IEC 61131-2:2007
• Marine Specification (LR, ABS, DNV, GL)
• UL 508

Selection Notes

Mixing 12 relay points (for AC or DC loads up to 250 V AC) with 4 fast transistor outputs, the TM241CE40R covers both general-purpose switching and 100 kHz positioning outputs on a single 40-point controller — unlike the all-transistor TM241CE40T, it can drive AC loads directly. Its 100-240 V AC universal supply plus a built-in 24 V DC 400 mA sensor supply cover a mixed-voltage panel without an add-on power supply module.

Applications

Mixed relay/transistor discrete switching on a universal-voltage panel needing both general I/O and limited high-speed positioning outputs.
