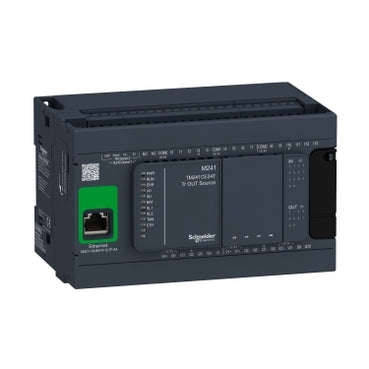

Schneider Electric TM241CE24T Modicon M241 24-IO 24V DC Transistor Ethernet PLC

The Schneider Electric TM241CE24T is a Modicon M241 logic controller with 24 discrete I/O — 14 inputs (8 fast) and 10 transistor outputs (4 fast) — powered from 24 V DC. It adds a second RS485 serial port to the M221's connectivity, runs on 64 MB system memory with a 128 MB flash backup, and supports up to a 16 GB SD card.

Technical Specifications

Certifications & Standards

• CE
• RCM
• cULus
• UKCA
• DNV-GL
• ABS
• LR
• ANSI/ISA 12-12-01
• CSA C22.2 No. 142
• CSA C22.2 No. 213
• IEC 61131-2:2007
• Marine Specification (LR, ABS, DNV, GL)
• UL 508

Selection Notes

The TM241CE24T's second serial port (RS485 on a removable terminal block) and OPC UA/SQL-client Ethernet services go beyond the M221's networking, making it the choice when a machine needs a second field-device link alongside Ethernet, or to push data to a database or SCADA historian directly from the controller. Its 8 fast inputs and 4 fast transistor outputs at up to 100 kHz PTO cover basic positioning tasks without a separate motion controller.

Applications

Compact machine control needing dual serial connectivity, OPC UA/SQL reporting, and basic PTO-based positioning at speeds up to 100 kHz.
