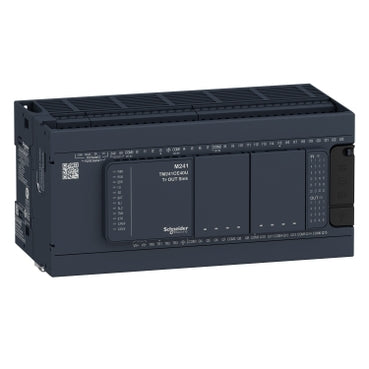

The Schneider Electric TM241C40R is a Modicon M241 logic controller with 40 discrete I/O — 24 inputs (8 fast) and a mixed 12-relay/4-transistor (4 fast) output stage — supplied from 100-240 V AC. Relay outputs switch up to 2 A at 5-250 V AC or 5-125 V DC, giving the highest I/O count in the M241 compact range for machines mixing AC field devices with fast-output motion.
The TM241C40R scales the M241's relay/transistor mix to 40 I/O, giving 12 relay outputs (5-250 V AC or 5-125 V DC, up to 2 A) for direct AC-load switching alongside 4 fast transistor outputs for a single positioning axis — pick it over the 24 I/O relay model when the machine has more discrete AC loads (valves, contactors, lamps) than fast-output axes.
| Range of Product | Modicon M241 |
|---|---|
| Product or Component Type | Logic controller |
| [Us] rated supply voltage | 100...240 V AC |
| Discrete input number | 24, discrete input 8 fast input IEC 61131-2 Type 1 |
| Discrete output type | Relay, Transistor |
| Discrete output number | 4 transistor 4 fast output, 12 relay |
| Discrete output voltage | 5...125 V DC relay output, 5...250 V AC relay output, 24 V DC transistor output |
| Discrete output current | 0.1 A fast output (PTO mode) TR0...TR3), 2 A relay output Q4...Q15), 0.5 A transistor output TR0...TR3) |
| Discrete I/O number | 40 |
|---|---|
| Maximum number of I/O expansion module | 7 (local I/O-Architecture), 14 (remote I/O-Architecture) |
| Supply voltage limits | 85…264 V |
| Network Frequency | 50/60 Hz |
| Discrete input logic | Sink or source |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Voltage state 1 guaranteed | >= 15 V input |
| Voltage state 0 guaranteed | <= 5 V input |
| Discrete input current | 7 mA input |
| Input impedance | 4.7 kOhm input |
| Response time | 50 µs turn-on, I0...I15 input |
| Configurable filtering time | 1 s fast input |
| Discrete output logic | Positive logic (source) |
| Output voltage limits | 125 V DC relay output, 30 V DC transistor output, 277 V AC relay output |
| Maximum output frequency | 1 kHz transistor output, 20 kHz fast output (PWM mode), 100 kHz fast output (PLS mode) |
| Accuracy | +/- 0.1 % 0.02…0.1 kHz fast output |
| Protection type | Short-circuit protection transistor output, Short-circuit and overload protection with automatic reset transistor output, Reverse polarity protection transistor output, Without protection relay output |
| Reset time | 10 ms automatic reset output, 12 s automatic reset fast output |
| Memory capacity | 64 MB system memory RAM |
| Data backed up | 128 MB built-in flash memory backup of user programs |
| Data storage equipment | <= 16 GB SD card optional) |
| Battery type | BR2032 lithium non-rechargeable 4 year(s) |
| Backup time | 2 years 77 °F (25 °C) |
| Execution time for 1 KInstruction | 0.3 ms event and periodic task, 0.7 ms other instruction |
| Application structure | 4 cyclic master tasks, 3 cyclic master tasks + 1 freewheeling task, 8 external event tasks, 8 event tasks |
| Realtime clock | With |
| Clock drift | <= 60 s/month 77 °F (25 °C) |
| Positioning functions | PTO 4 100 kHz) |
| Counting input number | 4 fast input (HSC mode) 200 kHz, 14 standard input 1 kHz |
| Control signal type | A/B 100 kHz fast input (HSC mode), Pulse/direction 200 kHz fast input (HSC mode), Single phase 200 kHz fast input (HSC mode) |
| Integrated connection type | Non isolated serial link serial 1 RJ45 RS232/RS485, Non isolated serial link serial 2 removable screw terminal block RS485, USB port mini B USB 2.0 |
| Supply | Serial 1)serial link supply 5 V, <200 mA |
| Transmission rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) 49.2 ft (15 m) RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) 9.8 ft (3 m) RS232, 480 Mbit/s 9.8 ft (3 m) USB |
| Communication port protocol | Non isolated serial link Modbus master/slave |
| Local signalling | 1 LED (green) for PWR, 1 LED (green) for RUN, 1 LED (red) for module error (ERR), 1 LED (red) for I/O error (I/O), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL1, 1 LED (green) for SL2, 1 LED (red) for bus fault on TM4 (TM4), 1 LED per channel (green) for I/O state |
| Electrical connection | removable screw terminal block for inputs and outputs pitch 5.08 mm), removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm) |
| Maximum cable distance between devices | Unshielded cable <164.04 ft (50 m) input, Shielded cable <32.8 ft (10 m) fast input, Unshielded cable <164.04 ft (50 m) output, Shielded cable <9.8 ft (3 m) fast output |
| Insulation | Between supply and internal logic 500 V AC, Non-insulated between supply and ground |
| Marking | CE |
| Sensor power supply | 24 V DC 400 mA supplied by the controller |
| Surge withstand | 2 kV power lines (AC) common mode IEC 61000-4-5, 2 kV relay output common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-5, 1 kV power lines (AC) differential mode IEC 61000-4-5, 1 kV relay output differential mode IEC 61000-4-5, 1 kV input common mode IEC 61000-4-5, 1 kV transistor output common mode IEC 61000-4-5 |
| Mounting support | Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit |
| Height | 3.5 in (90 mm) |
| Depth | 3.7 in (95 mm) |
| Width | 7.5 in (190 mm) |
| Net Weight | 1.37 lb(US) (0.62 kg) |
| Standards | ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, IEC 61131-2:2007, Marine specification (LR, ABS, DNV, GL), UL 508 |
|---|---|
| Product Certifications | RCM, cULus, CE, UKCA, DNV-GL, ABS, LR |
| Resistance to electrostatic discharge | 8 kV in air IEC 61000-4-2, 4 kV on contact IEC 61000-4-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3, 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3, 0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 power lines), 2 kV IEC 61000-4-4 relay output), 1 kV IEC 61000-4-4 serial link), 1 kV IEC 61000-4-4 input), 1 kV IEC 61000-4-4 transistor output) |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) |
| Electromagnetic emission | Conducted emissions 120...69 dBµV/m QP power lines)10…150 kHz IEC 55011, Conducted emissions 63 dBμV/m QP power lines)1.5…30 MHz IEC 55011, Conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines)0.15…0.5 MHz IEC 55011, Conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines)0.5…300 MHz IEC 55011, Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz IEC 55011, Conducted emissions 79...63 dBμV/m QP power lines)150…1500 kHz IEC 55011, Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz IEC 55011 |
| Immunity to microbreaks | 10 ms |
| Ambient air temperature for operation | 14…122 °F (-10…50 °C) vertical installation), 14…131 °F (-10…55 °C) horizontal installation) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative humidity | 10…95 %, without condensation in operation), 10…95 %, without condensation in storage) |
| IP degree of protection | IP20 with protective cover in place |
| Pollution degree | 2 |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Storage altitude | 0…9842.5 ft (0…3000 m) |
| Vibration resistance | 3.5 mm 5…8.4 Hz symmetrical rail, 3 gn 8.4…150 Hz symmetrical rail, 3.5 mm 5…8.4 Hz panel mounting, 3 gn 8.4…150 Hz panel mounting |
| Shock resistance | 15 gn 11 ms |
| Part number | TM241C40R |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480648823 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.62 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated operational voltage of TM241C40R is 100–240 V AC.
The tariff (HS) code on file for TM241C40R is 853710.
The EAN (GTIN) of TM241C40R is 3606480648823.
TM241C40R ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
