Schneider Electric TM221M16T Modicon M221 Book 16 I/O Transistor Logic Controller

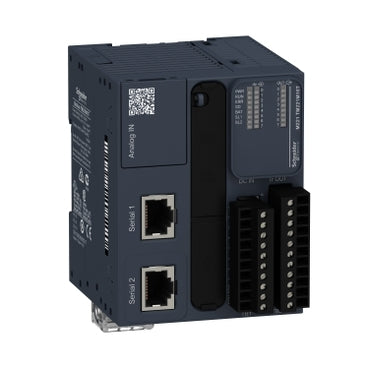

The Schneider Electric TM221M16T is a Modicon M221 Book-format logic controller with 16 discrete I/O — 8 inputs (4 fast) and 8 PNP transistor outputs (2 fast) — in a compact 70 x 70 x 90 mm housing. Supplied from 24 V DC, it switches up to 0.5 A per output and supports PTO pulse-train outputs up to 100 kHz for simple positioning tasks.

Technical Specifications

Certifications & Standards

• CE
• RCM
• cULus
• ABS
• LR
• DNV-GL
• EAC
• UKCA
• cULus HazLoc
• IEC 61131-2
• UL 508
• CAN/CSA C22.2 No. 213
• IACS E10
• ANSI/ISA 12-12-01

Selection Notes

The TM221M16T's PNP transistor outputs switch fast enough (up to 100 kHz on Q0-Q1 in PTO/PWM/PLS mode) for basic single-axis positioning, which the relay-output Book variant cannot do. Its 0.5 A per-channel rating suits PLC-driven solenoids and 24 V indicator loads rather than line-voltage switching, where the relay-output model is the better fit. The four fast inputs (I0, I1, I6, I7) respond in 5 microseconds, fast enough to catch a high-speed counter pulse or an encoder edge that a standard 35-microsecond input channel would miss.
