Part number
TM221C40R
$426.31 On request Dispatch — · From TürkiyeGet a Quote
Modicon M221

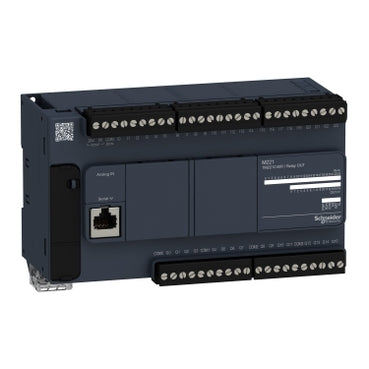

Schneider Electric TM221C40R Modicon M221 40 I/O 24DI 16DO Relay Programmable Logic Controller

Modicon M221 logic controller, 40 I/O (24 DI, 16 relay DO, 2 A), 100-240 V AC, USB/RS485.

Rated operational voltage
100–240 V AC
Communication
USB, RS232/RS485 (Modbus RTU/ASCII)
EAN
3606480648731
Description

About the TM221C40R

The Schneider Electric TM221C40R is the largest-I/O Modicon M221 logic controller in the relay family, with 40 discrete I/O - 24 discrete inputs and 16 relay outputs rated 2 A - running from a 100-240 V AC supply. It provides 2 analog inputs, 4 fast counting inputs, and USB plus RS232/RS485 serial ports.

Certifications & Standards

  • CE
  • RCM
  • LR
  • cULus
  • DNV-GL
  • ABS
  • EAC
  • UKCA
  • cULus HazLoc
  • IEC 61131-2
  • UL 508
  • CAN/CSA C22.2 No. 213
  • IACS E10
  • ANSI/ISA 12-12-01

Selection Notes

The TM221C40R is the top of the relay-output M221 range, stepping up from the 24 I/O C24R when a hardwired panel needs 24 DI / 16 relay DO on a single base unit rather than adding expansion modules. It shares the same 7 local / 14 remote expansion capacity as the C24R, so the extra headroom comes from the base unit's I/O count, not more expansion slots. As with the smaller relay variants, each output switches AC contactor coils or pilot devices directly, at the cost of the 100 kHz pulse-train outputs only the transistor-output variants provide.

Applications

Large hardwired relay-logic panels - multi-zone conveyor systems, packaging lines, and machine control panels needing 40 discrete points switching AC loads directly on one base controller.

Specification

Full specification

100 values · Last verified 30 Oct 2026

Main 9

Range of Product Modicon M221
Product or Component Type Logic controller
[Us] rated supply voltage 100...240 V AC
Discrete input number 24, discrete input IEC 61131-2 Type 1
Analogue input number 2 0...10 V
Discrete output type Relay normally open
Discrete output number 16 relay
Discrete output voltage 5...125 V DC, 5...250 V AC
Discrete output current 2 A

Complementary 58

Discrete I/O number 40
Maximum number of I/O expansion module 7 (local I/O-Architecture), 14 (remote I/O-Architecture)
Supply voltage limits 85…264 V
Network Frequency 50/60 Hz
Inrush current 40 A
Maximum power consumption in VA 67 VA 100...240 V with max number of I/O expansion module, 37 VA 100...240 V without I/O expansion module
Power supply output current 0.52 A 5 V expansion bus, 0.24 A 24 V expansion bus
Discrete input logic Sink or source (positive/negative)
Discrete input voltage 24 V
Discrete input voltage type DC
Analogue input resolution 10 bits
LSB value 10 mV
Conversion time 1 ms per channel + 1 controller cycle time analog input
Permitted overload on inputs +/- 30 V DC 5 min maximum)analog input, +/- 13 V DC permanent)analog input
Voltage state 1 guaranteed >= 15 V input
Voltage state 0 guaranteed <= 5 V input
Discrete input current 7 mA discrete input, 5 mA fast input
Input impedance 3.4 kOhm discrete input, 100 kOhm analog input, 4.9 kOhm fast input
Response time 35 µs turn-off, I2...I5 input, 10 ms turn-on output, 10 ms turn-off output, 5 µs turn-on, I0, I1, I6, I7 fast input, 35 µs turn-on, other terminals input, 5 µs turn-off, I0, I1, I6, I7 fast input, 100 µs turn-off, other terminals input
Configurable filtering time 0 ms input, 3 ms input, 12 ms input
Output voltage limits 125 V DC, 277 V AC
Maximum current per output common 7 A
Absolute accuracy error +/- 1 % of full scale analog input
Electrical durability 100000 cycles AC-12, 120 V, 240 VA, resistive, 100000 cycles AC-12, 240 V, 480 VA, resistive, 300000 cycles AC-12, 120 V, 80 VA, resistive, 300000 cycles AC-12, 240 V, 160 VA, resistive, 100000 cycles AC-15, cos phi = 0.35, 120 V, 60 VA, inductive, 100000 cycles AC-15, cos phi = 0.35, 240 V, 120 VA, inductive, 300000 cycles AC-15, cos phi = 0.35, 120 V, 18 VA, inductive, 300000 cycles AC-15, cos phi = 0.35, 240 V, 36 VA, inductive, 100000 cycles AC-14, cos phi = 0.7, 120 V, 120 VA, inductive, 100000 cycles AC-14, cos phi = 0.7, 240 V, 240 VA, inductive, 300000 cycles AC-14, cos phi = 0.7, 120 V, 36 VA, inductive, 300000 cycles AC-14, cos phi = 0.7, 240 V, 72 VA, inductive, 100000 cycles DC-12, 24 V, 48 W, resistive, 300000 cycles DC-12, 24 V, 16 W, resistive, 100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms), 300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms)
Switching frequency 20 switching operations/minute with maximum load
Mechanical durability 20000000 cycles relay output
Minimum load 1 mA 5 V DC relay output
Protection type Without protection 5 A
Reset time 1 s
Memory capacity 256 kB user application and data RAM 10000 instructions, 256 kB internal variables RAM
Data backed up 256 kB built-in flash memory backup of application and data
Data storage equipment 2 GB SD card optional)
Battery type BR2032 or CR2032X lithium non-rechargeable
Backup time 1 year 77 °F (25 °C) by interruption of power supply)
Execution time for 1 KInstruction 0.3 ms event and periodic task
Execution time per instruction 0.2 µs Boolean
Exct time for event task 60 µs response time
Maximum size of object areas 512 %M memory bits, 512 %KW constant words, 8000 %MW memory words, 255 %C counters, 255 %TM timers
Realtime clock With
Clock drift <= 30 s/month 77 °F (25 °C)
Regulation loop Adjustable PID regulator up to 14 simultaneous loops
Counting input number 4 fast input (HSC mode) 100 kHz 32 bits
counter function Single phase, Pulse/direction, A/B
Integrated connection type USB port mini B USB 2.0, Non isolated serial link serial 1 RJ45 RS485, Non isolated serial link serial 2 RJ45 RS232/RS485
Supply Serial)serial link supply 5 V, <200 mA
Transmission rate 1.2...115.2 kbit/s (115.2 kbit/s by default) 49.2 ft (15 m) RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) 9.8 ft (3 m) RS232, 480 Mbit/s USB
Communication port protocol USB port USB - SoMachine-Network, Non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
Local signalling 1 LED (green) for PWR, 1 LED (green) for RUN, 1 LED (red) for module error (ERR), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL1, 1 LED (green) for SL2, 1 LED per channel (green) for I/O state
Electrical connection removable screw terminal block for inputs, removable screw terminal block for outputs, terminal block, 3 for connecting the 24 V DC power supply, connector, 4 for analogue inputs, Mini B USB 2.0 connector for a programming terminal
Maximum cable distance between devices Shielded cable <32.8 ft (10 m) fast input, Unshielded cable <98.4 ft (30 m) output, Unshielded cable <98.4 ft (30 m) digital input, Unshielded cable <3.3 ft (1 m) analog input
Insulation Between input and internal logic 500 V AC, Non-insulated between analogue input and internal logic, Non-insulated between analogue inputs, Between supply and ground 1500 V AC, Between sensor power supply and ground 500 V AC, Between input and ground 500 V AC, Between output and ground 1500 V AC, Between supply and internal logic 2300 V AC, Between sensor power supply and internal logic 500 V AC, Between output and internal logic 2300 V AC, Between Ethernet terminal and internal logic 500 V AC, Between supply and sensor power supply 2300 V AC
Marking CE
Sensor power supply 24 V DC 250 mA supplied by the controller
Mounting support Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Height 3.5 in (90 mm)
Depth 2.8 in (70 mm)
Width 6.3 in (160 mm)
Net Weight 1.005 lb(US) (0.456 kg)

Environment 20

Standards IEC 61131-2, UL 508, CAN/CSA C22.2 No. 213, IACS E10, ANSI/ISA 12-12-01
Product Certifications RCM, LR, cULus, DNV-GL, ABS, EAC, CE, UKCA, cULus HazLoc
Environmental characteristic Ordinary and hazardous location
Resistance to electrostatic discharge 8 kV in air IEC 61000-4-2, 4 kV on contact IEC 61000-4-2
Resistance to electromagnetic fields 9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3, 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3, 0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3
Resistance to magnetic fields 98.4 A/m (30 A/m) 50/60 Hz IEC 61000-4-8
Resistance to fast transients 2 kV IEC 61000-4-4 power lines), 2 kV IEC 61000-4-4 relay output), 1 kV IEC 61000-4-4 I/O), 1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link)
Surge withstand 2 kV power lines (AC) common mode IEC 61000-4-5, 2 kV relay output common mode IEC 61000-4-5, 1 kV I/O common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-5, 0.5 kV power lines (DC) differential mode IEC 61000-4-5, 1 kV power lines (AC) differential mode IEC 61000-4-5, 1 kV relay output differential mode IEC 61000-4-5, 0.5 kV power lines (DC) common mode IEC 61000-4-5
Resistance to conducted disturbances 10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Electromagnetic emission Conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15…0.5 MHz IEC 55011, Conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5…300 MHz IEC 55011, Conducted emissions 120...69 dBµV/m QP power lines)10…150 kHz IEC 55011, Conducted emissions 63 dBμV/m QP power lines)1.5…30 MHz IEC 55011, Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz IEC 55011, Conducted emissions 79...63 dBμV/m QP power lines)150…1500 kHz IEC 55011, Radiated emissions 47 dBμV/m QP class A 10 m)200…1000 MHz IEC 55011
Immunity to microbreaks 10 ms
Ambient air temperature for operation 14…131 °F (-10…55 °C) horizontal installation), 14…95 °F (-10…35 °C) vertical installation)
Ambient Air Temperature for Storage -13…158 °F (-25…70 °C)
Relative humidity 10…95 %, without condensation in operation), 10…95 %, without condensation in storage)
IP degree of protection IP20 with protective cover in place
Pollution degree <= 2
Operating altitude 0...6561.68 ft (0...2000 m)
Storage altitude 0…9842.5 ft (0…3000 m)
Vibration resistance 3.5 mm 5…8.4 Hz symmetrical rail, 3.5 mm 5…8.4 Hz panel mounting, 1 gn 8.4…150 Hz symmetrical rail, 1 gn 8.4…150 Hz panel mounting
Shock resistance 98 m/s² 11 ms
Show all 100 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number TM221C40R
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480648731

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin TW
Shipping weight 0.456 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
