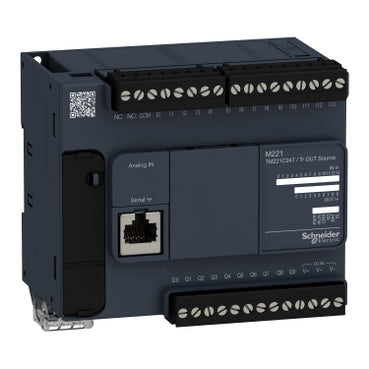

Schneider Electric TM221C24T Modicon M221 24 I/O 14DI 10DO Transistor PNP Programmable Logic Controller

The Schneider Electric TM221C24T is a Modicon M221 logic controller with 24 discrete I/O - 14 discrete inputs (4 fast) and 10 PNP transistor outputs (2 fast) rated 0.5 A - running from a 24 V DC supply. Fast outputs reach 100 kHz PWM/PLS for pulse-train positioning, alongside USB and RS232/RS485 serial ports.

Technical Specifications

Certifications & Standards

• CE
• DNV-GL
• LR
• cULus
• RCM
• EAC
• ABS
• UKCA
• cULus HazLoc
• IEC 61131-2
• UL 508
• CAN/CSA C22.2 No. 213
• IACS E10
• ANSI/ISA 12-12-01

Selection Notes

The TM221C24T steps up from the 16 I/O C16T to 14 DI / 10 transistor DO for panels needing more pulse-train or high-speed digital points - fast outputs Q0-Q1 still reach 100 kHz for PTO/PWM/PLS motion functions, the same as the smaller C16T. Expansion headroom grows to 7 local / 14 remote modules versus 4/11 on the C16T. Where the panel switches AC loads instead of 24 V DC, the relay-output C24R covers the same 24-point count without needing interposing relays.

Applications

Mid-size 24 V DC panels needing pulse-train or high-speed outputs - stepper positioning, frequency generation, and machine control between 16 and 40 I/O points.
