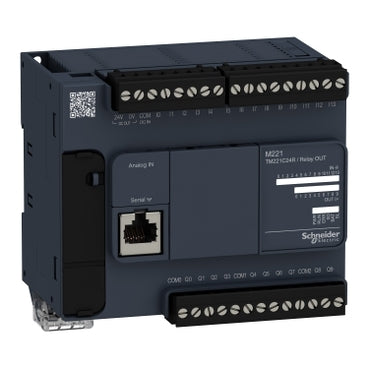

Schneider Electric TM221C24R Modicon M221 24 I/O 14DI 10DO Relay Programmable Logic Controller

The Schneider Electric TM221C24R is a Modicon M221 logic controller with 24 discrete I/O - 14 discrete inputs and 10 relay outputs rated 2 A - running from a 100-240 V AC supply. It provides 2 analog inputs, 4 fast counting inputs, and USB plus RS232/RS485 serial ports for hardwired machine control panels programmed in SoMachine Basic.

Technical Specifications

Certifications & Standards

• CE
• LR
• ABS
• DNV-GL
• RCM
• cULus
• EAC
• UKCA
• cULus HazLoc
• IEC 61131-2
• UL 508
• CAN/CSA C22.2 No. 213
• IACS E10
• ANSI/ISA 12-12-01

Selection Notes

The TM221C24R steps up from the 16 I/O C16R to 14 DI / 10 relay DO when a panel outgrows 16 points, without moving to a larger CPU family - the relay outputs (5-125 V DC or 5-250 V AC, 2 A each) still switch AC contactor coils and pilot devices directly. It also gains more expansion headroom (7 local / 14 remote modules versus 4/11 on the C16R), useful when the panel needs distributed remote I/O beyond the base unit. Where fast pulse-train outputs are needed instead of relay switching, the transistor-output C24T covers the same 24-point count.

Applications

Mid-size hardwired relay-logic panels - packaging, conveyor, and material-handling machines needing more than 16 but fewer than 40 I/O points, switching AC loads directly.
