Schneider Electric TM221C16R Modicon M221 16 I/O 9DI 7DO Relay Programmable Logic Controller

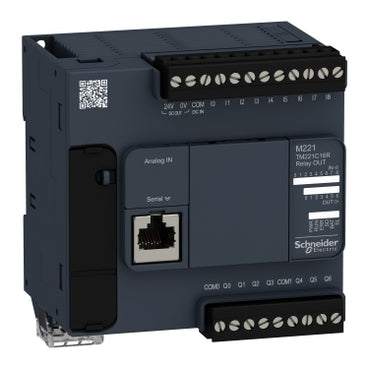

The Schneider Electric TM221C16R is a Modicon M221 logic controller with 16 discrete I/O - 9 discrete inputs and 7 relay outputs rated 2 A - running from a 100-240 V AC supply. It provides 2 analog inputs, 4 fast counting inputs, and USB plus RS232/RS485 serial ports for hardwired machine control panels programmed in SoMachine Basic.

Technical Specifications

Certifications & Standards

• CE
• RCM
• ABS
• LR
• DNV-GL
• EAC
• cULus
• UKCA
• cULus HazLoc
• IEC 61131-2
• UL 508
• CAN/CSA C22.2 No. 213
• IACS E10
• ANSI/ISA 12-12-01

Selection Notes

The TM221C16R's 7 relay outputs (5-125 V DC or 5-250 V AC, 2 A each) switch AC loads such as contactor coils or pilot lights directly, without an external interposing relay - the transistor-output C16T switches only 24 V DC loads but reaches PWM/PLS output rates up to 100 kHz that this relay variant cannot match, since relay switching frequency here caps at 20 operations per minute at full load. Local I/O tops out at 9 DI / 7 DO; machines needing more points step up to the 24 I/O C24R or scale through the 4 local / 11 remote expansion module slots rather than moving to a larger base unit.

Applications

Hardwired relay-logic machine control panels - conveyor and packaging line control, small-machine automation, and panels switching contactor coils or 230 V pilot devices directly from the controller.
