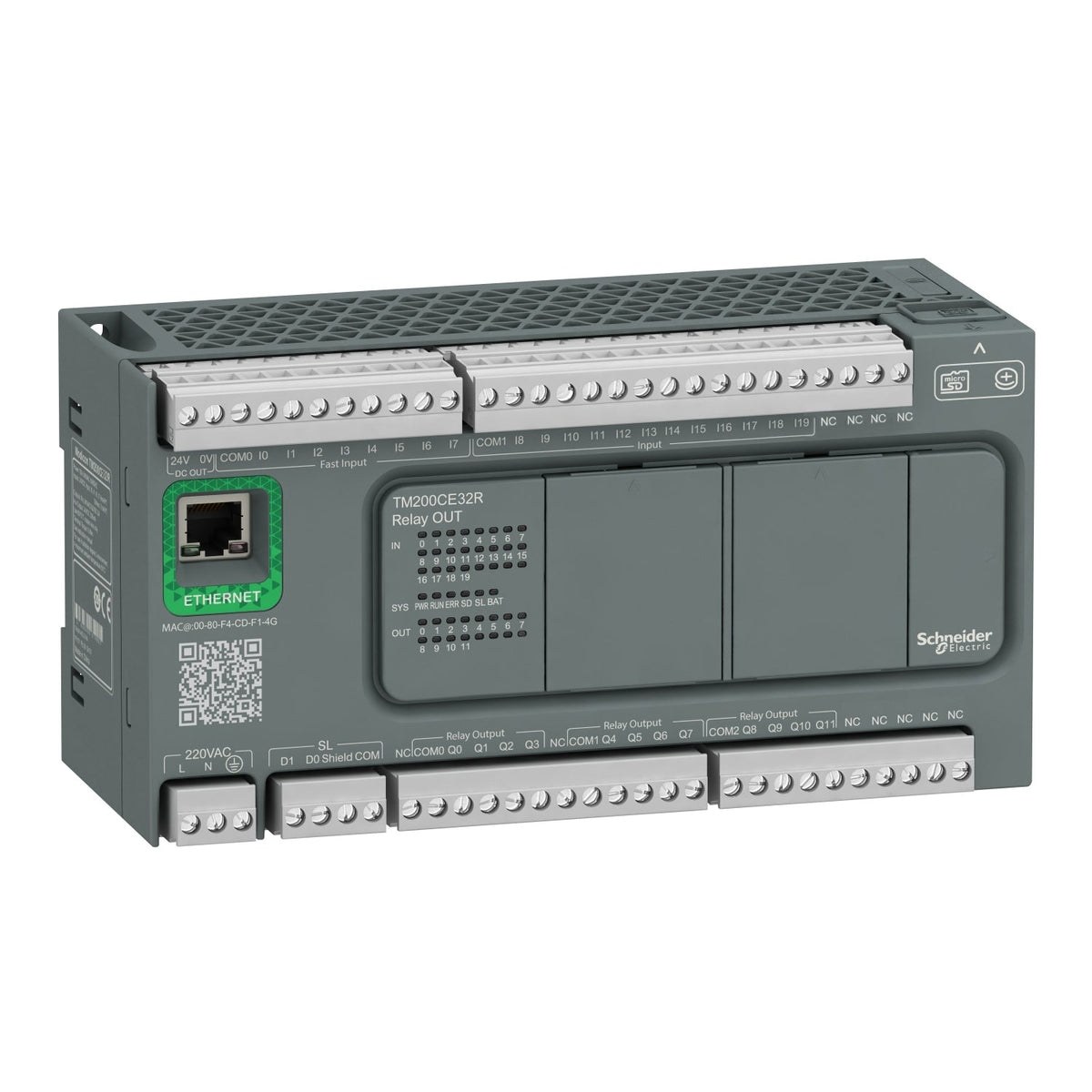

The Schneider Electric TM200CE32R is an Easy Modicon M200 logic controller with 32 discrete I/O: 20 inputs (12 regular, 4 fast, 4 high-speed, all to 100 kHz) and 12 relay outputs rated 2 A, in the Ethernet-enabled 'CE' variant of the M200 range. It runs from a 100...240 V AC supply and mounts in an IP20 enclosure with protective cover.
Choose the Ethernet-enabled TM200CE32R over a non-Ethernet M200 sibling where the line needs Modbus TCP/IP networking rather than serial-only communication; it keeps the same USB and RS485/RS232 ports as the base units for local programming and RTU/ASCII links. Its relay outputs switch 2 A up to 250 V AC or 30 V DC directly, at the cost of a slower ~10 ms response versus a transistor-output sibling. Step down to the 24 I/O Ethernet relay variant where fewer points suffice, or to a non-Ethernet transistor-output sibling where 24 V DC control power and faster switching are preferred instead.
| Range of product | Modicon M200 |
|---|---|
| Product or component type | Logic controller |
| [Us] rated supply voltage | 100...240 V AC |
| Discrete I/O number | 32 |
| Discrete input number | I2...I5: 4 fast input, I0, I1, I6, I7: 4 high speed input, I8...I19: 12 regular input |
| Discrete output number | 12 relay |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Discrete input current | 7 mA for input, 7 mA for fast input, 9 mA for high speed input |
| Discrete input logic | Sink or source (positive/negative) type 1 conforming to IEC 61131-2 |
| Discrete output voltage | 24 V DC, 220 V AC |
| Discrete output current | 2 A for relay output |
| Discrete output type | Relay normally open |
| Power consumption in VA | 55…66 VA at 100...240 V AC (with max I/O) |
| Maximum number of I/O expansion module | 4 with 76 discrete output(s) for relay output |
|---|---|
| Supply voltage limits | 85…264 V |
| Network frequency | 50/60 Hz |
| Inrush current | 50 A |
| Voltage state 1 guaranteed | >= 15 V for input |
| Voltage state 0 guaranteed | <= 5 V for input |
| Input impedance | 3.3 kOhm for discrete input |
| Response time | 10 ms turn-on, Q0...Q11 terminal(s) for output, 10 ms turn-off, Q0...Q11 terminal(s) for output, 5 µs turn-off, I0, I1, I6, I7 terminal(s) for high speed input, 5 µs turn-on, I0, I1, I6, I7 terminal(s) for high speed input, 100 µs turn-off, I2...I5 terminal(s) for fast input, 35 µs turn-on, I2...I5 terminal(s) for fast input, 100 µs turn-off, I8...I13 terminal(s) for regular input, 35 µs turn-on, I8...I13 terminal(s) for regular input, 125 µs turn-off, I14...I19 terminal(s) for regular input, 55 µs turn-on, I14...I19 terminal(s) for regular input |
| Configurable filtering time | 0 ms for input, 3 ms for input, 12 ms for input |
| Output voltage limits | 30 V DC, 250 V AC |
| Maximum current per output common | 4 A at COM 2, 4 A at COM 0, 4 A at COM 1 |
| Electrical durability | 100000 cycles AC-12, 240 V, 480 VA, resistive, 100000 cycles DC-12, 24 V, 48 W, resistive |
| Switching frequency | 0.1 Hz with maximum load |
| Mechanical durability | 20000000 cycles for relay output |
| Minimum load | 10 mA at 5 V DC for relay output |
| Memory capacity | 512 byte internal flash for backup of programs |
| Data storage equipment | 32 GB micro SD card (optional) |
| Battery type | BR2032 Li-CFx (Lithium-Carbon Monofluoride), battery life: 5 year(s) |
| Backup time | 3 years at 25 °C (by interruption of power supply) |
| Execution time for 1 KInstruction | 0.3 ms for event and periodic task |
| Execution time per instruction | 0.2 µs Boolean |
| Exct time for event task | 60 µs response time |
| Clock drift | <= 90 s/month at 25 °C |
| Regulation loop | Adjustable PID regulator up to 14 simultaneous loops |
| Control signal type | Quadrature (x1, x2, x4) at 100 kHz for fast input (HSC mode), Pulse/direction at 100 kHz for fast input (HSC mode), Single phase at 100 kHz for fast input (HSC mode), CW/CCW at 100 kHz for fast input (HSC mode) |
| Counting input number | 4 fast input (HSC mode) at 100 kHz 32 bits |
| Integrated connection type | USB port with mini B USB 2.0 connector, Non isolated serial link serial 1 with terminal block connector and RS485 interface, Non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface, Isolated serial link serial 2 with terminal block connector and RS485 interface |
| Transmission rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232, 12 Mbit/s for USB |
| Communication port protocol | USB port: USB - SoMachine-Network, Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network |
| Local signalling | 1 LED (green) for PWR, 1 LED (green) for RUN, 1 LED (red) for module error (ERR), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL1, 1 LED per channel (green) for I/O state |
| Electrical connection | Mini B USB 2.0 connectorfor a programming terminal, removable screw terminal blockfor inputs, removable screw terminal blockfor outputs, removable screw terminal block, 4 terminal(s) for connecting the serial link1, removable screw terminal block, 3 terminal(s) for connecting the 100-240 V AC power supply |
| Maximum cable distance between devices | Unshielded cable: <50 m for input, Shielded cable: <10 m for fast input, Shielded cable: <10 m for high speed input, Unshielded cable: <150 m for output |
| Insulation | Non-insulated between inputs, Between output and internal logic at 1780 V AC, Between output groups at 1780 V AC, Between supply and internal logic at 1780 V AC, Between input and internal logic at 500 V AC, Between fast input and internal logic at 500 V AC, Between input groups at 500 V AC |
| Sensor power supply | 24 V DC at 300 mA supplied by the controller |
| Marking | CE |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715, Top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715 |
| Height | 90 mm |
| Depth | 70 mm |
| Width | 175 mm |
| Net weight | 0.504 kg |
| IP degree of protection | IP20 with protective cover in place |
|---|---|
| Product certifications | CE |
| Standards | IEC 61131-2, IEC 61010-2-201 |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2, Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3, Magnetic field at power frequency - test level: 30 A/m conforming to IEC 61000-4-8, Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (serial link) conforming to IEC 61000-4-4, 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 2 kV (power lines (AC)) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (shielded cable) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 0.5 kV (power lines (DC)) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (AC)) conforming to IEC 61000-4-5, Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, Conducted emission - test level: 79 dBμV/m QP/66 dBμV/m AV (power lines (AC)) conforming to IEC 55011, Conducted emission - test level: 73 dBμV/m QP/60 dBμV/m AV (power lines (AC)) conforming to IEC 55011, Radiated emission - test level: 40 dBμV/m QP class A (10 m) conforming to IEC 55011, Radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to IEC 55011 |
| Shock resistance | 15 gn for 11 ms, 30 gn for 6 ms |
| Immunity to microbreaks | 10 ms |
| Vibration resistance | 3.5 mm at 5…8.4 Hz on symmetrical rail, 1 gn at 8.4…150 Hz on symmetrical rail, 3.5 mm at 5…8.7 Hz on panel mounting, 2 gn at 8.7…150 Hz on panel mounting |
| Relative humidity | 10…95 %, without condensation (in operation), 10…95 %, without condensation (in storage) |
| Ambient air temperature for operation | 0…55 °C (horizontal installation) |
| Ambient air temperature for storage | -25…70 °C |
| Pollution degree | <= 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Part number | TM200CE32R |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.5 cm |
| Package 1 Width | 13.8 cm |
| Package 1 Length | 18.5 cm |
| Package 1 Weight | 749.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 9.4 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 96 |
| Package 3 Height | 75.0 cm |
| Package 3 Width | 80.0 cm |
| Package 3 Length | 60.0 cm |
| Package 3 Weight | 83.2 kg |
| Shipping weight | 0.504 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
