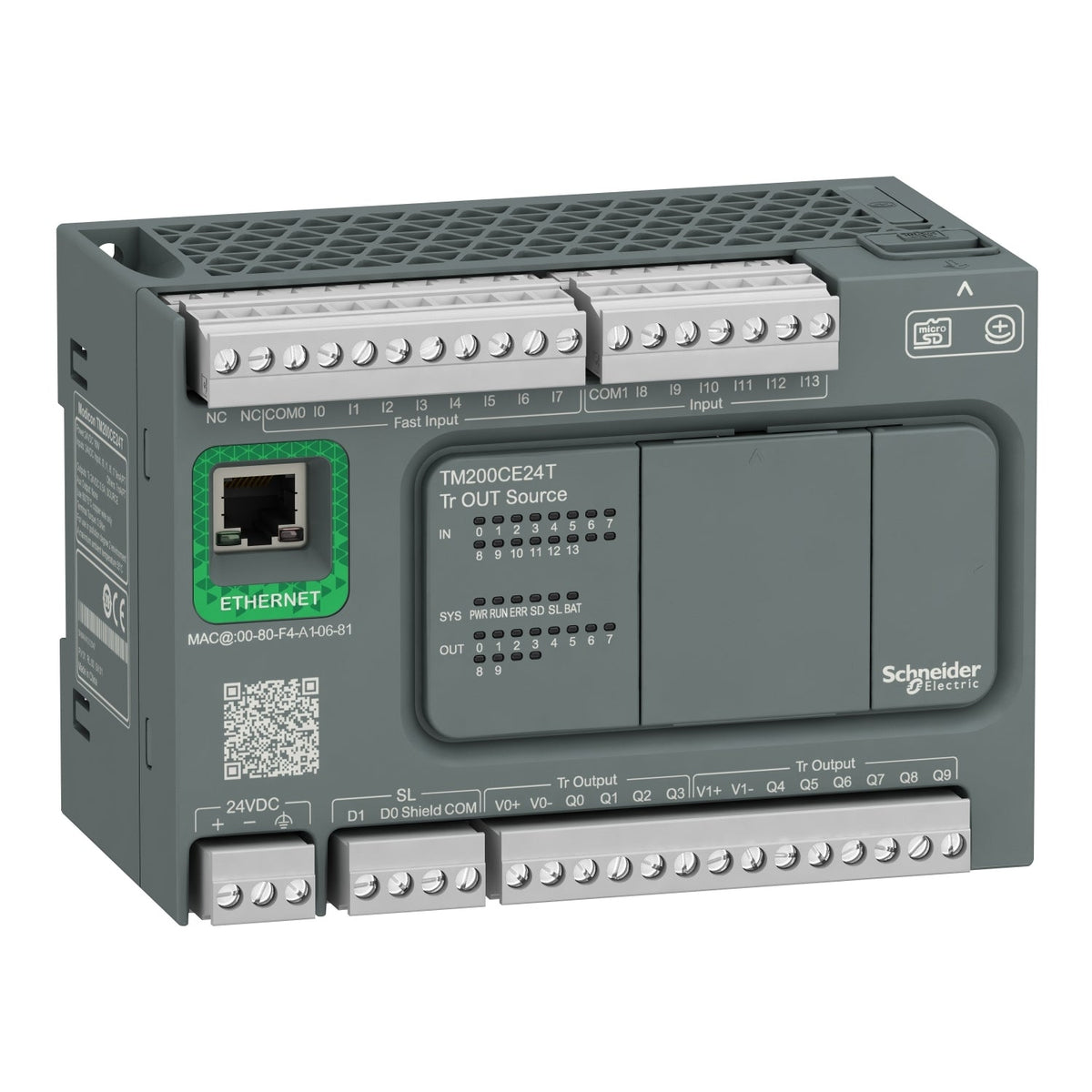

The Schneider Electric TM200CE24T is an Easy Modicon M200 logic controller with 24 discrete I/O: 14 inputs (6 regular, 4 fast, 4 high-speed, all to 100 kHz) and 10 transistor outputs (8 standard at 0.5 A plus 2 fast PWM/PLS/PTO outputs to 100 kHz), plus an integrated Ethernet port for Modbus TCP/IP client/server. It runs from a 24 V DC supply and mounts in an IP20 enclosure with protective cover.
Choose the TM200CE24T over a non-Ethernet M200 sibling where the application needs Modbus TCP/IP connectivity — its integrated RJ45 port (10/100BASE-T) reads and writes over Ethernet directly, alongside the same USB and RS485/RS232 serial ports as the base model. Its Q0-Q1 output pair still delivers PWM/PLS/PTO pulses at up to 100 kHz for stepper or simple positioning control, a capability the relay-output Ethernet sibling lacks. Move to the 32 I/O Ethernet relay variant where more points or mains-voltage switching are needed instead.
| Range of product | Modicon M200 |
|---|---|
| Product or component type | Logic controller |
| [Us] rated supply voltage | 24 V DC |
| Discrete I/O number | 24 |
| Discrete input number | I2...I5: 4 fast input, I0, I1, I6, I7: 4 high speed input, I8...I13: 6 regular input |
| Discrete output number | Q0...Q1: 2 fast output (PLS/PWM/PTO mode), Q2...Q9: 8 transistor output |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Discrete input current | 7 mA for input |
| Discrete input logic | Sink or source (positive/negative) type 1 conforming to IEC 61131-2 |
| Discrete output voltage | 24 V DC |
| Discrete output current | 0.5 A |
| Discrete output type | Transistor |
| Discrete output logic | Positive logic (source) |
| Power consumption in W | 16 W at 24 V DC (with max I/O) |
| Maximum number of I/O expansion module | 4 with 64 discrete output(s) for relay output, 4 with 138 discrete output(s) for transistor output |
|---|---|
| Supply voltage limits | 20.4…28.8 V |
| Inrush current | 35 A |
| Voltage state 1 guaranteed | >= 15 V for input |
| Voltage state 0 guaranteed | <= 5 V for input |
| Input impedance | 3.3 kOhm for discrete input |
| Response time | 1 ms turn-on, Q0...Q9 terminal(s) for output, 1 ms turn-off, Q0...Q9 terminal(s) for output, 5 µs turn-off, I0, I1, I6, I7 terminal(s) for high speed input, 5 µs turn-on, I0, I1, I6, I7 terminal(s) for high speed input, 100 µs turn-off, I2...I5 terminal(s) for fast input, 35 µs turn-on, I2...I5 terminal(s) for fast input, 100 µs turn-off, I8...I13 terminal(s) for regular input, 35 µs turn-on, I8...I13 terminal(s) for regular input |
| Configurable filtering time | 0 ms for input, 3 ms for input, 12 ms for input |
| Maximum current per output common | 2 A at COM 0, 3 A at COM 1 |
| Output frequency | 100 kHz for fast output (PWM/PLS mode) at Q0...Q1 |
| Maximum leakage current | 0.1 mA for transistor output |
| Maximum voltage drop | <1 V |
| Maximum tungsten load | <12 W for output and fast output |
| Protection type | Overload and short-circuit protection at 2 A |
| Reset time | 1 s automatic reset |
| Memory capacity | 512 byte internal flash for backup of programs |
| Data storage equipment | 32 GB micro SD card (optional) |
| Battery type | BR2032 Li-CFx (Lithium-Carbon Monofluoride), battery life: 5 year(s) |
| Backup time | 3 years at 25 °C (by interruption of power supply) |
| Execution time for 1 KInstruction | 0.3 ms for event and periodic task |
| Execution time per instruction | 0.2 µs Boolean |
| Exct time for event task | 60 µs response time |
| Clock drift | <= 90 s/month at 25 °C |
| Regulation loop | Adjustable PID regulator up to 14 simultaneous loops |
| Positioning functions | PWM/PLS 2 channel(s) at 100 kHz |
| Control signal type | Quadrature (x1, x2, x4) at 100 kHz for fast input (HSC mode), Pulse/direction at 100 kHz for fast input (HSC mode), Single phase at 100 kHz for fast input (HSC mode), CW/CCW at 100 kHz for fast input (HSC mode) |
| Counting input number | 4 fast input (HSC mode) at 100 kHz 32 bits |
| Integrated connection type | USB port with mini B USB 2.0 connector, Non isolated serial link serial 1 with terminal block connector and RS485 interface, Non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface, Ethernet Modbus TCP/IP Ethernet with RJ45 connector and 1 Ethernet port 10/100BASE-T interface, Isolated serial link serial 2 with terminal block connector and RS485 interface |
| Transmission rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232, 12 Mbit/s for USB, 10/100 Mbit/s for bus length of 100 m for Ethernet Modbus TCP/IP |
| Communication port protocol | USB port: USB - SoMachine-Network, Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network, Ethernet Modbus TCP/IP: Modbus TCP/IP client/server |
| Local signalling | 1 LED (green) for PWR, 1 LED (green) for RUN, 1 LED (red) for module error (ERR), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL1, 1 LED per channel (green) for I/O state, 2 LEDs (green) for communication (LK/ACT 10/100) |
| Electrical connection | Mini B USB 2.0 connectorfor a programming terminal, RJ45 connectorfor connecting Ethernet network, removable screw terminal blockfor inputs, removable screw terminal blockfor outputs, removable screw terminal block, 3 terminal(s) for connecting the 24 V DC power supply, removable screw terminal block, 4 terminal(s) for connecting the serial link1 |
| Maximum cable distance between devices | Unshielded cable: <50 m for input, Shielded cable: <10 m for fast input, Shielded cable: <10 m for high speed input, Unshielded cable: <150 m for output |
| Insulation | Non-insulated between inputs, Between input and internal logic at 500 V AC, Between fast input and internal logic at 500 V AC, Between input groups at 500 V AC, Between output and internal logic at 500 V AC, Between output groups at 500 V AC, Between supply and internal logic at 500 V DC |
| Marking | CE |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715, Top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715 |
| Height | 90 mm |
| Depth | 70 mm |
| Width | 130 mm |
| Net weight | 0.424 kg |
| IP degree of protection | IP20 with protective cover in place |
|---|---|
| Product certifications | CE |
| Standards | IEC 61131-2, IEC 61010-2-201 |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2, Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2, Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3, Magnetic field at power frequency - test level: 30 A/m conforming to IEC 61000-4-8, Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (serial link) conforming to IEC 61000-4-4, 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 2 kV (power lines (AC)) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (shielded cable) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 0.5 kV (power lines (DC)) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (AC)) conforming to IEC 61000-4-5, Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, Conducted emission - test level: 79 dBμV/m QP/66 dBμV/m AV (power lines (AC)) conforming to IEC 55011, Conducted emission - test level: 73 dBμV/m QP/60 dBμV/m AV (power lines (AC)) conforming to IEC 55011, Radiated emission - test level: 40 dBμV/m QP class A (10 m) conforming to IEC 55011, Radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to IEC 55011, Electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4 |
| Shock resistance | 15 gn for 11 ms, 30 gn for 6 ms |
| Immunity to microbreaks | 2 ms |
| Vibration resistance | 3.5 mm at 5…8.4 Hz on symmetrical rail, 1 gn at 8.4…150 Hz on symmetrical rail, 3.5 mm at 5…8.7 Hz on panel mounting, 2 gn at 8.7…150 Hz on panel mounting |
| Relative humidity | 10…95 %, without condensation (in operation), 10…95 %, without condensation (in storage) |
| Ambient air temperature for operation | 0…55 °C (horizontal installation) |
| Ambient air temperature for storage | -25…70 °C |
| Pollution degree | <= 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Part number | TM200CE24T |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.500 cm |
| Package 1 Width | 13.600 cm |
| Package 1 Length | 14.000 cm |
| Package 1 Weight | 598.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.577 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 96 |
| Package 3 Height | 45.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 72.616 kg |
| Shipping weight | 0.424 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
