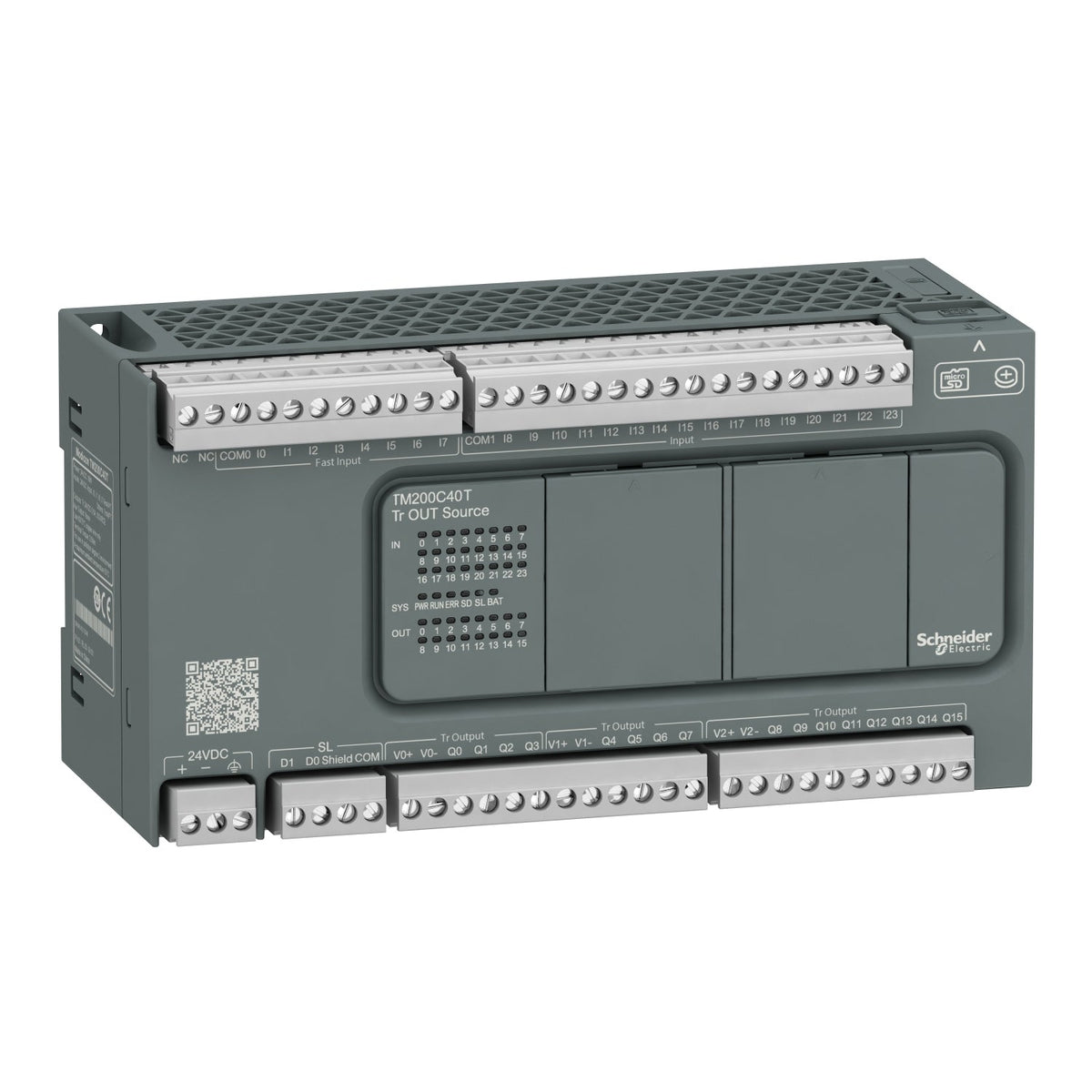

Schneider Electric TM200C40T Easy Modicon M200 40 I/O Transistor Outputs Programmable Logic Controller

The Schneider Electric TM200C40T is an Easy Modicon M200 logic controller with 40 discrete I/O: 24 inputs (16 regular, 4 fast, 4 high-speed, all to 100 kHz) and 16 transistor outputs (14 standard at 0.5 A plus 2 fast PWM/PLS/PTO outputs to 100 kHz). It runs from a 24 V DC supply and mounts in an IP20 enclosure with protective cover.

Technical Specifications

Certifications & Standards

• CE
• IEC 61131-2
• IEC 61010-2-201

Selection Notes

Choose the transistor-output TM200C40T over its relay-output TM200C40R sibling where the machine needs fast switching or pulse outputs: its Q0-Q1 pair delivers PWM/PLS/PTO pulses at up to 100 kHz, something the relay unit cannot do. At 40 discrete I/O it is the largest fixed base unit in the M200 range, running from 24 V DC control power rather than mains. Step down to the 16 or 24 I/O transistor siblings where fewer points suffice, or to a 'CE' Ethernet sibling where Modbus TCP/IP connectivity is required.
