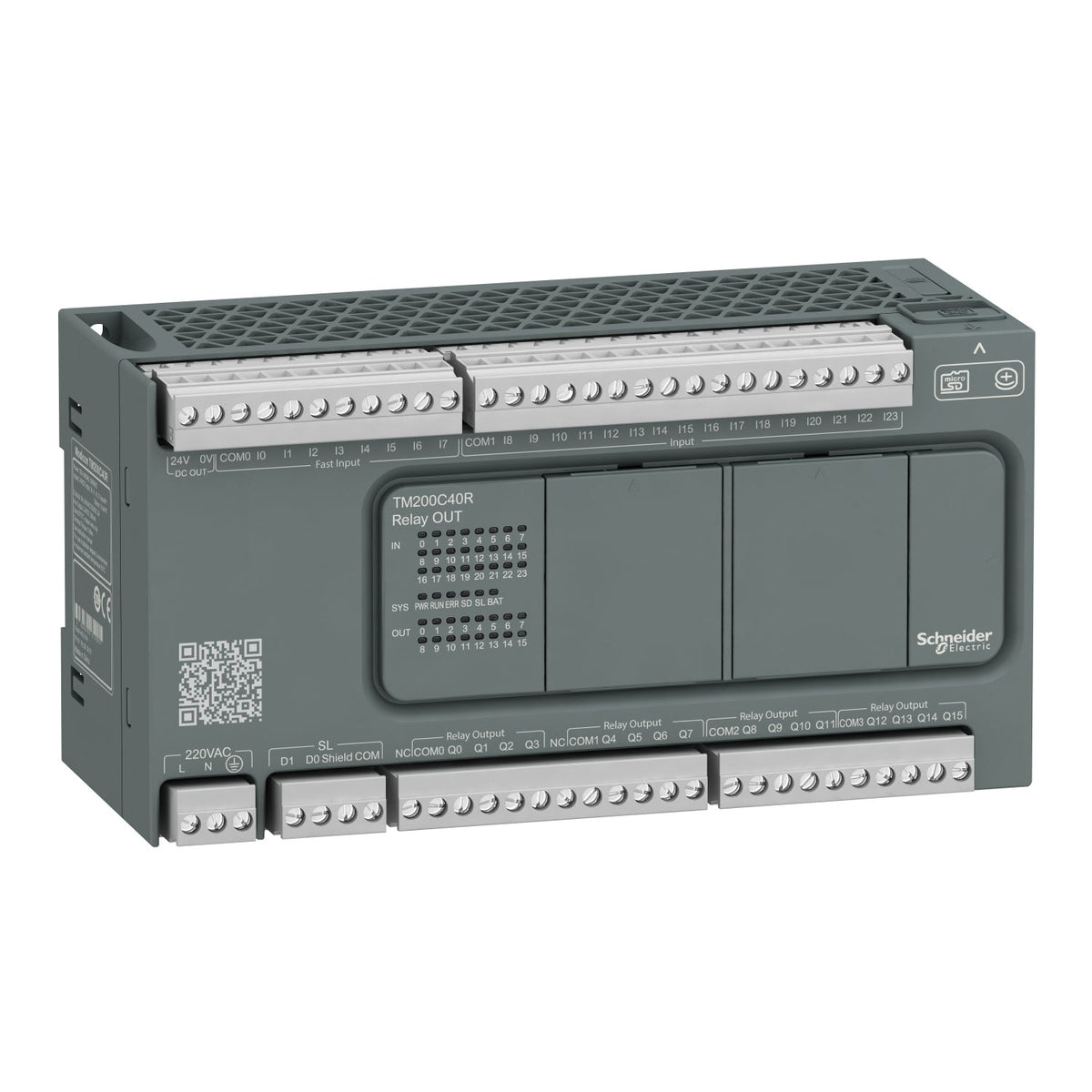

Schneider Electric TM200C40R Easy Modicon M200 40 I/O Relay Outputs Programmable Logic Controller

The Schneider Electric TM200C40R is an Easy Modicon M200 logic controller with 40 discrete I/O: 24 inputs (16 regular, 4 fast, 4 high-speed, all to 100 kHz) and 16 relay outputs rated 2 A. It runs from a 100...240 V AC supply, integrates USB, RS485 and RS232 serial ports for Modbus RTU/ASCII, and mounts in an IP20 enclosure with protective cover.

Technical Specifications

Certifications & Standards

• CE
• IEC 61010-2-201
• IEC 61131-2

Selection Notes

Choose the relay-output TM200C40R over a transistor-output M200 sibling when the outputs need to switch mains-voltage loads directly — its 16 relay outputs handle 2 A up to 250 V AC or 30 V DC without an interposing relay. At 40 discrete I/O it is the largest fixed base unit in the M200 range, sharing the 175 mm housing with the 32 I/O variant but adding more regular inputs and outputs for machines with more field devices. Step down to the 16, 24 or 32 I/O siblings where fewer points suffice, or to a 'CE' Ethernet sibling where Modbus TCP/IP connectivity is required.
