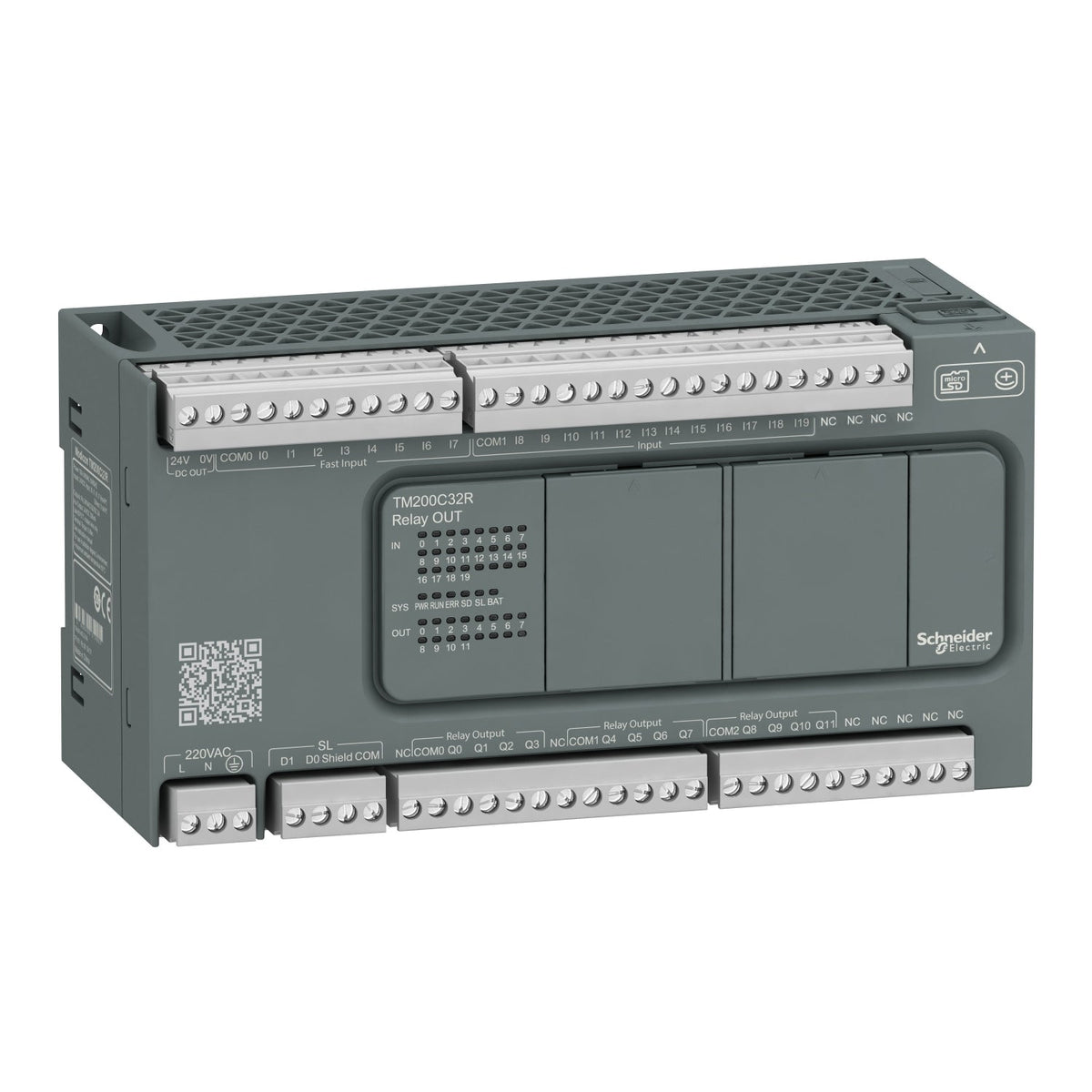

Schneider Electric TM200C32R Easy Modicon M200 32 I/O Relay Outputs Programmable Logic Controller

The Schneider Electric TM200C32R is an Easy Modicon M200 logic controller with 32 discrete I/O: 20 inputs (12 regular, 4 fast, 4 high-speed, all to 100 kHz) and 12 relay outputs rated 2 A. It runs from a 100...240 V AC supply, integrates USB, RS485 and RS232 serial ports for Modbus RTU/ASCII, and mounts in an IP20 enclosure with protective cover.

Technical Specifications

Certifications & Standards

• CE
• IEC 61131-2
• IEC 61010-2-201

Selection Notes

Choose the relay-output TM200C32R over a transistor-output M200 sibling when the outputs need to switch mains-voltage loads directly — its 12 relay outputs handle 2 A up to 250 V AC or 30 V DC without an interposing relay. With 20 inputs and 12 outputs across the wider 175 mm housing shared with the 40 I/O unit, it suits machines with more field devices than the 16 or 24 I/O variants support. Step down where fewer points suffice, up to the 40 I/O variant where more are needed, or to a 'CE' Ethernet sibling where Modbus TCP/IP connectivity is required.
