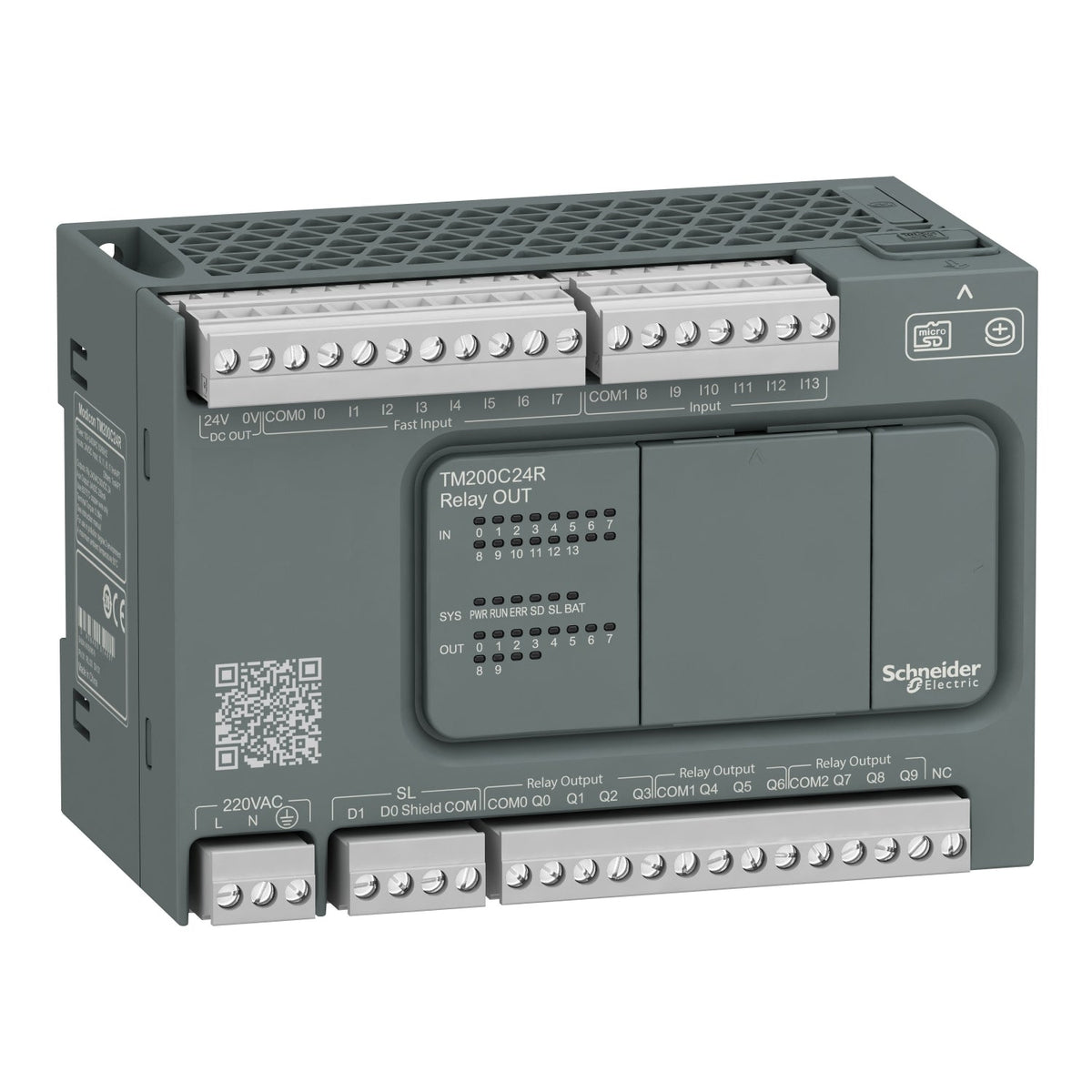

Schneider Electric TM200C24R Easy Modicon M200 24 I/O Relay Outputs Programmable Logic Controller

The Schneider Electric TM200C24R is an Easy Modicon M200 logic controller with 24 discrete I/O: 14 inputs (6 regular, 4 fast, 4 high-speed, all to 100 kHz) and 10 relay outputs rated 2 A. It runs from a 100...240 V AC supply, integrates USB, RS485 and RS232 serial ports for Modbus RTU/ASCII, and mounts in an IP20 enclosure with protective cover.

Technical Specifications

Certifications & Standards

• CE
• IEC 61010-2-201
• IEC 61131-2

Selection Notes

Choose the relay-output TM200C24R over its transistor-output TM200C24T sibling when outputs need to switch mains-voltage loads directly — its 10 relay outputs handle 2 A up to 250 V AC or 30 V DC without an interposing relay, though at a slower ~10 ms response versus the transistor model's 1 ms. Its 14 inputs and 10 outputs give more headroom than the 16 I/O siblings for machines with more field devices, while its 100...240 V AC supply fits panels already wired for mains power. Step down to the 16 I/O variant where fewer points suffice, or up to the 32/40 I/O or 'CE' Ethernet siblings where more I/O or networking is needed.
