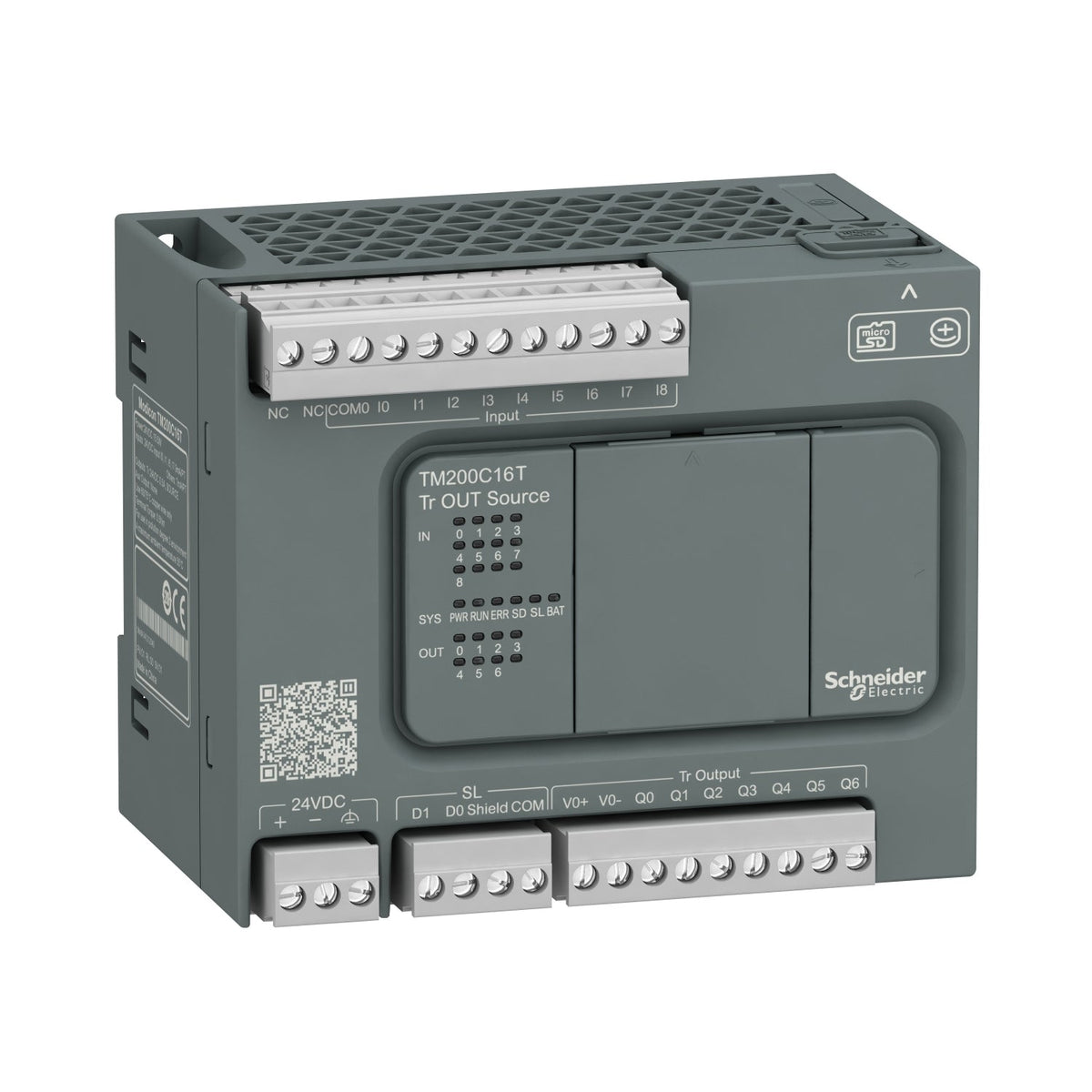

Schneider Electric TM200C16T Easy Modicon M200 16 I/O Transistor Outputs Programmable Logic Controller

Schneider Electric TM200C16T Easy Modicon M200 PLC, 16 I/O (9 DI/7 transistor DO), 24 V DC, IP20.

Communication
USB, RS485, RS232 (Modbus RTU/ASCII, SoMachine-Network)
Description

About the TM200C16T

The Schneider Electric TM200C16T is an Easy Modicon M200 logic controller with 16 discrete I/O: 9 inputs (1 regular, 4 fast, 4 high-speed, all to 100 kHz) and 7 transistor outputs (5 standard at 0.5 A plus 2 fast PWM/PLS/PTO outputs to 100 kHz). It runs from a 24 V DC supply and mounts in an IP20 enclosure with protective cover.

Certifications & Standards

  • CE
  • IEC 61131-2
  • IEC 61010-2-201

Selection Notes

Choose the transistor-output TM200C16T over its relay-output TM200C16R sibling where the machine needs fast switching or pulse outputs: its Q0-Q1 pair delivers PWM/PLS/PTO pulses at up to 100 kHz for stepper or simple positioning control, something the relay unit cannot do, and its 1 ms response beats the relay model's ~10 ms. It runs from 24 V DC rather than mains, so it suits panels already standardized on 24 V DC control power; where outputs must switch 230 V AC loads directly, the relay variant is the better fit. Step up to the 24, 32 or 40 I/O siblings in the M200 line where more discrete points are needed.

Specification

Full specification

97 values · Last verified 30 Oct 2026

Main 15

Range of product Modicon M200
Product or component type Logic controller
[Us] rated supply voltage 24 V DC
Discrete I/O number 16
Discrete input number I8: 1 regular input, I2...I5: 4 fast input, I0, I1, I6, I7: 4 high speed input
Discrete output number Q2...Q6: 5 transistor output, Q0...Q1: 2 fast output (PLS/PWM/PTO mode)
Discrete input voltage 24 V
Discrete input voltage type DC
Discrete input current 7 mA for input
Discrete input logic Sink or source (positive/negative) type 1 conforming to IEC 61131-2
Discrete output voltage 24 V DC
Discrete output current 0.5 A
Discrete output type Transistor
Discrete output logic Positive logic (source)
Power consumption in W 15.5 W at 24 V DC (with max I/O)

Complementary 40

Maximum number of I/O expansion module 4 with 135 discrete output(s) for transistor output, 4 with 64 discrete output(s) for relay output
Supply voltage limits 20.4…28.8 V
Inrush current 35 A
Voltage state 1 guaranteed >= 15 V for input
Voltage state 0 guaranteed <= 5 V for input
Input impedance 3.3 kOhm for discrete input
Response time 1 ms turn-on, Q0...Q6 terminal(s) for output, 1 ms turn-off, Q0...Q7 terminal(s) for output, 5 µs turn-off, I0, I1, I6, I7 terminal(s) for high speed input, 5 µs turn-on, I0, I1, I6, I7 terminal(s) for high speed input, 100 µs turn-off, I2...I5 terminal(s) for fast input, 35 µs turn-on, I2...I5 terminal(s) for fast input, 100 µs turn-off, I8 terminal(s) for regular input, 35 µs turn-on, I8 terminal(s) for regular input
Configurable filtering time 0 ms for input, 3 ms for input, 12 ms for input
Maximum current per output common 3.5 A at COM 0
Output frequency 100 kHz for fast output (PWM/PLS mode) at Q0...Q1
Maximum leakage current 0.1 mA for transistor output
Maximum voltage drop <1 V
Maximum tungsten load <12 W for output and fast output
Protection type Overload and short-circuit protection at 2 A
Reset time 1 s automatic reset
Memory capacity 512 byte internal flash for backup of programs
Data storage equipment 32 GB micro SD card (optional)
Battery type BR2032 Li-CFx (Lithium-Carbon Monofluoride), battery life: 5 year(s)
Backup time 3 years at 25 °C (by interruption of power supply)
Execution time for 1 KInstruction 0.3 ms for event and periodic task
Execution time per instruction 0.2 µs Boolean
Exct time for event task 60 µs response time
Clock drift <= 90 s/month at 25 °C
Regulation loop Adjustable PID regulator up to 14 simultaneous loops
Positioning functions PWM/PLS 2 channel(s) at 100 kHz
Control signal type Quadrature (x1, x2, x4) at 100 kHz for fast input (HSC mode), Pulse/direction at 100 kHz for fast input (HSC mode), Single phase at 100 kHz for fast input (HSC mode), CW/CCW at 100 kHz for fast input (HSC mode)
Counting input number 4 fast input (HSC mode) at 100 kHz 32 bits
Integrated connection type USB port with mini B USB 2.0 connector, Non isolated serial link serial 1 with terminal block connector and RS485 interface, Non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface, Isolated serial link serial 2 with terminal block connector and RS485 interface
Transmission rate 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232, 12 Mbit/s for USB
Communication port protocol USB port: USB - SoMachine-Network, Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network
Local signalling 1 LED (green) for PWR, 1 LED (green) for RUN, 1 LED (red) for module error (ERR), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL1, 1 LED per channel (green) for I/O state
Electrical connection Mini B USB 2.0 connectorfor a programming terminal, removable screw terminal blockfor inputs, removable screw terminal blockfor outputs, removable screw terminal block, 3 terminal(s) for connecting the 24 V DC power supply, removable screw terminal block, 4 terminal(s) for connecting the serial link1
Maximum cable distance between devices Unshielded cable: <50 m for input, Shielded cable: <10 m for fast input, Shielded cable: <10 m for high speed input, Unshielded cable: <150 m for output
Insulation Non-insulated between inputs, Between input and internal logic at 500 V AC, Between fast input and internal logic at 500 V AC, Between input groups at 500 V AC, Between output and internal logic at 500 V AC, Between output groups at 500 V AC, Between supply and internal logic at 500 V DC
Marking CE
Mounting support Top hat type TH35-15 rail conforming to IEC 60715, Top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715
Height 90 mm
Depth 70 mm
Width 110 mm
Net weight 0.365 kg

Environment 13

IP degree of protection IP20 with protective cover in place
Product certifications CE
Standards IEC 61131-2, IEC 61010-2-201
Electromagnetic compatibility Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2, Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2, Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3, Magnetic field at power frequency - test level: 30 A/m conforming to IEC 61000-4-8, Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (serial link) conforming to IEC 61000-4-4, 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 2 kV (power lines (AC)) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (shielded cable) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 0.5 kV (power lines (DC)) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (AC)) conforming to IEC 61000-4-5, Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, Conducted emission - test level: 79 dBμV/m QP/66 dBμV/m AV (power lines (AC)) conforming to IEC 55011, Conducted emission - test level: 73 dBμV/m QP/60 dBμV/m AV (power lines (AC)) conforming to IEC 55011, Radiated emission - test level: 40 dBμV/m QP class A (10 m) conforming to IEC 55011, Radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to IEC 55011
Shock resistance 15 gn for 11 ms, 30 gn for 6 ms
Immunity to microbreaks 2 ms
Vibration resistance 3.5 mm at 5…8.4 Hz on symmetrical rail, 1 gn at 8.4…150 Hz on symmetrical rail, 3.5 mm at 5…8.7 Hz on panel mounting, 2 gn at 8.7…150 Hz on panel mounting
Relative humidity 10…95 %, without condensation (in operation), 10…95 %, without condensation (in storage)
Ambient air temperature for operation 0…55 °C (horizontal installation)
Ambient air temperature for storage -25…70 °C
Pollution degree <= 2
Operating altitude 0...2000 m
Storage altitude 0…3000 m
Show all 97 specifications ↓ Show less ↑29 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number TM200C16T
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.500 cm
Package 1 Width 12.000 cm
Package 1 Length 13.500 cm
Package 1 Weight 522.000 g
Unit Type of Package 2 S03
Number of Units in Package 2 18
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 9.813 kg
Unit Type of Package 3 P12
Number of Units in Package 3 144
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 90.504 kg
Shipping weight 0.365 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
