Easy Modicon M200

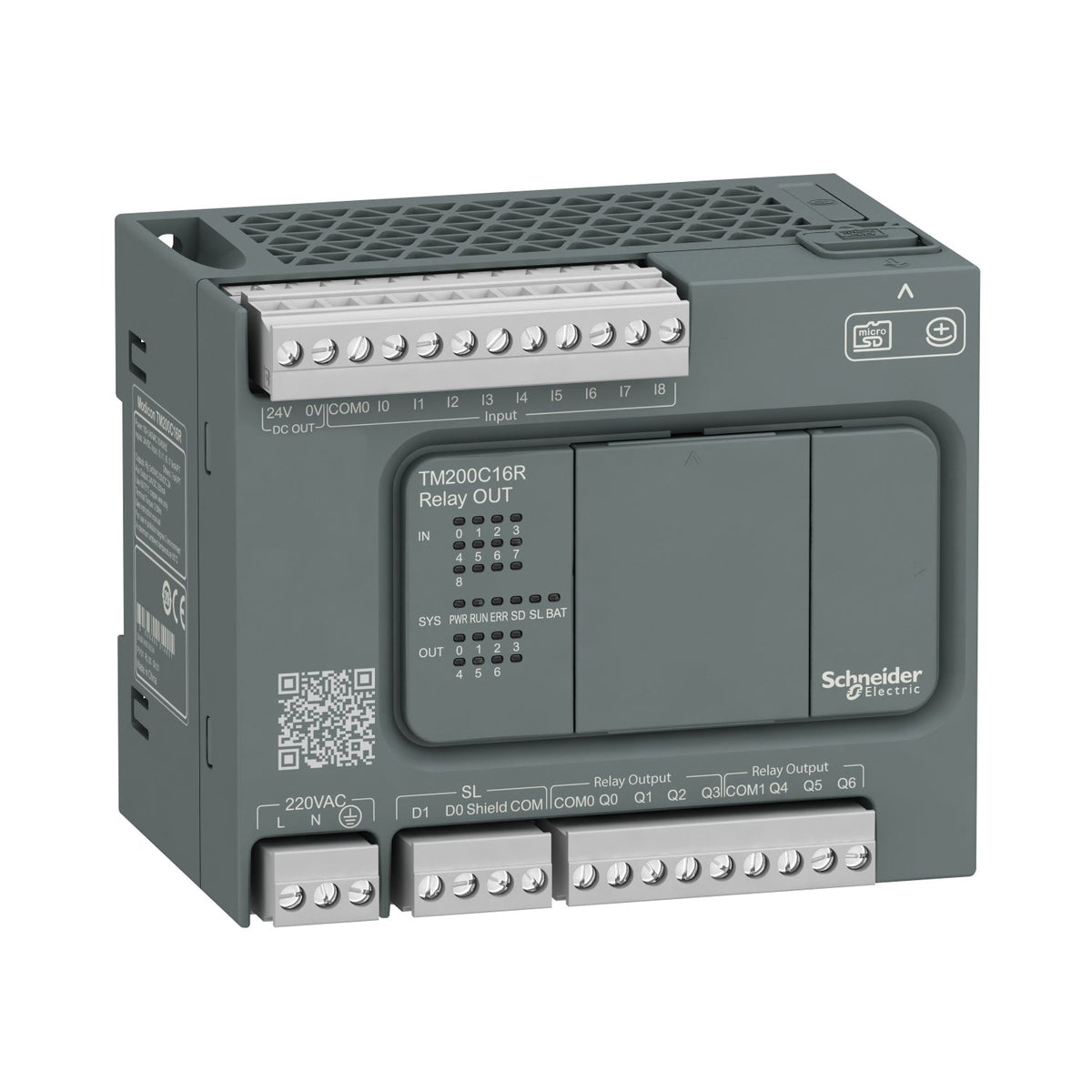

Schneider Electric TM200C16R Easy Modicon M200 16 I/O Relay Outputs Programmable Logic Controller

Schneider Electric TM200C16R Easy Modicon M200 PLC, 16 I/O (9 DI/7 relay DO), 100-240 V AC, IP20.

Rated operational voltage
100–240 V AC
Communication
USB, RS485, RS232 (Modbus RTU/ASCII, SoMachine-Network)
Description

About the TM200C16R

The Schneider Electric TM200C16R is an Easy Modicon M200 logic controller with 16 discrete I/O: 9 inputs (1 regular, 4 fast, 4 high-speed, all to 100 kHz) and 7 relay outputs rated 2 A. It runs from a 100...240 V AC supply, integrates USB, RS485 and RS232 serial ports for Modbus RTU/ASCII, and mounts in an IP20 enclosure with protective cover.

Certifications & Standards

  • CE
  • IEC 61131-2
  • IEC 61010-2-201

Selection Notes

Choose the relay-output TM200C16R over its transistor-output TM200C16T sibling when the outputs need to switch mains-voltage loads directly — its 7 relay outputs handle 2 A up to 250 V AC or 30 V DC without an interposing relay, though at a slower ~10 ms response versus the transistor unit's 1 ms. Its 100...240 V AC supply fits panels already wired for mains power; where 24 V DC control power and faster transistor switching are available instead, the transistor variant is the better match. Step up to the 24, 32 or 40 I/O siblings in the M200 line where more discrete points are needed.

Specification

Full specification

96 values · Last verified 30 Oct 2026

Main 14

Range of product Modicon M200
Product or component type Logic controller
[Us] rated supply voltage 100...240 V AC
Discrete I/O number 16
Discrete input number I8: 1 regular input, I2...I5: 4 fast input, I0, I1, I6, I7: 4 high speed input
Discrete output number 7 relay
Discrete input voltage 24 V
Discrete input voltage type DC
Discrete input current 7 mA for input
Discrete input logic Sink or source (positive/negative) type 1 conforming to IEC 61131-2
Discrete output voltage 24 V DC, 220 V AC
Discrete output current 2 A
Discrete output type Relay normally open
Power consumption in VA 51…63 VA at 100...240 V AC (with max I/O)

Complementary 40

Maximum number of I/O expansion module 4 with 64 discrete output(s) for transistor output, 4 with 71 discrete output(s) for relay output
Supply voltage limits 85…264 V
Network frequency 50/60 Hz
Inrush current 50 A
Voltage state 1 guaranteed >= 15 V for input
Voltage state 0 guaranteed <= 5 V for input
Input impedance 3.3 kOhm for discrete input
Response time 10 ms turn-off, Q0...Q6 terminal(s) for relay output, 10 ms turn-on, Q0...Q6 terminal(s) for relay output, 5 µs turn-off, I0, I1, I6, I7 terminal(s) for high speed input, 5 µs turn-on, I0, I1, I6, I7 terminal(s) for high speed input, 100 µs turn-off, I2...I5 terminal(s) for fast input, 35 µs turn-on, I2...I5 terminal(s) for fast input, 100 µs turn-off, I8 terminal(s) for regular input, 35 µs turn-on, I8 terminal(s) for regular input
Configurable filtering time 0 ms for input, 3 ms for input, 12 ms for input
Output voltage limits 30 V DC, 250 V AC
Maximum current per output common 4 A at COM 0, 4 A at COM 1
Electrical durability 100000 cycles AC-12, 240 V, 480 VA, resistive, 100000 cycles DC-12, 24 V, 48 W, resistive
Switching frequency 0.1 Hz with maximum load
Mechanical durability 20000000 cycles for relay output
Minimum load 10 mA at 5 V DC for relay output
Memory capacity 512 byte internal flash with 10000 instructions for backup of programs
Data storage equipment 32 GB micro SD card (optional)
Battery type BR2032 Li-CFx (Lithium-Carbon Monofluoride), battery life: 5 year(s)
Backup time 3 years at 25 °C (by interruption of power supply)
Execution time for 1 KInstruction 0.3 ms for event and periodic task
Execution time per instruction 0.2 µs Boolean
Exct time for event task 60 µs response time
Clock drift <= 90 s/month at 25 °C
Regulation loop Adjustable PID regulator up to 14 simultaneous loops
Control signal type Quadrature (x1, x2, x4) at 100 kHz for fast input (HSC mode), Pulse/direction at 100 kHz for fast input (HSC mode), Single phase at 100 kHz for fast input (HSC mode), CW/CCW at 100 kHz for fast input (HSC mode)
Counting input number 4 fast input (HSC mode) at 100 kHz 32 bits
Integrated connection type USB port with mini B USB 2.0 connector, Non isolated serial link serial 1 with terminal block connector and RS485 interface, Non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface, Isolated serial link serial 2 with terminal block connector and RS485 interface
Transmission rate 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232, 12 Mbit/s for USB
Communication port protocol USB port: USB - SoMachine-Network, Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network
Local signalling 1 LED (green) for PWR, 1 LED (green) for RUN, 1 LED (red) for module error (ERR), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL1, 1 LED per channel (green) for I/O state
Electrical connection Mini B USB 2.0 connectorfor a programming terminal, removable screw terminal blockfor inputs, removable screw terminal blockfor outputs, removable screw terminal block, 4 terminal(s) for connecting the serial link1, removable screw terminal block, 3 terminal(s) for connecting the 100-240 V AC power supply
Maximum cable distance between devices Unshielded cable: <50 m for input, Shielded cable: <10 m for fast input, Shielded cable: <10 m for high speed input, Unshielded cable: <150 m for output
Insulation Non-insulated between inputs, Between output and internal logic at 1780 V AC, Between output groups at 1780 V AC, Between supply and internal logic at 1780 V AC, Between input and internal logic at 500 V AC, Between fast input and internal logic at 500 V AC, Between input groups at 500 V AC
Sensor power supply 24 V DC at 250 mA supplied by the controller
Marking CE
Mounting support Top hat type TH35-15 rail conforming to IEC 60715, Top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715
Height 90 mm
Depth 70 mm
Width 110 mm
Net weight 0.359 kg

Environment 13

IP degree of protection IP20 with protective cover in place
Product certifications CE
Standards IEC 61131-2, IEC 61010-2-201
Electromagnetic compatibility Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2, Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2, Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3, Magnetic field at power frequency - test level: 30 A/m conforming to IEC 61000-4-8, Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (serial link) conforming to IEC 61000-4-4, 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 2 kV (power lines (AC)) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (shielded cable) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 0.5 kV (power lines (DC)) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (AC)) conforming to IEC 61000-4-5, Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, Conducted emission - test level: 79 dBμV/m QP/66 dBμV/m AV (power lines (AC)) conforming to IEC 55011, Conducted emission - test level: 73 dBμV/m QP/60 dBμV/m AV (power lines (AC)) conforming to IEC 55011, Radiated emission - test level: 40 dBμV/m QP class A (10 m) conforming to IEC 55011, Radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to IEC 55011, 1.2/50 µs shock waves immunity test - test level: 1 kV (relay output) conforming to IEC 61000-4-5
Shock resistance 15 gn for 11 ms, 30 gn for 6 ms
Immunity to microbreaks 10 ms
Vibration resistance 3.5 mm at 5…8.4 Hz on symmetrical rail, 1 gn at 8.4…150 Hz on symmetrical rail, 3.5 mm at 5…8.7 Hz on panel mounting, 2 gn at 8.7…150 Hz on panel mounting
Relative humidity 10…95 %, without condensation (in operation), 10…95 %, without condensation (in storage)
Ambient air temperature for operation 0…55 °C (horizontal installation)
Ambient air temperature for storage -25…70 °C
Pollution degree <= 2
Operating altitude 0...2000 m
Storage altitude 0…3000 m
Show all 96 specifications ↓ Show less ↑29 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number TM200C16R
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.598 cm
Package 1 Width 12.326 cm
Package 1 Length 13.738 cm
Package 1 Weight 508 g
Unit Type of Package 2 S03
Number of Units in Package 2 18
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 9744 g
Unit Type of Package 3 P12
Number of Units in Package 3 432
Package 3 Height 95 cm
Package 3 Width 80 cm
Package 3 Length 120 cm
Package 3 Weight 242856 g
Shipping weight 0.359 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for TM200C16R

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • IEC 61131-2
  • IEC 61010-2-201
Quick answers

Questions about the TM200C16R

Which supply voltage is TM200C16R rated for?

The rated operational voltage of TM200C16R is 100–240 V AC.

What is the HS code of TM200C16R for customs?

The tariff (HS) code on file for TM200C16R is 853710.

Where does TM200C16R ship from, and how fast?

TM200C16R ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
