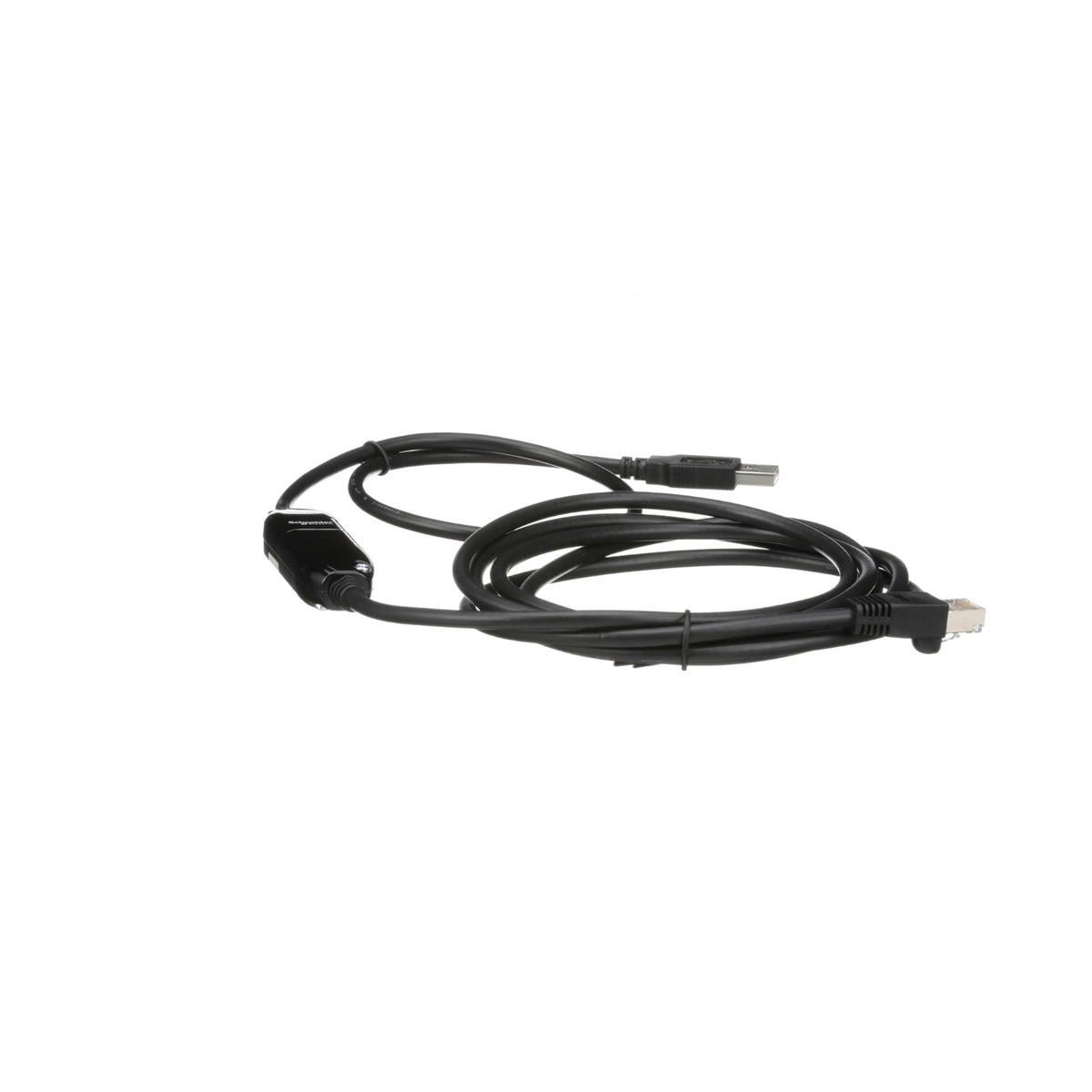

The Schneider Electric TCSMCNAM3M002P is a USB-to-RJ45 connection cable used to link a PC to a drive or controller for commissioning, most commonly a TeSys T motor management relay. It carries a USB connector on the PC end and an RJ45 connector on the device end, and the same cable also fits the Altivar 320, Altivar 12, Altivar 312 Solar, Lexium 28, Lexium 32i, Lexium ILA/ILE/ILS, TeSys Tera and Acti9 Smartlink ranges.
| Range Compatibility | Altivar Machine ATV340, Lexium 32i, Lexium 28, Lexium ILA, ILE, ILS, Acti9 Smartlink, Altivar 312 Solar, SoMove, Altivar Machine ATV320, Altivar 12, TeSys T, TeSys Tera |
|---|---|
| Connector Type | USB/RJ45 |
| Product or Component Type | Standard cable |
| Accessory / separate part category | Connection accessories |
| Accessory / Separate Part Type | Cordset |
| Device connection | Between PC and drive |
| Warranty (in months) | 18 |
|---|
| Part number | TCSMCNAM3M002P |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480078156 |
| Country of origin | CN |
|---|---|
| Shipping weight | 0.175 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for TCSMCNAM3M002P is 850490.
The EAN (GTIN) of TCSMCNAM3M002P is 3606480078156.
TCSMCNAM3M002P ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
