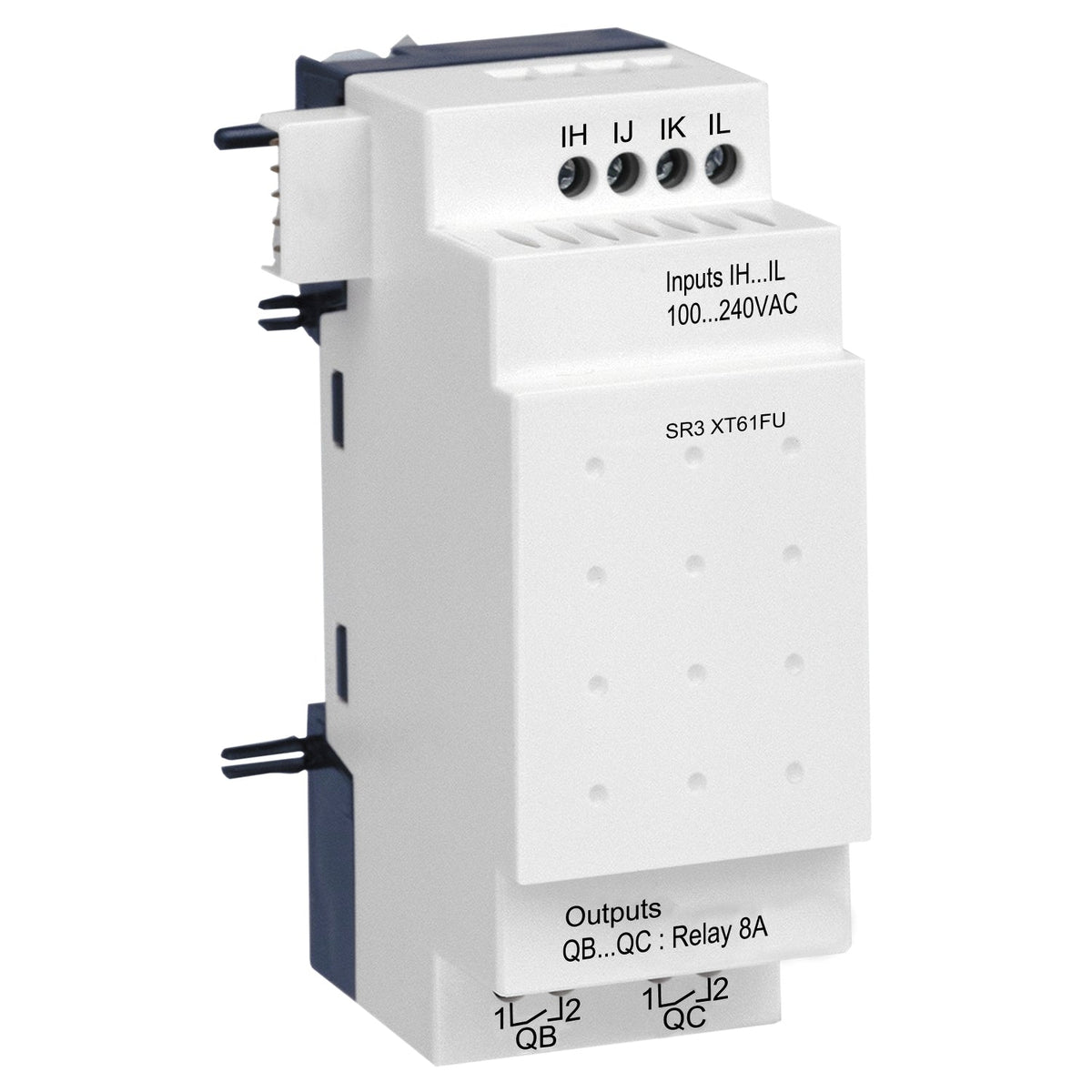

Zelio LogicSchneider Electric SR3XT61FU Zelio Logic SR3 6 I/O Extension Module 100-240 V AC PLC I/O Module
Schneider Electric SR3XT61FU Zelio Logic SR3 I/O extension module, 6 I/O, 100-240 V AC, 2 relay outputs.
Description
About the SR3XT61FU
About the SR3XT61FU
The Schneider Electric SR3XT61FU is a discrete I/O extension module for the Zelio Logic SR3 range, adding 6 I/O (4 discrete inputs, 2 relay outputs) at 100–240 V AC to a base smart relay. It mounts on the same DIN rail as the base unit for a small additional I/O count without a separate 24 V DC supply.
Certifications & Standards
- UL
- CSA
- GOST
- GL
- C-tick
- IEC 61000-4-2
- IEC 61000-4-3
- IEC 61000-4-4
- IEC 61000-4-5
- IEC 61000-4-6
- IEC 61000-4-11
- IEC 61000-4-12
- IEC 60068-2-6
- IEC 60068-2-27
Selection Notes
The SR3XT61FU is the smallest AC-supplied Zelio Logic SR3 extension module, adding 4 discrete inputs and 2 relay outputs (8 A each) directly from 100–240 V AC — use it instead of the DC-supplied SR3XT61BD when the panel has no 24 V DC rail. Step up to the SR3XT141FU when more than 4 extra inputs or 2 extra outputs are needed.
Specification
Full specification
Main 2
| Range of Product | Zelio Logic |
|---|---|
| Product or Component Type | Discrete I/O extension module |
Complementary 32
| Number or control scheme lines | 120 ladder |
|---|---|
| Cycle time | 6…90 ms |
| Backup time | 10 years 77 °F (25 °C) |
| Clock drift | 12 min/year 32…131 °F (0…55 °C) |
| Checks | Program memory on each power up |
| [Us] rated supply voltage | 100...240 V AC |
| Supply voltage limits | 85…264 V |
| Supply frequency | 50/60 Hz |
| Reverse polarity protection | With |
| Discrete input number | 4 |
| Discrete input voltage | 100...240 V AC |
| Discrete input current | 0.6 mA |
| Discrete input frequency | 57...63 Hz, 47...53 Hz |
| Voltage state 1 guaranteed | >= 79 V discrete input |
| Voltage state 0 guaranteed | <= 40 V discrete input |
| Current state 1 guaranteed | >= 0.17 mA discrete input) |
| Current state 0 guaranteed | <= 0.5 mA discrete input) |
| Input impedance | 350 kOhm discrete input |
| Number of Outputs | 2 relay |
| Output voltage limits | 5...30 V DC relay output), 24...250 V AC |
| Contacts type and composition | NO relay output |
| Output thermal current | 8 A for all 2 outputs relay output |
| Electrical durability | AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1, AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1, DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1, DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1 |
| Switching capacity in mA | >= 10 mA 12 V relay output) |
| Operating rate in Hz | 0.1 Hz at Ie)relay output, 10 Hz no load)relay output |
| Mechanical durability | 10000000 cycles relay output |
| [Uimp] rated impulse withstand voltage | 4 kV EN/IEC 60947-1 and EN/IEC 60664-1 |
| Response time | 50 ms ladder from state 0 to state 1)discrete input, 50 ms ladder from state 1 to state 0)discrete input, 50...255 ms FBD from state 0 to state 1)discrete input, 50...255 ms FBD from state 1 to state 0)discrete input, 10 ms from state 0 to state 1)relay output, 5 ms from state 1 to state 0)relay output |
| Connections - terminals | Screw terminals, 1 x 0.25...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable end, Screw terminals, 2 x 0.25...2 x 0.75 mm² 24 AWG...18 AWG) flexible with cable end, Screw terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) semi-solid, Screw terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) solid, Screw terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) solid |
| Tightening torque | 4.4 lbf.in (0.5 N.m) |
| Overvoltage category | III conforming to IEC 60664-1 |
| Net Weight | 0.276 lb(US) (0.125 kg) |
Environment 11
| Product Certifications | CSA, GOST, C-tick, UL, GL |
|---|---|
| Standards | IEC 61000-4-11, IEC 60068-2-27 Ea, IEC 61000-4-4 level 3, IEC 61000-4-5, IEC 61000-4-12, IEC 60068-2-6 Fc, IEC 61000-4-2 level 3, IEC 61000-4-3, IEC 61000-4-6 level 3 |
| IP degree of protection | IP20 IEC 60529 terminal block), IP40 IEC 60529 front panel) |
| Environmental characteristic | EMC directive conforming to IEC 61000-6-2, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61131-2 zone B, Low voltage directive conforming to IEC 61131-2 |
| Disturbance radiated/conducted | Class B EN 55022-11 group 1 |
| Pollution degree | 2 IEC 61131-2 |
| Ambient air temperature for operation | -4…104 °F (-20…40 °C) in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -4…131 °F (-20…55 °C) IEC 60068-2-1 and IEC 60068-2-2 |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Operating altitude | 6561.68 ft (2000 m) |
| Maximum altitude transport | 10000 ft (3048 m) |
| Relative Humidity | 95 % without condensation or dripping water |
Show all 58 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | SR3XT61FU |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110550122 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.125 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
