Schneider Electric SR3XT61BD Zelio Logic SR3 6 I/O Extension Module 24 V DC PLC I/O Module

% $-86.62

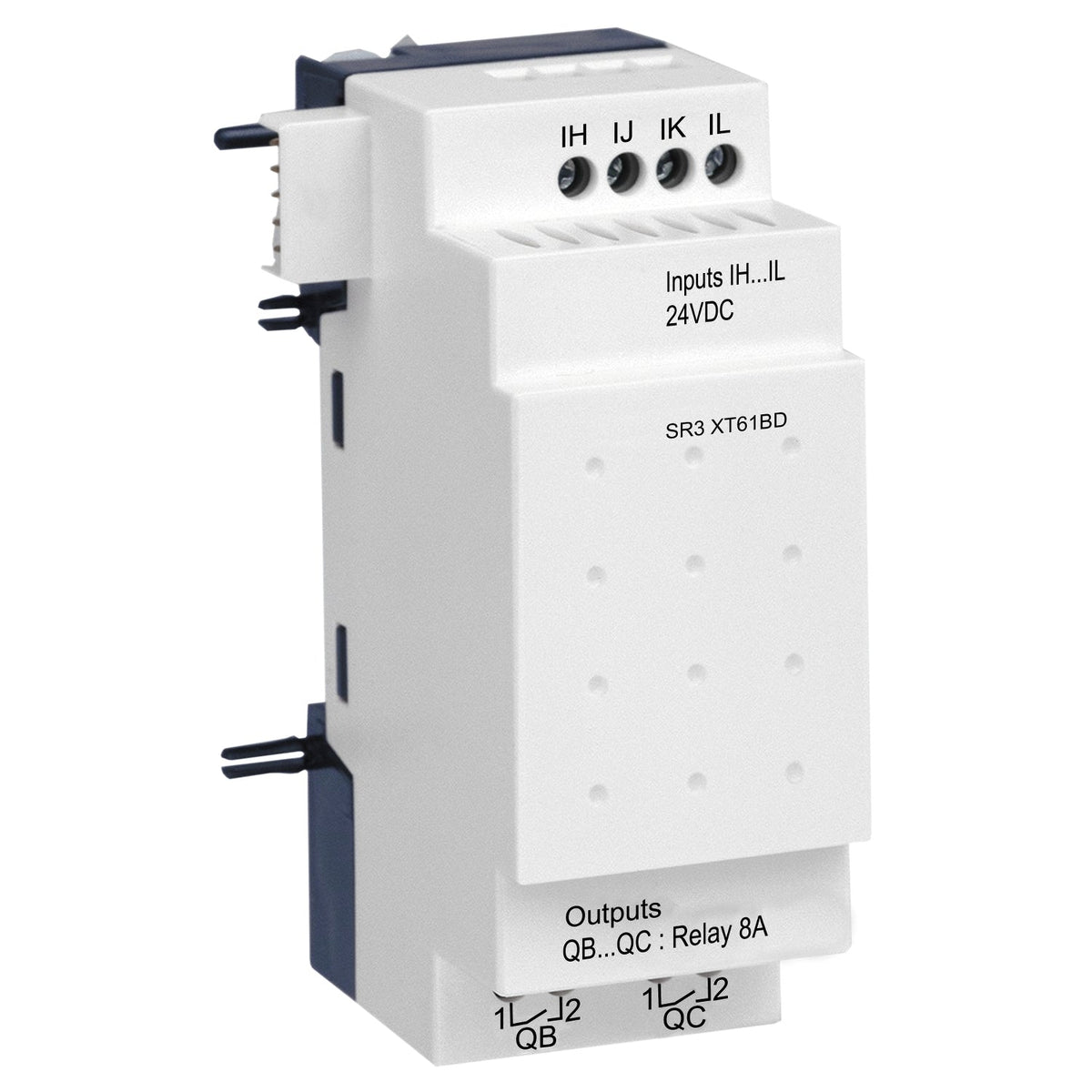

Schneider Electric SR3XT61BD Zelio Logic SR3 discrete I/O extension module - 6 I/O, 24 V DC
Schneider Electric SR3XT61BD Zelio Logic SR3 discrete I/O extension module - 6 I/O, 24 V DC

Schneider Electric SR3XT61BD Zelio Logic SR3 6 I/O Extension Module 24 V DC PLC I/O Module

Brand: Schneider Electric
Reference No: SR3XT61BD
Catalog No: SR3XT61BD
Series: Zelio Logic
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$86.62

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric SR3XT61BD is a discrete I/O extension module for the Zelio Logic SR3 range, adding 6 I/O (4 discrete inputs, 2 relay outputs) at 24 V DC to a base smart relay. It mounts on the same DIN rail as the base unit for industrial and building-services applications needing a small additional I/O count.

Technical Specifications

Reference SR3XT61BD
Brand Schneider Electric
Range Zelio Logic
GTIN 3389110550078
Product Type Discrete I/O extension module
Rated Supply Voltage (Us) 24 V DC
Supply Voltage Limits 19.2–30 V
Discrete Inputs 4, 24 V DC
Outputs 2 relay, NO contacts
Output Thermal Current 8 A for all 2 outputs
Rated Impulse Withstand Voltage (Uimp) 4 kV (EN/IEC 60947-1, EN/IEC 60664-1)
Response Time (Relay Output) 10 ms / 5 ms
Connections – Terminals Screw terminals, 0.2–2.5 mm²
Overvoltage Category III (IEC 60664-1)
IP Degree of Protection IP20 (terminal block) / IP40 (front panel)
Ambient Air Temperature, Operation -20…40 °C (non-ventilated) / -20…55 °C
Ambient Air Temperature, Storage -40…70 °C
Net Weight 0.125 kg

Certifications & Standards

  • UL
  • CSA
  • GOST
  • GL
  • C-tick
  • IEC 61000-4-4
  • IEC 61000-4-5
  • IEC 61000-4-12
  • IEC 60068-2-27

Selection Notes

The SR3XT61BD is the smallest Zelio Logic SR3 extension module, adding just 4 discrete inputs and 2 relay outputs (8 A each) to a 24 V DC base unit — pick it over the SR3XT141BD or SR3XT101BD when the application only needs a handful of extra points and board space is tight. It targets both industrial and building-services panels, per Schneider's stated application scope.

Technical Details

Short Description
Schneider Electric SR3XT61BD Zelio Logic SR3 I/O extension module, 6 I/O, 24 V DC, 2 relay outputs.
Mounting Type
DIN rail
Protection Type
IP20 (terminal block) / IP40 (front panel)
Catalog No
SR3XT61BD
Delivery Date (Days)
30 days
Model Number
Zelio Logic SR3
Tariff Code
853710
