Zelio Logic

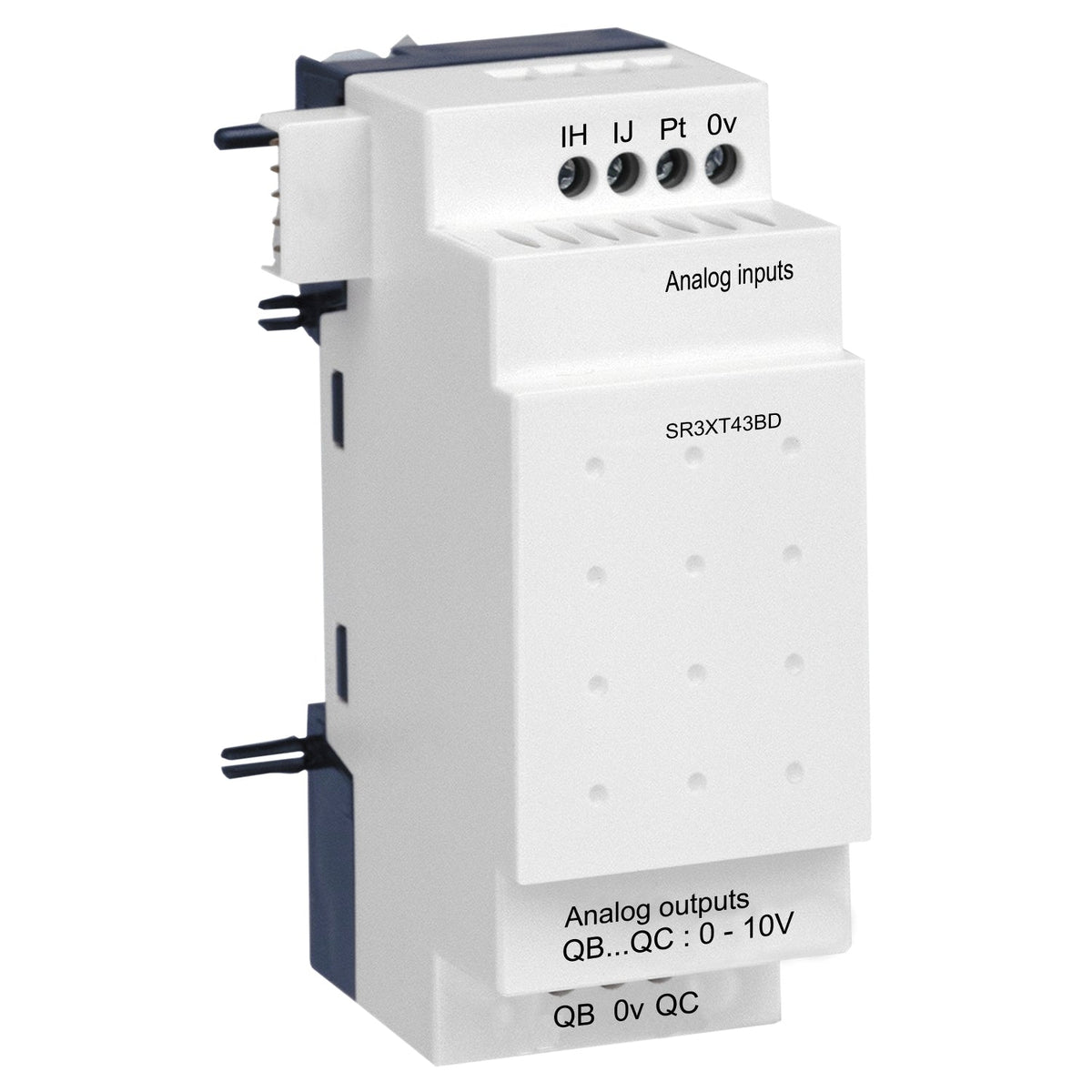

Schneider Electric SR3XT43BD Zelio Logic SR3 4 I/O Analogue Extension Module 24 V DC PLC I/O Module

Schneider Electric SR3XT43BD Zelio Logic SR3 analogue I/O extension module, 2 inputs, 2 outputs, 24 V DC.

Range of Product
Zelio Logic
Product or Component Type
Analogue I/O extension module
EAN
3389119203968
Description

About the SR3XT43BD

The Schneider Electric SR3XT43BD is an analogue I/O extension module for the Zelio Logic SR3 range, supplied at 24 V DC with 2 analogue inputs (0–10 V, 0–20 mA or Pt100) and 2 analogue outputs (0–10 V). It mounts on the same DIN rail as a base smart relay to add closed-loop analogue signal handling, such as temperature or level monitoring, to the automation system.

Certifications & Standards

  • UL
  • CSA
  • GOST
  • C-tick
  • IEC 61000-4-2
  • IEC 61000-4-3
  • IEC 61000-4-4
  • IEC 61000-4-5
  • IEC 61000-4-11
  • IEC 61000-4-12
  • IEC 60068-2-6
  • IEC 60068-2-27

Selection Notes

The SR3XT43BD is the only Zelio Logic SR3 extension module with analogue outputs, so it is the module to add when the application needs a 0–10 V control signal out — for example driving a valve positioner or a VFD speed reference — rather than just more discrete points. Its Pt100 input option gives a direct 3-wire RTD connection for temperature loops without a separate signal converter, unlike the discrete-only SR3XT61BD or SR3XT141BD.

Specification

Full specification

49 values · Last verified 30 Oct 2026

Main 2

Range of Product Zelio Logic
Product or Component Type Analogue I/O extension module

Complementary 23

Analogue input number 2
Analogue Input Type Common mode
Analogue input range 0...10 V, 0...20 mA, -25...125 °C
Temperature probe type Pt 100, 3-wire IEC 751
Maximum permissible voltage 30 V analogue input circuit
[Imp] maximum permanent current 30 mA analogue input circuit
Analogue input resolution 10 bits on the input range
Input impedance 18 kOhm 0...10 V analogue input circuit, 247 Ohm 0...20 mA analogue input circuit
Analogue output number 2
Analogue output range 0...10 V
Analogue output resolution 10 bits on the output range
Load type Resistive analogue output
Maximum load current 10 mA analogue output
Short-circuit protection With analogue output
LSB value 0.15 °C, - 25...125 °C analogue input circuit, 20 µA, 0...20 mA analogue input circuit, 9.8 mV, 0...10 V analogue input circuit, 9.8 mV, 0...10 V analogue output
Conversion time Smart relay cycle time analogue input circuit, Smart relay cycle time analogue output
Conversion error +/- 1 % of the full scale value 0...10 V 77 °F (25 °C))analogue output, +/- 1 % of the full scale value 0...10 V 131 °F (55 °C))analogue output, +/- 1 % 0...10 V 77 °F (25 °C))analogue input circuit, +/- 1 % 0...10 V 131 °F (55 °C))analogue input circuit, +/- 1 % 0...20 mA 77 °F (25 °C))analogue input circuit, +/- 1 % 0...20 mA 131 °F (55 °C))analogue input circuit, +/- 1.5 °C - 25...125 °C 77 °F (25 °C))analogue input circuit, +/- 1.5 °C - 25...125 °C 131 °F (55 °C))analogue input circuit
Repeat accuracy < +/- 0.3 °C - 25...125 °C 77 °F (25 °C) analogue input circuit, <= +/- 1 % 0...10 V 77 °F (25 °C) analogue input circuit, <= +/- 1 % 0...10 V 131 °F (55 °C) analogue output, <= +/- 1 % 0...20 mA 77 °F (25 °C) analogue input circuit
Operating distance 10 m with screened cable analogue input circuit, 10 m with screened cable analogue output
Reverse polarity protection Analogue input circuit with
Connections - terminals Screw terminals, 1 x 0.25...1 x 2.5 mm² 24 AWG...14 AWG) semi-solid, Screw terminals, 1 x 0.25...1 x 2.5 mm² 24 AWG...14 AWG) solid, Screw terminals, 2 x 0.25...2 x 1.5 mm² 23 AWG...16 AWG) solid, Screw terminals, 1 x 0.25...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable end, Screw terminals, 2 x 0.25...2 x 0.75 mm² 24 AWG...18 AWG) flexible with cable end
Tightening torque 4.4 lbf.in (0.5 N.m)
Net Weight 0.24 lb(US) (0.11 kg)

Environment 11

Product Certifications GOST, UL, C-tick, CSA
Standards IEC 61000-4-12, IEC 61000-4-5, IEC 61000-4-3, IEC 61000-4-4 level 3, IEC 61000-4-6 level 3, IEC 61000-4-2 level 3, IEC 60068-2-6 Fc, IEC 61000-4-11, IEC 60068-2-27 Ea
IP degree of protection IP20 IEC 60529 terminal block), IP40 IEC 60529 front panel)
Environmental characteristic EMC directive conforming to IEC 61000-6-2, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61131-2 zone B, Low voltage directive conforming to IEC 61131-2
Disturbance radiated/conducted Class B IEC 55022-11 Group 1
Pollution degree 2 IEC 61131-2
Ambient air temperature for operation -4…104 °F (-20…40 °C) IEC 60068-2-1 and IEC 60068-2-2, -4…131 °F (-20…55 °C) IEC 60068-2-1 and IEC 60068-2-2
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Operating altitude 6561.68 ft (2000 m)
Maximum altitude transport 10000 ft (3048 m)
Relative Humidity 95 % without condensation or dripping water
Show all 49 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number SR3XT43BD
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389119203968

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 0.11 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
