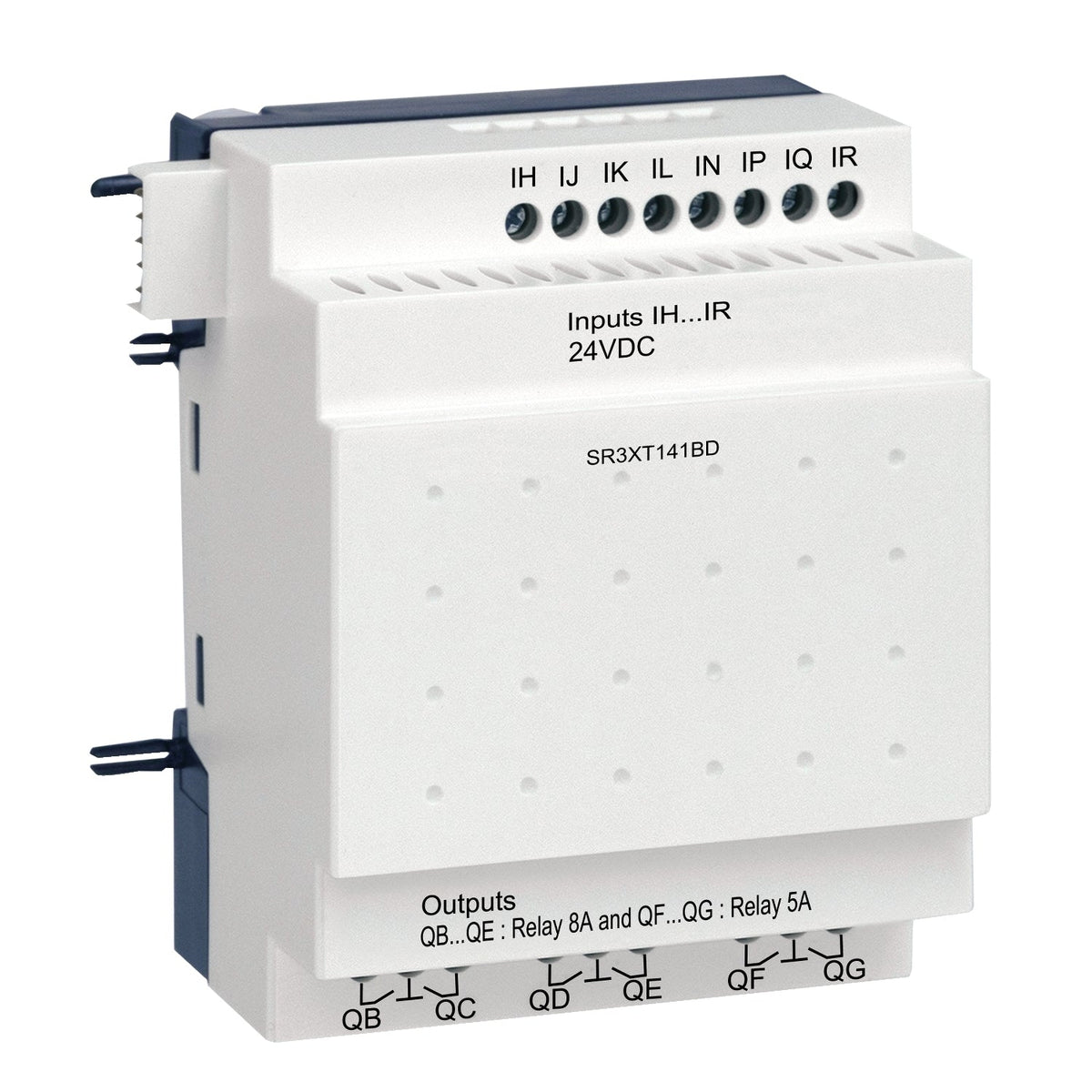

The Schneider Electric SR3XT141BD is a discrete I/O extension module for the Zelio Logic SR3 range, adding 14 I/O (8 discrete inputs, 6 relay outputs) at 24 V DC to a base smart relay. It mounts on the same DIN rail as the base unit to expand the I/O count of larger automation systems.
The SR3XT141BD adds 8 discrete inputs and 6 relay outputs to a 24 V DC Zelio Logic base unit, sitting between the smaller SR3XT61BD (4 in / 2 out) and the larger SR3XT101BD (6 in / 4 out) for machines that need a mid-size I/O boost. Two of its six outputs are current-limited to 5 A while the other four carry 8 A — route higher-current loads to the 8 A-rated points.
| Range of Product | Zelio Logic |
|---|---|
| Product or Component Type | Discrete I/O extension module |
| Number or control scheme lines | 120 ladder |
|---|---|
| Cycle time | 6…90 ms |
| Backup time | 10 years 77 °F (25 °C) |
| Clock drift | 12 min/year 32…131 °F (0…55 °C) |
| Checks | Program memory on each power up |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2…30 V |
| Reverse polarity protection | With |
| Discrete input number | 8 IEC 61131-2 Type 1 |
| Discrete input type | Resistive |
| Discrete input voltage | 24 V DC |
| Discrete input current | 4 mA |
| Counting frequency | 1 kHz discrete input |
| Voltage state 1 guaranteed | >= 15 V I1...IA and IH...IR discrete input circuit, >= 15 V IB...IG used as discrete input circuit |
| Voltage state 0 guaranteed | <= 5 V I1...IA and IH...IR discrete input circuit, <= 5 V IB...IG used as discrete input circuit |
| Current state 1 guaranteed | >= 1.2 mA IB...IG used as discrete input circuit), >= 2.2 mA I1...IA and IH...IR discrete input circuit) |
| Current state 0 guaranteed | <= 0.5 mA IB...IG used as discrete input circuit), <= 0.75 mA I1...IA and IH...IR discrete input circuit) |
| Input compatibility | 3-wire proximity sensors PNP discrete input |
| Input impedance | 12 kOhm IB...IG used as discrete input circuit, 7.4 kOhm I1...IA and IH...IR discrete input circuit |
| Number of Outputs | 6 relay |
| Output voltage limits | 24...250 V AC relay output), 5...30 V DC relay output) |
| Contacts type and composition | NO relay output |
| Output thermal current | 5 A for 2 outputs relay output, 8 A for 4 outputs relay output |
| Electrical durability | AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1, AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1, DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1, DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1 |
| Switching capacity in mA | >= 10 mA 12 V relay output) |
| Operating rate in Hz | 0.1 Hz at Ie)relay output, 10 Hz no load)relay output |
| Mechanical durability | 10000000 cycles relay output |
| [Uimp] rated impulse withstand voltage | 4 kV EN/IEC 60947-1 and EN/IEC 60664-1 |
| Response time | 10 ms from state 0 to state 1)relay output, 5 ms from state 1 to state 0)relay output |
| Connections - terminals | Screw terminals, 1 x 0.25...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable end, Screw terminals, 2 x 0.25...2 x 0.75 mm² 24 AWG...18 AWG) flexible with cable end, Screw terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) semi-solid, Screw terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) solid, Screw terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) solid |
| Tightening torque | 4.4 lbf.in (0.5 N.m) |
| Overvoltage category | III conforming to IEC 60664-1 |
| Net Weight | 0.49 lb(US) (0.22 kg) |
| Product Certifications | C-tick, UL, GL, CSA, GOST |
|---|---|
| Standards | IEC 61000-4-11, IEC 61000-4-6 level 3, IEC 60068-2-27 Ea, IEC 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-4 level 3, IEC 61000-4-5, IEC 61000-4-12, IEC 61000-4-2 level 3 |
| IP degree of protection | IP20 IEC 60529 terminal block), IP40 IEC 60529 front panel) |
| Environmental characteristic | EMC directive conforming to IEC 61000-6-2, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61131-2 zone B, Low voltage directive conforming to IEC 61131-2 |
| Disturbance radiated/conducted | Class B EN 55022-11 group 1 |
| Pollution degree | 2 IEC 61131-2 |
| Ambient air temperature for operation | -4…104 °F (-20…40 °C) in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -4…131 °F (-20…55 °C) IEC 60068-2-1 and IEC 60068-2-2 |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Operating altitude | 6561.68 ft (2000 m) |
| Maximum altitude transport | 10000 ft (3048 m) |
| Relative Humidity | 95 % without condensation or dripping water |
| Part number | SR3XT141BD |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110550115 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 0.22 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for SR3XT141BD is 853710.
The EAN (GTIN) of SR3XT141BD is 3389110550115.
SR3XT141BD ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
