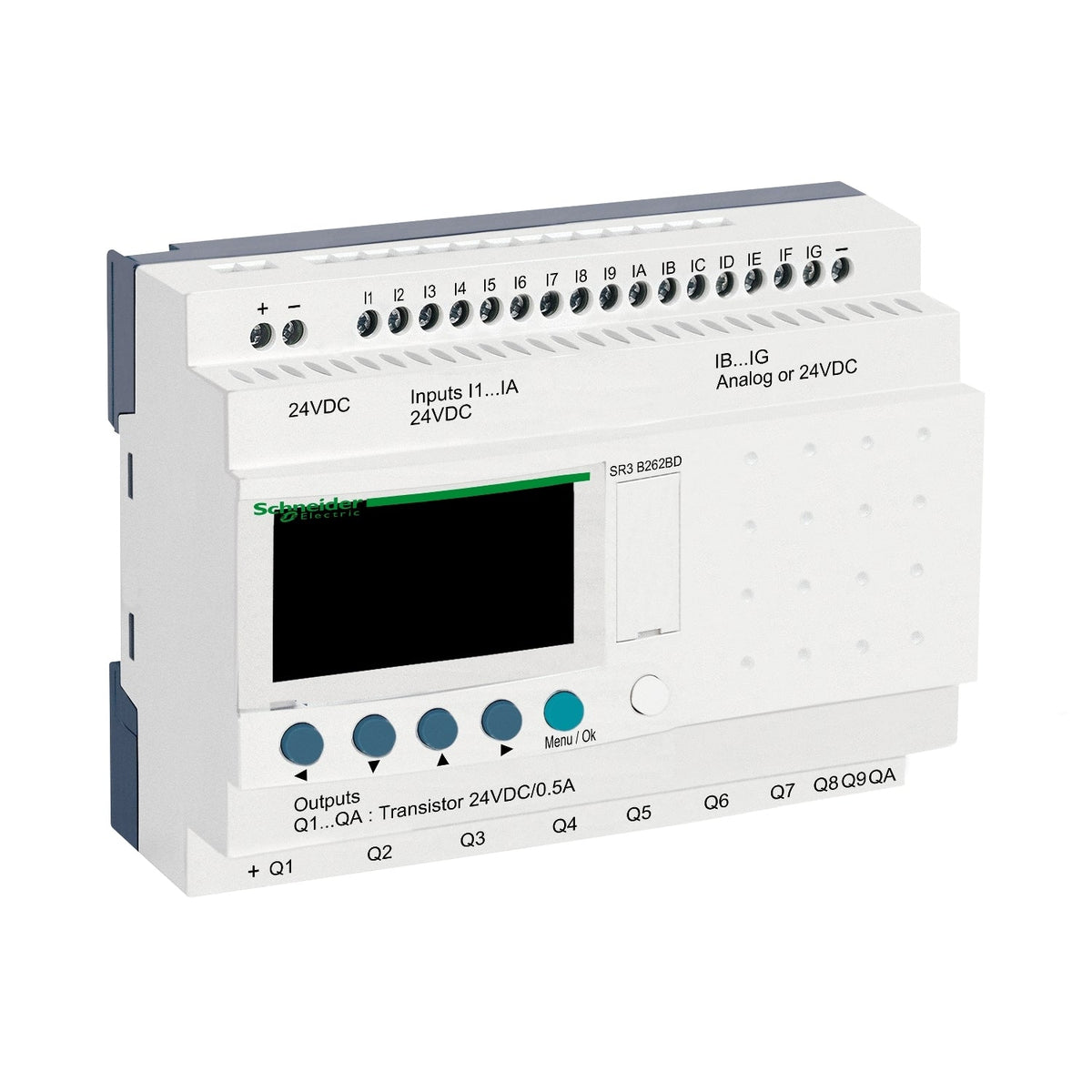

The Schneider Electric SR3B262BD is a Zelio Logic SR3 modular smart relay with 26 I/O (16 discrete inputs, 6 analogue-capable, 10 transistor outputs), a 24 V DC supply and a backlit LCD display with navigation buttons. It is a compact programmable controller for managing, monitoring and remote-controlling larger automation systems in industrial and commercial installations.
The SR3B262BD's ten transistor outputs switch in ≤ 1 ms with built-in overload, short-circuit and overvoltage protection, making it the faster-cycling counterpart to the relay-output SR3B261BD for 24 V DC loads such as solenoids or indicator banks. Because each transistor output is limited to 0.5–0.625 A, pick the relay-output SR3B261BD instead when a point needs to switch an AC load or a current above that limit.
| Range of Product | Zelio Logic |
|---|---|
| Product or Component Type | Modular smart relay |
| Local display | With |
|---|---|
| Number or control scheme lines | 0…500 FBD, 0…240 ladder |
| Cycle time | 6…90 ms |
| Backup time | 10 years 77 °F (25 °C) |
| Clock drift | 12 min/year 32…131 °F (0…55 °C), 6 s/month 77 °F (25 °C) |
| Checks | Program memory on each power up |
| [Us] rated supply voltage | 24 V |
| Supply voltage limits | 19.2…30 V |
| Maximum supply current | 180 mA with extensions), 70 mA without extension) |
| Power dissipation in W | 10 W with extensions, 5 W without extension |
| Reverse polarity protection | With |
| Discrete input number | 16 IEC 61131-2 Type 1 |
| Discrete input type | Resistive |
| Discrete input voltage | 24 V DC |
| Discrete input current | 4 mA |
| Counting frequency | 1 kHz discrete input |
| Voltage state 1 guaranteed | >= 15 V I1...IA and IH...IR discrete input circuit, >= 15 V IB...IG used as discrete input circuit |
| Voltage state 0 guaranteed | <= 5 V I1...IA and IH...IR discrete input circuit, <= 5 V IB...IG used as discrete input circuit |
| Current state 1 guaranteed | >= 1.2 mA IB...IG used as discrete input circuit), >= 2.2 mA I1...IA and IH...IR discrete input circuit) |
| Current state 0 guaranteed | <= 0.5 mA IB...IG used as discrete input circuit), <= 0.75 mA I1...IA and IH...IR discrete input circuit) |
| Input compatibility | 3-wire proximity sensors PNP discrete input |
| Analogue input number | 6 |
| Analogue Input Type | Common mode |
| Analogue input range | 0...24 V, 0...10 V |
| Temperature probe type | NTC 10k 77 °F (25 °C), NTC 1000k 77 °F (25 °C), KTY81 210/220/221/222/250, Pt 500 |
| Maximum permissible voltage | 30 V analogue input circuit |
| Analogue input resolution | 8 bits |
| LSB value | 39 mV analogue input circuit |
| Conversion time | Smart relay cycle time analogue input circuit |
| Conversion error | +/- 5 % 77 °F (25 °C) analogue input circuit, +/- 6.2 % 131 °F (55 °C) analogue input circuit |
| Repeat accuracy | +/- 2 % 131 °F (55 °C) analogue input circuit |
| Operating distance | 10 m between stations, with screened cable (sensor not isolated) analogue input circuit |
| Input impedance | 12 kOhm IB...IG used as analogue input circuit, 12 kOhm IB...IG used as discrete input circuit, 7.4 kOhm I1...IA and IH...IR discrete input circuit |
| Number of Outputs | 10 transistor |
| Output voltage | 24 V transistor output |
| Output voltage limits | 19.2...30 V DC transistor output) |
| [Uimp] rated impulse withstand voltage | 4 kV EN/IEC 60947-1 and EN/IEC 60664-1 |
| Load current | 0.5…0.625 A transistor output |
| [Ures] residual voltage | 2 V at state 1 transistor output |
| Overload protection | With transistor output |
| Short-circuit protection | With transistor output |
| Overvoltage protection | With transistor output |
| Clock | With |
| Response time | <= 1 ms from state 0 to state 1)transistor output, <= 1 ms from state 1 to state 0)transistor output |
| Connections - terminals | Screw terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) semi-solid, Screw terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) solid, Screw terminals, 1 x 0.25...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable end, Screw terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) solid, Screw terminals, 2 x 0.25...2 x 0.75 mm² 24 AWG...18 AWG) flexible with cable end |
| Tightening torque | 4.4 lbf.in (0.5 N.m) |
| Overvoltage category | III conforming to IEC 60664-1 |
| Net Weight | 0.7 lb(US) (0.3 kg) |
| Immunity to microbreaks | 1 ms |
|---|---|
| Product Certifications | C-tick, GOST, UL, CSA, GL |
| Standards | IEC 60068-2-27 Ea, IEC 61000-4-5, IEC 61000-4-11, IEC 61000-4-6 level 3, IEC 61000-4-12, IEC 61000-4-4 level 3, IEC 61000-4-3, IEC 61000-4-2 level 3, IEC 60068-2-6 Fc |
| IP degree of protection | IP20 IEC 60529 terminal block), IP40 IEC 60529 front panel) |
| Environmental characteristic | EMC directive conforming to IEC 61000-6-2, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61131-2 zone B, Low voltage directive conforming to IEC 61131-2 |
| Disturbance radiated/conducted | Class B EN 55022-11 group 1 |
| Pollution degree | 2 IEC 61131-2 |
| Ambient air temperature for operation | -4…104 °F (-20…40 °C) in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -4…131 °F (-20…55 °C) IEC 60068-2-1 and IEC 60068-2-2 |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Operating altitude | 6561.68 ft (2000 m) |
| Maximum altitude transport | 10000 ft (3048 m) |
| Relative Humidity | 95 % without condensation or dripping water |
| Part number | SR3B262BD |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110549997 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 0.3 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for SR3B262BD is 853710.
The EAN (GTIN) of SR3B262BD is 3389110549997.
SR3B262BD ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
