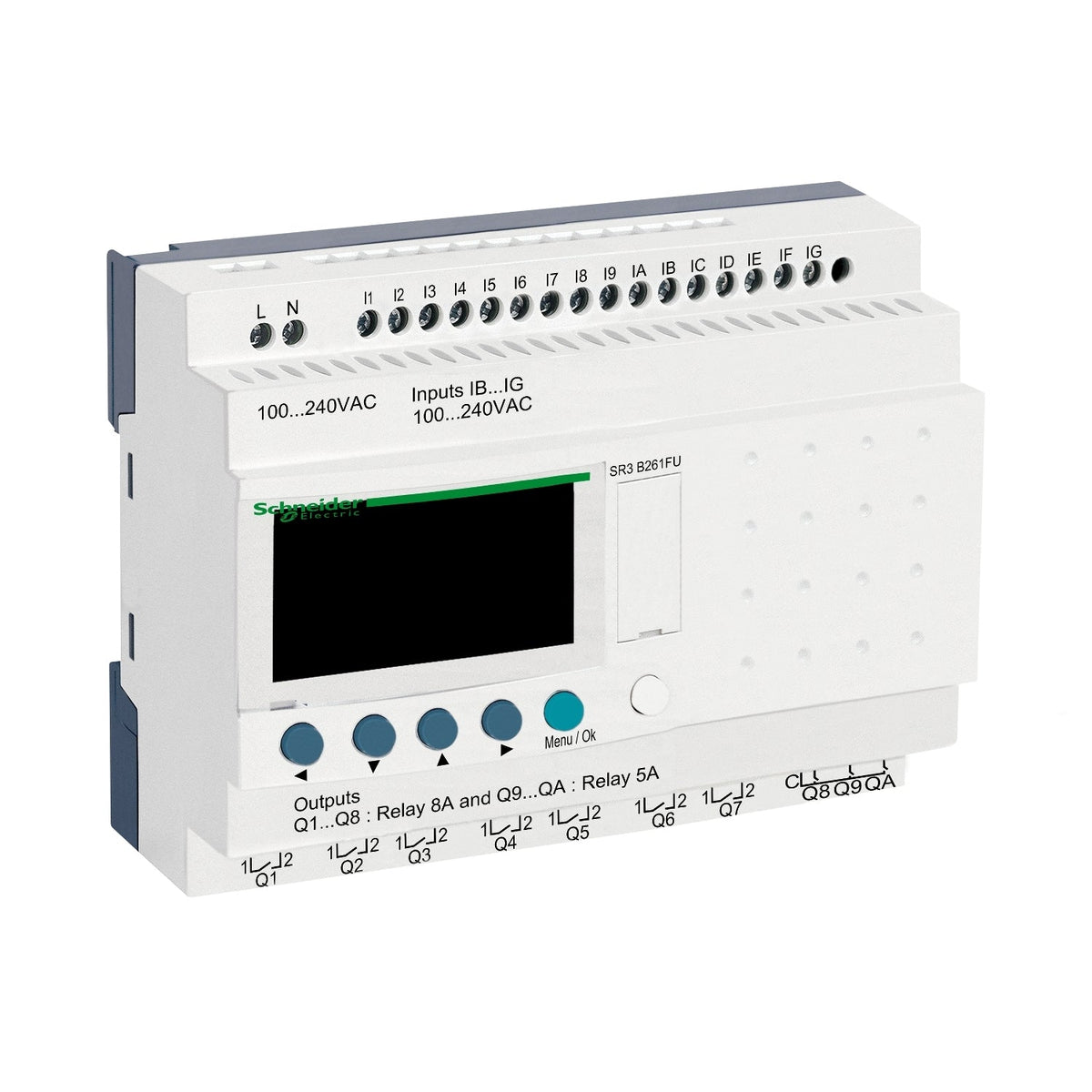

Schneider Electric SR3B261FU Zelio Logic SR3 26 I/O 100-240 V AC Display Relay Output Logic Module

The Schneider Electric SR3B261FU is a Zelio Logic SR3 modular smart relay with 26 I/O (16 discrete inputs, 10 relay outputs), a 100–240 V AC supply and a backlit LCD display with navigation buttons. It is a compact programmable controller for managing, monitoring and remote-controlling larger automation systems in industrial and commercial installations.

Technical Specifications

Certifications & Standards

• UL
• CSA
• GOST
• GL
• C-Tick
• IEC 61000-4-2
• IEC 61000-4-3
• IEC 61000-4-4
• IEC 61000-4-5
• IEC 61000-4-6
• IEC 61000-4-11
• IEC 61000-4-12
• IEC 60068-2-6
• IEC 60068-2-27

Selection Notes

The SR3B261FU runs directly from 100–240 V AC and offers the same 16 discrete input / 10 relay output count as the DC-supplied SR3B261BD, so it is the choice when the panel has no 24 V DC rail already available; the AC input circuit debounces in 50–255 ms versus millisecond-range response on the DC unit. Two of its ten relay outputs are current-limited to 5 A while the other eight carry 8 A — route higher-current loads to the 8 A-rated points.
