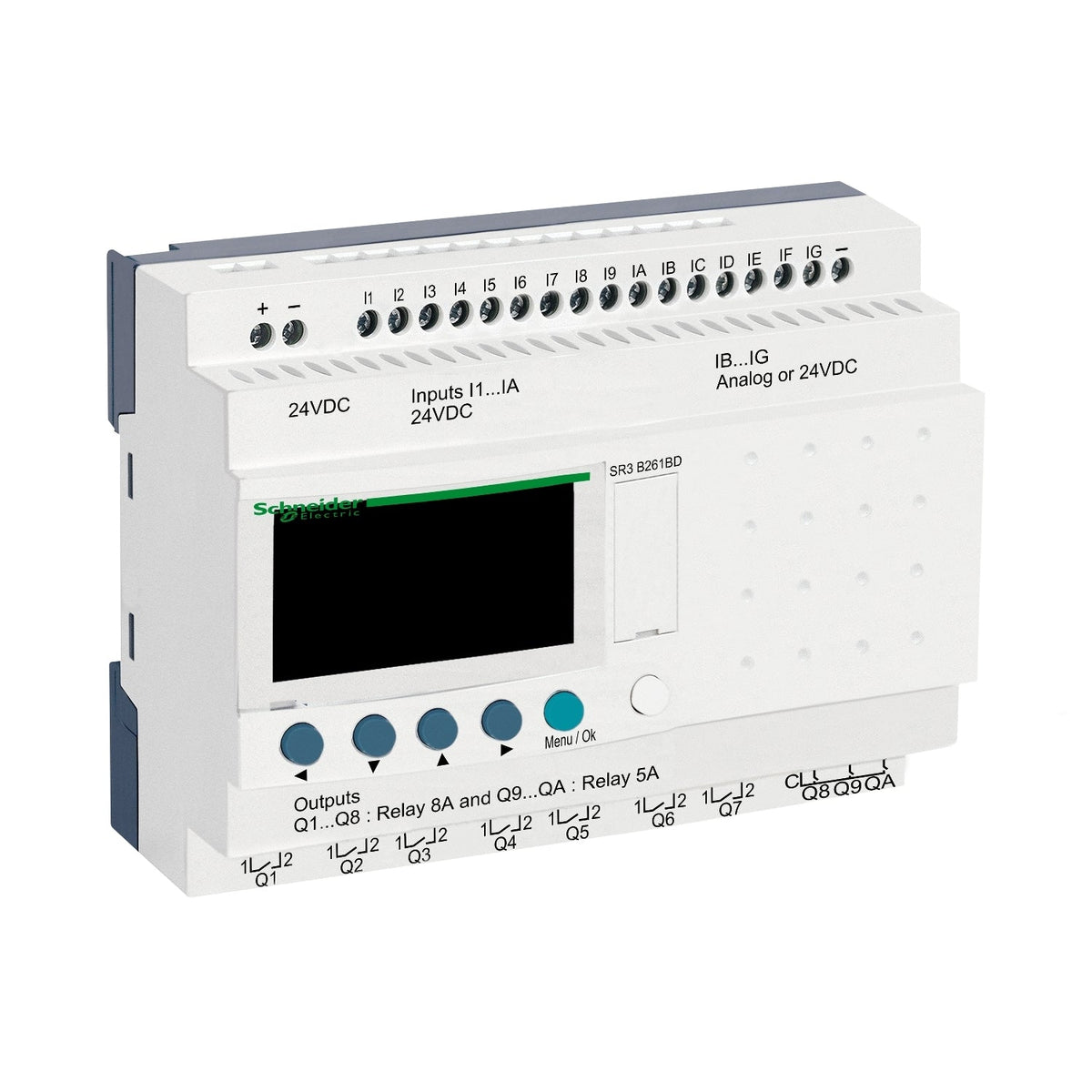

The Schneider Electric SR3B261BD is a Zelio Logic SR3 modular smart relay with 26 I/O (16 discrete inputs, 6 analogue-capable, 10 relay outputs), a 24 V DC supply and a backlit LCD display with navigation buttons. It is a compact programmable controller for managing, monitoring and remote-controlling larger automation systems in industrial and commercial installations.
The SR3B261BD steps up to 26 I/O (16 discrete, 6 analogue, 10 relay outputs) versus the 10 I/O SR3B101BD, so it fits larger stand-alone machines that would otherwise need an extension module on the smaller base. Two of its ten relay outputs are current-limited to 5 A while the other eight carry 8 A — route higher-current loads to the 8 A-rated points. Where the load needs faster, protected DC switching instead of relay contacts, the transistor-output SR3B262BD is the equivalent 26 I/O variant.
| Range of Product | Zelio Logic |
|---|---|
| Product or Component Type | Modular smart relay |
| Local display | With |
|---|---|
| Number or control scheme lines | 0…500 FBD, 0…240 ladder |
| Cycle time | 6…90 ms |
| Backup time | 10 years 77 °F (25 °C) |
| Clock drift | 12 min/year 32…131 °F (0…55 °C), 6 s/month 77 °F (25 °C) |
| Checks | Program memory on each power up |
| [Us] rated supply voltage | 24 V |
| Supply voltage limits | 19.2…30 V |
| Maximum supply current | 190 mA without extension), 300 mA with extensions) |
| Power dissipation in W | 10 W with extensions, 6 W without extension |
| Reverse polarity protection | With |
| Discrete input number | 16 IEC 61131-2 Type 1 |
| Discrete input type | Resistive |
| Discrete input voltage | 24 V DC |
| Discrete input current | 4 mA |
| Counting frequency | 1 kHz discrete input |
| Voltage state 1 guaranteed | >= 15 V I1...IA and IH...IR discrete input circuit, >= 15 V IB...IG used as discrete input circuit |
| Voltage state 0 guaranteed | <= 5 V I1...IA and IH...IR discrete input circuit, <= 5 V IB...IG used as discrete input circuit |
| Current state 1 guaranteed | >= 1.2 mA IB...IG used as discrete input circuit), >= 2.2 mA I1...IA and IH...IR discrete input circuit) |
| Current state 0 guaranteed | <= 0.5 mA IB...IG used as discrete input circuit), <= 0.75 mA I1...IA and IH...IR discrete input circuit) |
| Input compatibility | 3-wire proximity sensors PNP discrete input |
| Analogue input number | 6 |
| Analogue Input Type | Common mode |
| Analogue input range | 0...10 V, 0...24 V |
| Temperature probe type | NTC 10k 77 °F (25 °C), NTC 1000k 77 °F (25 °C), KTY81 210/220/221/222/250, Pt 500 |
| Maximum permissible voltage | 30 V analogue input circuit |
| Analogue input resolution | 8 bits |
| LSB value | 39 mV analogue input circuit |
| Conversion time | Smart relay cycle time analogue input circuit |
| Conversion error | +/- 5 % 77 °F (25 °C) analogue input circuit, +/- 6.2 % 131 °F (55 °C) analogue input circuit |
| Repeat accuracy | +/- 2 % 131 °F (55 °C) analogue input circuit |
| Operating distance | 10 m between stations, with screened cable (sensor not isolated) analogue input circuit |
| Input impedance | 12 kOhm IB...IG used as analogue input circuit, 12 kOhm IB...IG used as discrete input circuit, 7.4 kOhm I1...IA and IH...IR discrete input circuit |
| Number of Outputs | 10 relay |
| Output voltage limits | 24...250 V AC relay output), 5...30 V DC relay output) |
| Contacts type and composition | NO relay output |
| Output thermal current | 5 A for 2 outputs relay output, 8 A for 8 outputs relay output |
| Electrical durability | AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1, AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1, DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1, DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1 |
| Switching capacity in mA | >= 10 mA 12 V relay output) |
| Operating rate in Hz | 0.1 Hz at Ie)relay output, 10 Hz no load)relay output |
| Mechanical durability | 10000000 cycles relay output |
| [Uimp] rated impulse withstand voltage | 4 kV EN/IEC 60947-1 and EN/IEC 60664-1 |
| Clock | With |
| Response time | 10 ms from state 0 to state 1)relay output, 5 ms from state 1 to state 0)relay output |
| Connections - terminals | Screw terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) semi-solid, Screw terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) solid, Screw terminals, 1 x 0.25...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable end, Screw terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) solid, Screw terminals, 2 x 0.25...2 x 0.75 mm² 24 AWG...18 AWG) flexible with cable end |
| Tightening torque | 4.4 lbf.in (0.5 N.m) |
| Overvoltage category | III conforming to IEC 60664-1 |
| Net Weight | 0.9 lb(US) (0.4 kg) |
| Immunity to microbreaks | 1 ms |
|---|---|
| Product Certifications | GL, C-tick, CSA, UL, GOST |
| Standards | IEC 61000-4-2 level 3, IEC 61000-4-5, IEC 61000-4-6 level 3, IEC 61000-4-11, IEC 61000-4-3, IEC 60068-2-27 Ea, IEC 61000-4-12, IEC 60068-2-6 Fc, IEC 61000-4-4 level 3 |
| IP degree of protection | IP20 IEC 60529 terminal block), IP40 IEC 60529 front panel) |
| Environmental characteristic | EMC directive conforming to IEC 61000-6-2, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61131-2 zone B, Low voltage directive conforming to IEC 61131-2 |
| Disturbance radiated/conducted | Class B EN 55022-11 group 1 |
| Pollution degree | 2 IEC 61131-2 |
| Ambient air temperature for operation | -4…104 °F (-20…40 °C) in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -4…131 °F (-20…55 °C) IEC 60068-2-1 and IEC 60068-2-2 |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Operating altitude | 6561.68 ft (2000 m) |
| Maximum altitude transport | 10000 ft (3048 m) |
| Relative Humidity | 95 % without condensation or dripping water |
| Part number | SR3B261BD |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110549980 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 0.4 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
