Schneider Electric SR2A101BD Zelio Logic SR2 10 I/O 24 V DC with Display 4 Relay Outputs Logic Module

% $-202.53

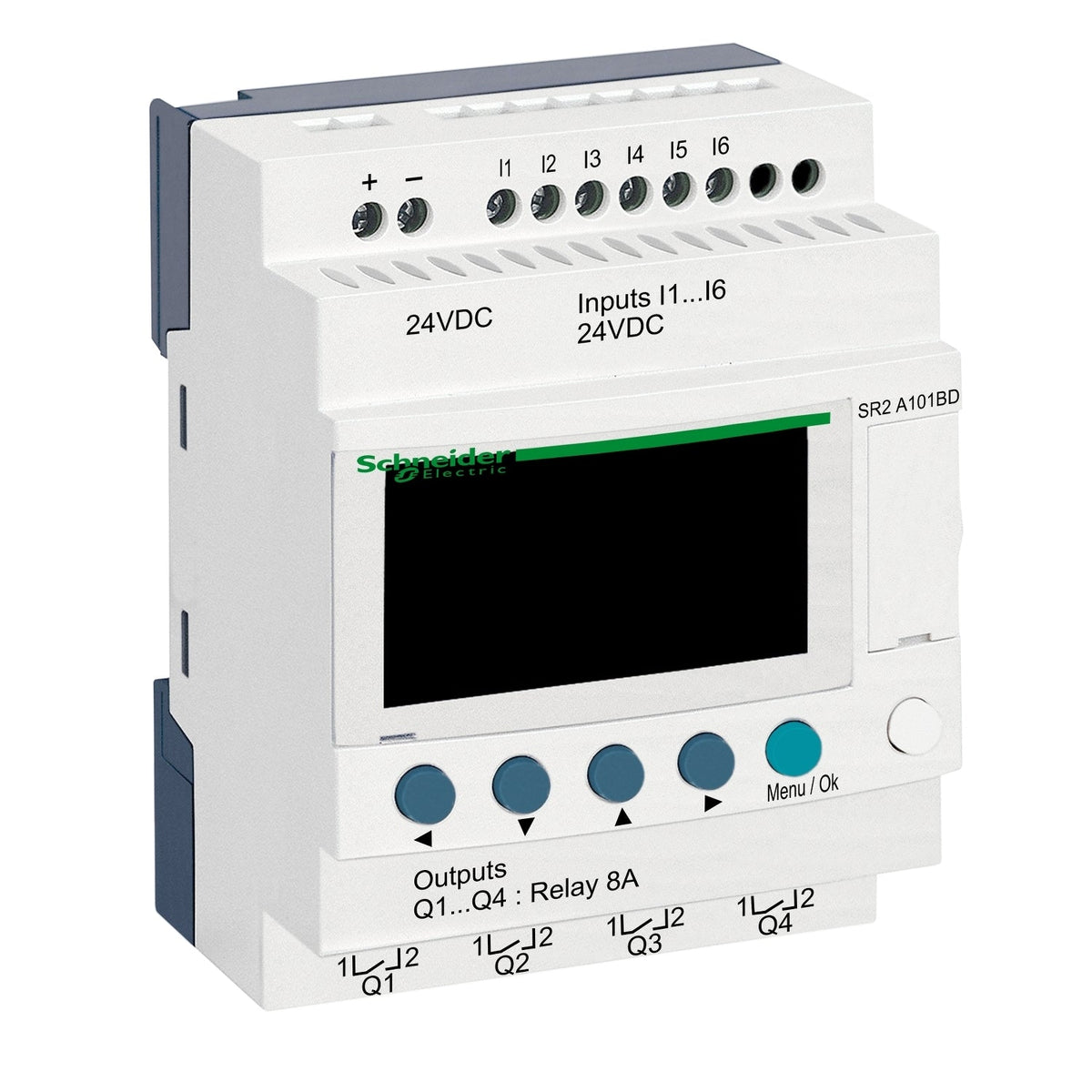

Schneider Electric SR2A101BD Zelio Logic SR2 10 I-O Smart Relay
Schneider Electric SR2A101BD Zelio Logic SR2 10 I-O Smart Relay

Schneider Electric SR2A101BD Zelio Logic SR2 10 I/O 24 V DC with Display 4 Relay Outputs Logic Module

Brand: Schneider Electric
Reference No: SR2A101BD
Catalog No: SR2A101BD
Series: Zelio Logic
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$202.53

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric SR2A101BD is a Zelio Logic SR2 compact smart relay with 6 discrete inputs and 4 relay outputs rated 8 A each, powered from 24 V DC. Its built-in LCD display and navigation buttons, without a real-time clock, let you program, monitor, and diagnose simple automation tasks directly on the unit.

Technical Specifications

Reference SR2A101BD
GTIN 3389110547535
Brand Schneider Electric
Range Zelio Logic
Product Type Compact smart relay
Local Display With
Clock Without
Program Capacity 0-240 ladder
Supply Voltage 24 V DC
Supply Voltage Limits 19.2-30 V
Maximum Supply Current 100 mA (without extension)
Power dissipation 3 W (without extension)
Discrete Input Number 6
Discrete Input Voltage 24 V DC
Discrete Input Current 4 mA
Number of Outputs 4 relay
Output Voltage Limits 24-250 V AC / 5-30 V DC
Output Thermal Current 8 A for all 4 outputs
Cycle Time 6-90 ms
Backup Time 10 years at 25°C
IP Degree of Protection IP20 (terminal block) / IP40 (front panel)
Ambient Operating Temperature -20 to 55°C
Rated Impulse Withstand Voltage [Uimp] 4 kV (EN/IEC 60947-1, EN/IEC 60664-1)
Net Weight 0.25 kg

Certifications & Standards

  • CSA
  • UL
  • C-tick
  • GL
  • GOST
  • IEC 61000-4-2
  • IEC 61000-4-3
  • IEC 61000-4-4
  • IEC 61000-4-5
  • IEC 61000-4-6
  • IEC 61000-4-11
  • IEC 61000-4-12
  • IEC 60068-2-6 Fc
  • IEC 60068-2-27 Ea

Selection Notes

The SR2A101BD is the 24 V DC member of the 10-I/O Zelio Logic SR2 compact range, without a real-time clock, for applications that need only event-based logic. Where more I/O is needed, the 12- and 20-I/O SR2 variants in the same family add points without changing the programming environment.

Technical Details

Short Description
Zelio Logic SR2 compact smart relay, 6 DI, 4 relay DO, 24 V DC supply, no clock, built-in display.
Protection Type
IP20
Catalog No
SR2A101BD
Delivery Date (Days)
30 days
Model Number
Zelio Logic SR2
Tariff Code
853710
