Schneider Electric NTSXTB18000XH Modicon Edge I/O NTS screw terminal block 18-point - 5 mm pitch

Schneider Electric NTSXTB18000XH NTS Screw Terminal Block 18-Point Without Cover Remote I/O Module

Name: Schneider Electric NTSXTB18000XH NTS Screw Terminal Block 18-Point Without Cover Remote I/O Module
Brand: Schneider Electric
SKU: NTSXTB18000XH
Price: 22.24 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: NTSXTB18000XH

Catalog No: NTSXTB18000XH

Series: Modicon Edge I/O NTS

Tariff Code (HS): 853710

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$22.24

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

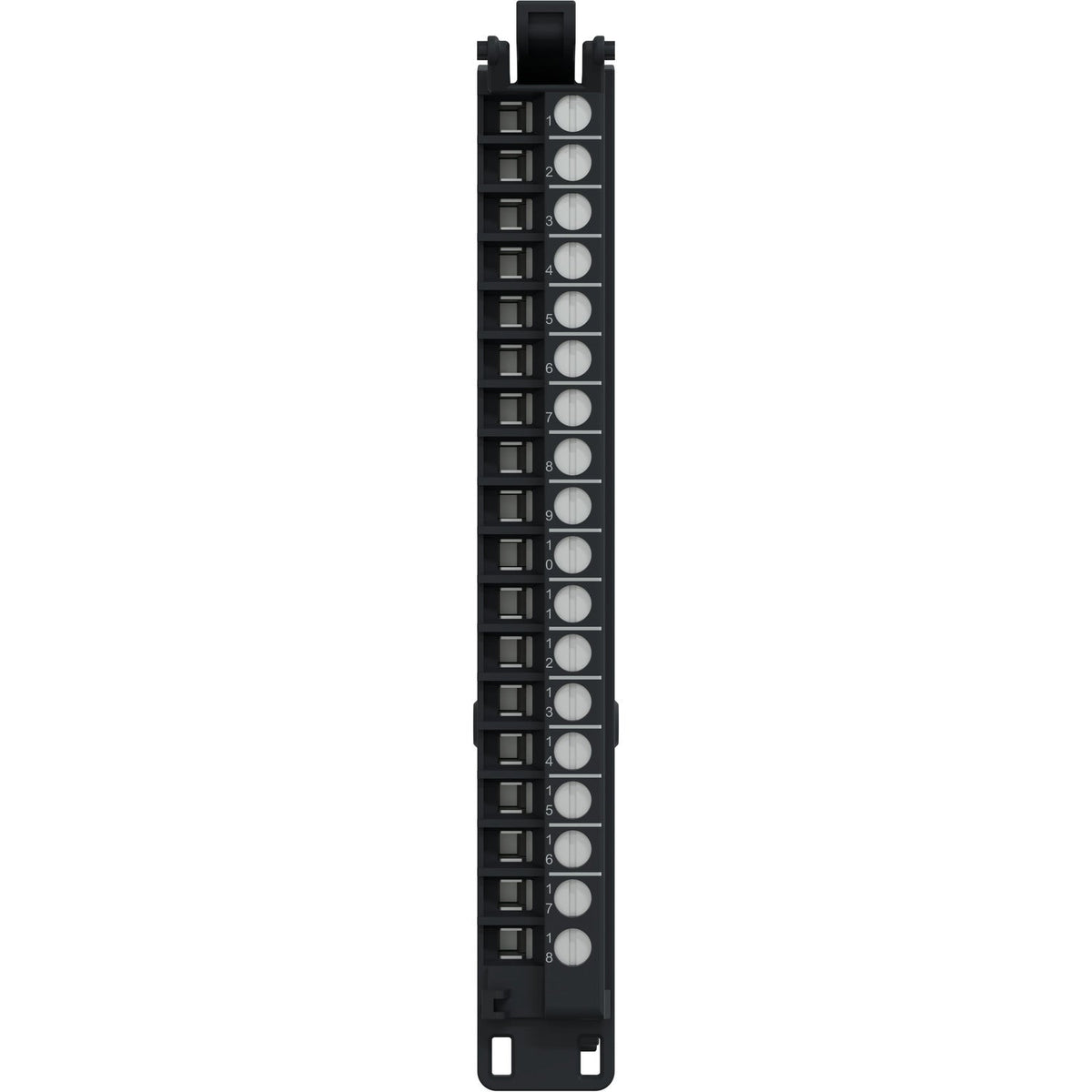

The Schneider Electric NTSXTB18000XH is a 18-point screw terminal block from the Modicon Edge I/O NTS range, built for the high-height (121 mm) I/O module housing. It ships without a cover, uses a 5 mm pitch, and handles DC-wired I/O channels. The H suffix marks the hardened variant, rated IP20 from -40 to 70 degrees C for extended-temperature panels.

Technical Specifications

Reference	NTSXTB18000XH
Brand	Schneider Electric
GTIN	3606486878491
Range of Product	Modicon Edge I/O NTS
Product or Component Type	Terminal block
Connector Type	Screw connector
Pin Number	18
Pitch	5 mm
Cover	Without cover
Height	4.3 in (110 mm)
Width	0.6 in (14 mm)
Net Weight	0.123 lb(US) (0.056 kg)
Product Compatibility	NTS high height I/O module (discrete I/O, analog input, counting, field device master, passive, motion expert modules)
IP Degree of Protection	IP20
Ambient Air Temperature for Operation	-40 to 70 C

Certifications & Standards

CE
UKCA
cULus
RCM
EN/IEC 61131-2

Selection Notes

Choose the high-height variant to match the NTS I/O module body (121 mm); a low-height terminal block will not seat correctly on a high-height module and vice versa. The uncovered version leaves the connection points exposed for faster field wiring where touch-safety is handled elsewhere in the enclosure. Screw connectors on this block are removable from the module front face, so a wiring fault or module swap does not require re-terminating the field cabling.

Technical Details

Short Description

Modicon Edge I/O NTS screw terminal block, 18 points, 5 mm pitch, high module, IP20.

Mounting Type

Front-face plug-in on NTS high-height I/O module

Protection Type

IP20

Catalog No

NTSXTB18000XH

Delivery Date (Days)

30 days

Model Number

NTS

Tariff Code

853710
