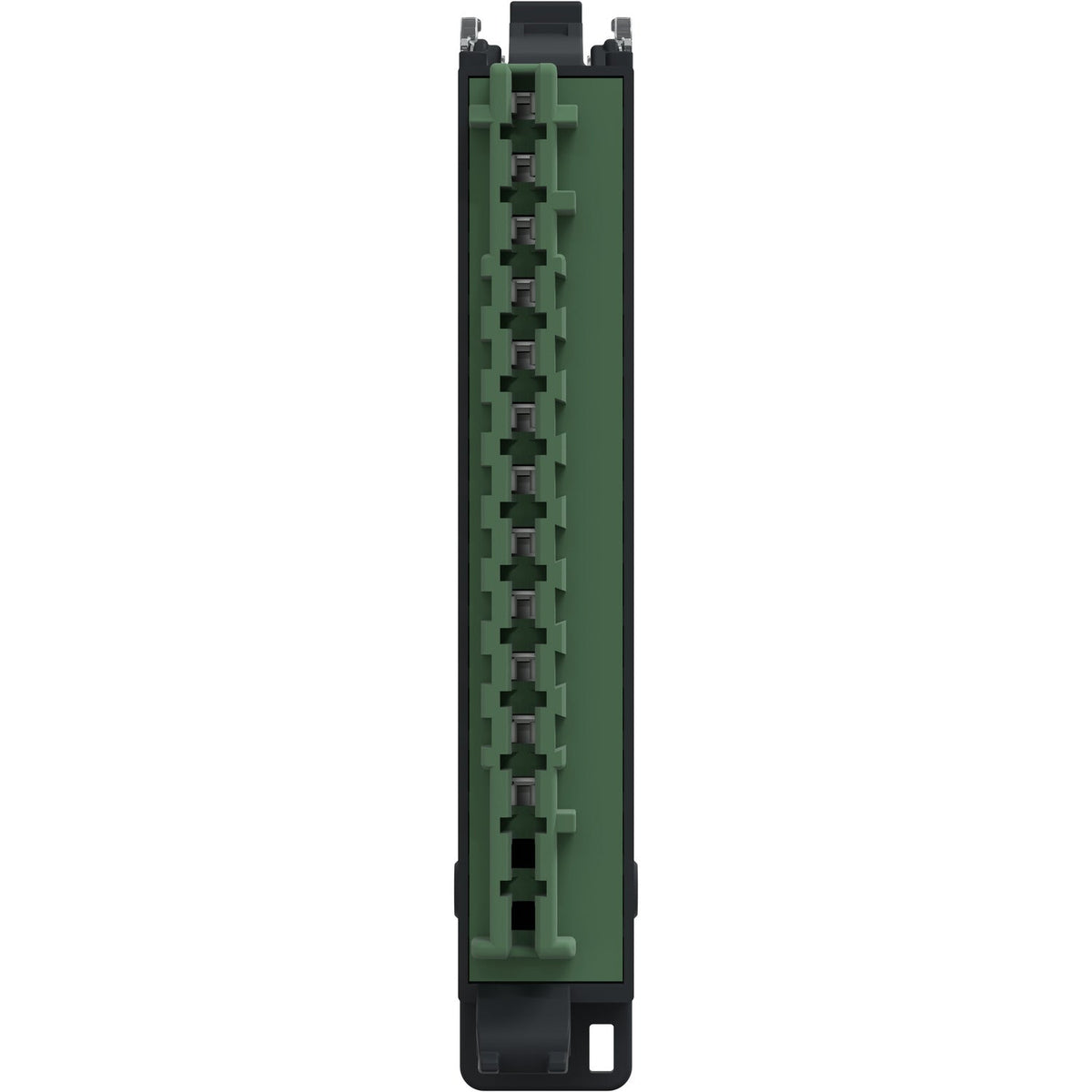

The Schneider Electric NTSXTB12011H is a 12-point screw terminal block from the Modicon Edge I/O NTS range, built for the low-height (100 mm) I/O module housing. It ships with a snap-on cover, uses a 5 mm pitch, and handles AC-wired discrete I/O channels. The H suffix marks the hardened variant, rated IP20 from -40 to 70 degrees C for extended-temperature panels.
Choose the low-height variant to match the NTS I/O module body (100 mm); a low-height terminal block will not seat correctly on a high-height module and vice versa. The covered version adds a snap-on plastic shroud over the screw heads for touch-safety in populated panels. Screw connectors on this block are removable from the module front face, so a wiring fault or module swap does not require re-terminating the field cabling.
| Range of Product | Modicon Edge I/O NTS |
|---|---|
| Accessory / separate part category | Connection accessories |
| Product or Component Type | Terminal block |
| Accessory / separate part designation | Terminal block for low height I/O module |
| Accessory / separate part destination | I/O module |
| Quantity per Set | Set of 1 |
| Connector Type | Screw connector |
| Pin number | 12 |
| Height | 3.5 in (90 mm) |
| Width | 0.6 in (14 mm) |
| Net Weight | 0.128 lb(US) (0.058 kg) |
| Accessory / Separate Part Type | Terminal block |
| Product Compatibility | NTS low height I/O module |
|---|---|
| Color | Gray |
| IP Degree of Protection | IP20 |
|---|---|
| Protective treatment | None |
| Marking | CURus |
| Product certifications | CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Standards | EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 & type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5 |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
| Ambient air temperature for operation | -40…158 °F (-40…70 °C) |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating, 2000 m...5000 m with derating |
| Pollution degree | 2 |
| Vibration resistance | 1 g without accessory, 2 g with accessory |
| Shock resistance | 15 g 11 ms with and without accessory) |
| Part number | NTSXTB12011H |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606486878422 |
| Warranty (in months) | 18 |
|---|
| Country of origin | CN |
|---|---|
| Shipping weight | 0.058 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for NTSXTB12011H is 853710.
The EAN (GTIN) of NTSXTB12011H is 3606486878422.
NTSXTB12011H ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
