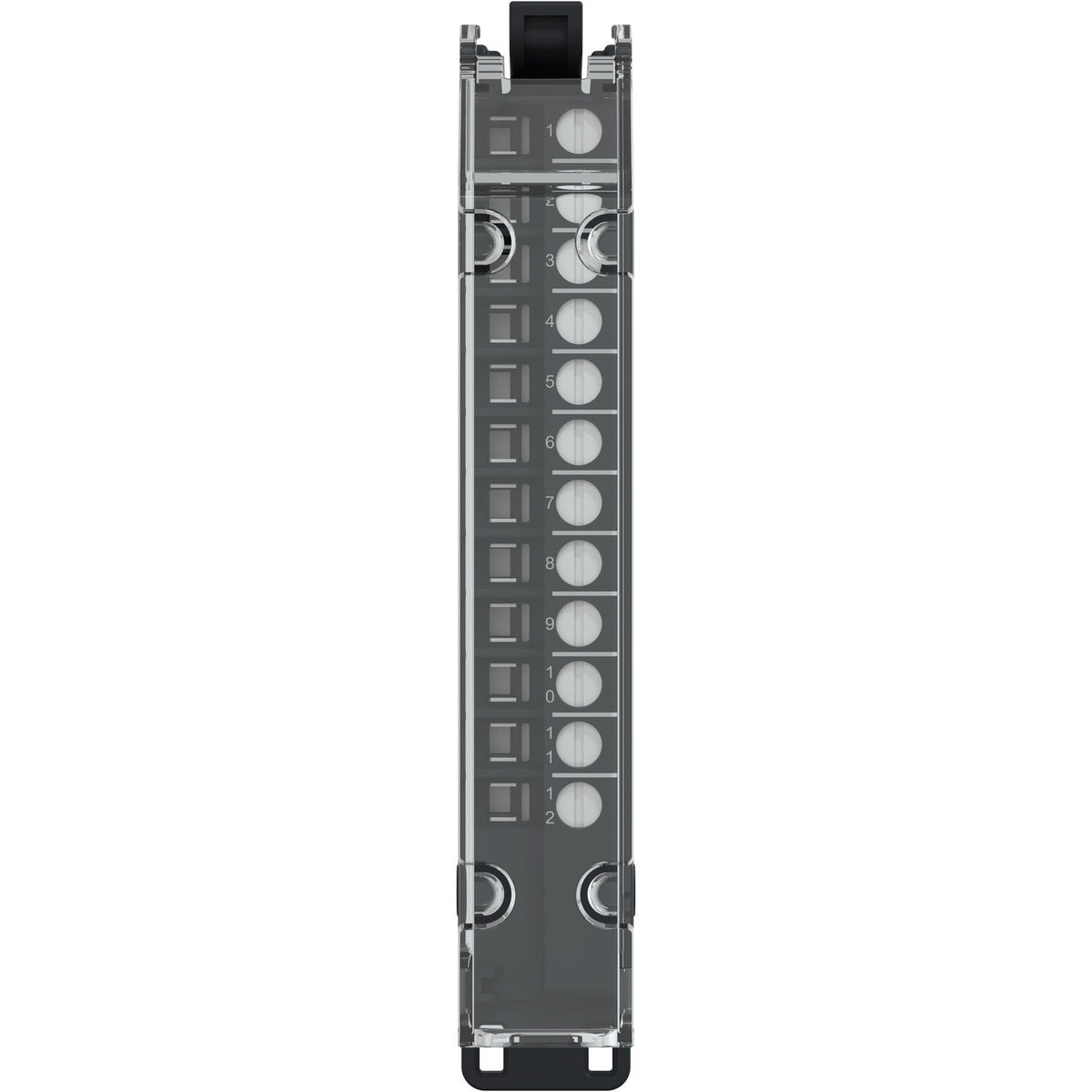

The Schneider Electric NTSXTB12001H is a Modicon Edge I/O NTS screw terminal block with a plastic cover, sized for the 100 mm-high low-height I/O modules. It has 12 connection points on a 5 mm pitch and mounts removably to the module's front face, allowing quick disconnection for maintenance without unwiring each conductor. It is rated for the severe-environment -40...70 degC range with conformal-coated contacts.
The plastic cover on the NTSXTB12001H shields the 12 screw terminals from accidental contact during panel work, the safer choice on densely wired panels or where touch protection is specified. Where faster access for wiring changes matters more than cover protection, the uncovered NTSXTB12000H is the correct choice instead; both fit the same 100 mm-high low-height discrete and analog I/O modules.
| Range of Product | Modicon Edge I/O NTS |
|---|---|
| Accessory / separate part category | Connection accessories |
| Product or Component Type | Terminal block |
| Accessory / separate part designation | Terminal block for low height I/O module |
| Accessory / separate part destination | I/O module |
| Quantity per Set | Set of 1 |
| Connector Type | Screw connector |
| Pin number | 12 |
| Height | 3.5 in (90 mm) |
| Width | 0.6 in (14 mm) |
| Net Weight | 0.128 lb(US) (0.058 kg) |
| Accessory / Separate Part Type | Terminal block |
| Product Compatibility | NTS low height I/O module |
|---|---|
| Color | Gray |
| IP Degree of Protection | IP20 |
|---|---|
| Protective treatment | None |
| Marking | CURus |
| Product certifications | CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Standards | EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 & type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5 |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
| Ambient air temperature for operation | -40…158 °F (-40…70 °C) |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating, 2000 m...5000 m with derating |
| Pollution degree | 2 |
| Vibration resistance | 1 g without accessory, 2 g with accessory |
| Shock resistance | 15 g 11 ms with and without accessory) |
| Part number | NTSXTB12001H |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606486878408 |
| Warranty (in months) | 18 |
|---|
| Country of origin | CN |
|---|---|
| Shipping weight | 0.058 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for NTSXTB12001H is 853710.
The EAN (GTIN) of NTSXTB12001H is 3606486878408.
NTSXTB12001H ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
