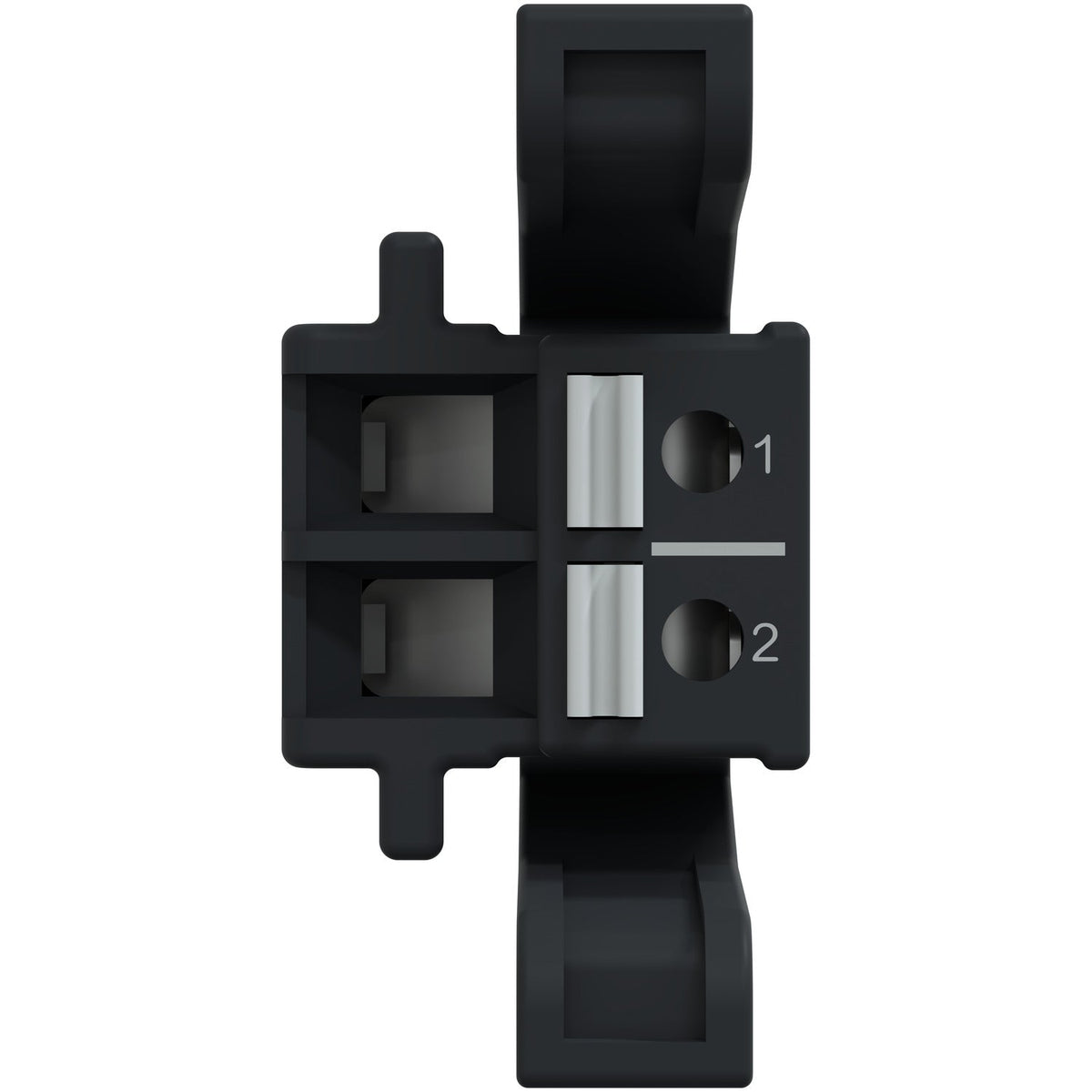

The Schneider Electric NTSXTB02230H is a Modicon Edge I/O NTS spring terminal block with a plastic cover, sized for the NTSPFB1002H power supply module. It has 2 connection points on a 5 mm pitch and mounts removably to the module's front face, allowing quick disconnection for maintenance without unwiring each conductor. It is rated for the severe-environment -40...70 degC range with conformal-coated contacts.
The NTSXTB02230H is the spring-connector, covered terminal block for the NTSPFB1002H power supply module, suited to panels standardizing on tool-free push-in wiring. Order the screw-connector NTSXTB02030H instead where a traditional screwdriver termination is preferred. Both share the same 2-point, 5 mm pitch footprint, so the choice is purely about termination method, not electrical rating.
| Range of Product | Modicon Edge I/O NTS |
|---|---|
| Accessory / separate part category | Connection accessories |
| Product or Component Type | Terminal block |
| Accessory / separate part designation | Terminal block for power supply module |
| Accessory / separate part destination | Power supply |
| Quantity per Set | Set of 1 |
| Connector Type | Spring connector |
| Pin number | 2 |
| Height | 1.2 in (30 mm) |
| Width | 0.6 in (14 mm) |
| Net Weight | 0.009 lb(US) (0.004 kg) |
| Accessory / Separate Part Type | Terminal block |
| Product Compatibility | NTSPFB1002H module |
|---|---|
| Color | Gray |
| IP Degree of Protection | IP20 |
|---|---|
| Protective treatment | None |
| Marking | CURus |
| Product certifications | CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Standards | EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 & type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5 |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
| Ambient air temperature for operation | -40…158 °F (-40…70 °C) |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating, 2000 m...5000 m with derating |
| Pollution degree | 2 |
| Vibration resistance | 1 g without accessory, 2 g with accessory |
| Shock resistance | 15 g 11 ms with and without accessory) |
| Part number | NTSXTB02230H |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606486878385 |
| Warranty (in months) | 18 |
|---|
| Country of origin | CN |
|---|---|
| Shipping weight | 0.004 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for NTSXTB02230H is 853710.
The EAN (GTIN) of NTSXTB02230H is 3606486878385.
NTSXTB02230H ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
