Modicon Edge I/O NTSSchneider Electric NTSPFB1002HK Modicon Edge I/O NTS 24VDC Bus/Field Power Supply Hardened PLC Power Supply
Modicon Edge I/O NTS power supply module, 24V DC, bus and field, hardened, IP20.
Description
About the NTSPFB1002HK
About the NTSPFB1002HK

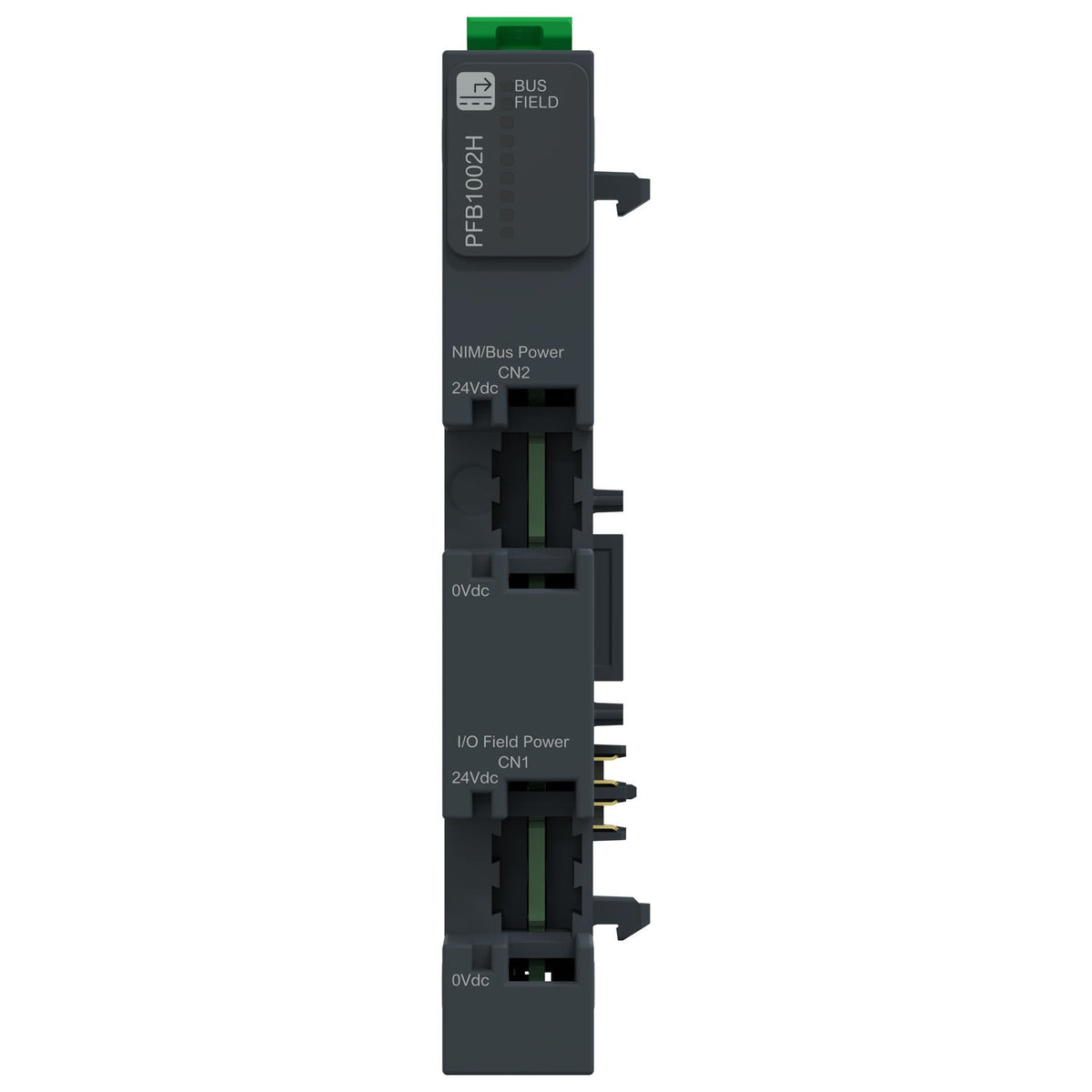

The Schneider Electric NTSPFB1002HK is a Modicon Edge I/O NTS power distribution module kit that feeds both the I/O bus (3.5 A) and the field supply (10.5 A) from a 24 V DC input, pre-assembled on its NTSXBA0103H base for severe-environment use. It protects against overvoltage, overload, short circuit and reverse polarity on both rails, running across an extended -40...70 degC range with conformal-coated electronics. It mounts on a DIN rail at the head of an NTS cluster.
Certifications & Standards
- CE
- UKCA
- cULus
- RCM
- EN/IEC 61131-2
Selection Notes
The NTSPFB1002HK feeds both the bus (3.5 A) and field (10.5 A) rails from a single 24 V DC input, the simplest choice for a cluster where all downstream I/O modules share one field voltage. When the field devices need a separately fused or switched supply from the bus electronics, the field-only NTSPFD1002HK is the correct module instead, paired with a separate bus supply upstream. The hardened build's conformal coating and -40...70 degC range matter in panels exposed to vibration or condensation.
Specification
Full specification
Main 9
| Range of Product | Modicon Edge I/O NTS |
|---|---|
| Product or Component Type | Power distribution module kit |
| Kit composition | NTSPFB1002H module, NTSXBA0103H base |
| Mandatory accessory | 2x NTSXTB02*30H terminal block |
| Product Compatibility | NTSN..... |
| Range Compatibility | Logic/motion controller - Modicon M262, Modicon M580, Third party |
| Device Application | Industrial application in severe environment |
| [Us] rated supply voltage | 24 V DC |
| Power supply output current | 3.5 A for bus supply, 10.5 A for field supply |
Complementary 13
| Supply voltage limits | 20.4…28.8 V DC |
|---|---|
| Input current | 3.5 mA for bus supply, 10.5 mA for field supply |
| Maximum power dissipation in W | 1.562 W |
| Hot swapping fallback | Yes |
| Protection Type | Overvoltage protection for bus and field, Undervoltage protection for bus and field, Overload protection for bus and field, Short-circuit protection for bus and field, Reverse polarity protection for bus and field, Inrush current control for field, Voltage surge protection for bus and field, Short power cut for bus |
| Typical current consumption | 3500 mA on the Bus current, 10500 mA on the field current |
| Local signalling | 1 LED green bus, 1 LED green external power supply |
| Housing Colour | Grey |
| Mounting support | Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715 |
| Height | 3.9 in (100 mm) |
| Width | 0.6 in (15 mm) |
| Depth | 3.1 in (80 mm) |
| Net Weight | 0.172 lb(US) (0.078 kg) |
Environment 13
| IP Degree of Protection | IP20 |
|---|---|
| Protective treatment | Conformal coating |
| Marking | CE, UKCA, CULus, RCM |
| Product certifications | CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Standards | EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 & type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5 |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
| Ambient air temperature for operation | -40…158 °F (-40…70 °C) |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating, 2000 m...5000 m with derating |
| Pollution degree | 2 |
| Vibration resistance | 1 g without accessory, 2 g with accessory |
| Shock resistance | 15 g 11 ms with and without accessory) |
Show all 48 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | NTSPFB1002HK |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606486878132 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 0.078 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
