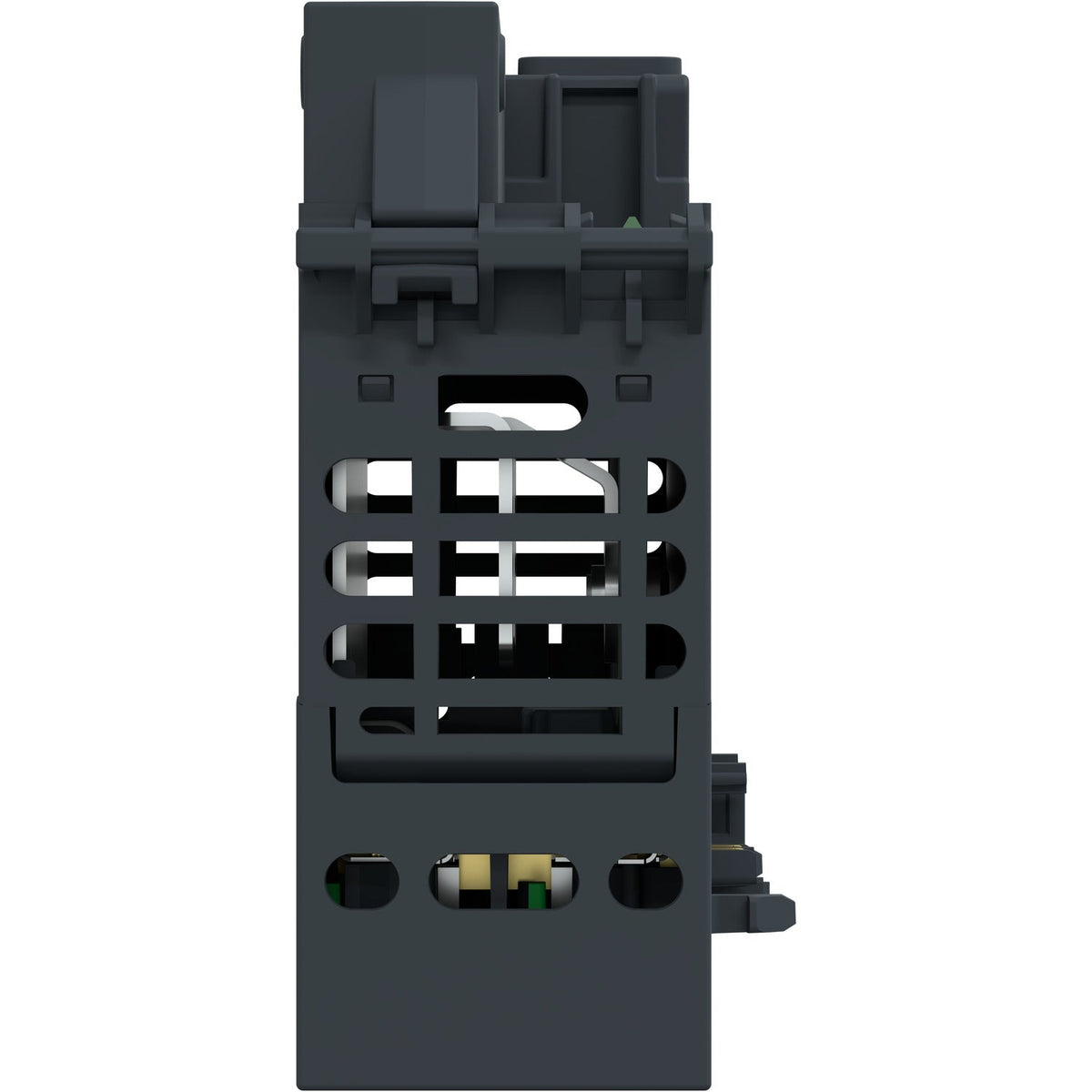

Schneider Electric NTSDRC0415K Modicon Edge I/O NTS Relay Output 4Ch NO/NC 5A Remote I/O Module

The Schneider Electric NTSDRC0415K is a Modicon Edge I/O NTS relay output module kit with 4 isolated form-C (NO/NC) relay channels rated 5 A, pre-assembled on its NTSXBA0200H base. Each channel switches 5...125 V DC or 24...250 V AC loads through a 2-wire connection, covering a -20...60 degC operating range. It mounts on a DIN rail and connects to Modicon M262 or M580 controllers.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• cULus
• RCM
• EN/IEC 61131-2

Selection Notes

The 5 A per-channel switching current on the NTSDRC0415K is more than double the 2 A of the NTSDRC0215K, suited to contactor coils or small motor loads rather than only pilot signals. The form-C contacts give both NO and NC feedback per channel for fail-safe interlocks. For panels exposed to vibration or condensation, the hardened NTSDRC0415HK shares the same 4-channel, 5 A rating with conformal coating and an extended -40...70 degC range.
