Part number
NTSDRC0415HK
$163.19 On request Dispatch — · From TürkiyeGet a Quote
Modicon Edge I/O NTS

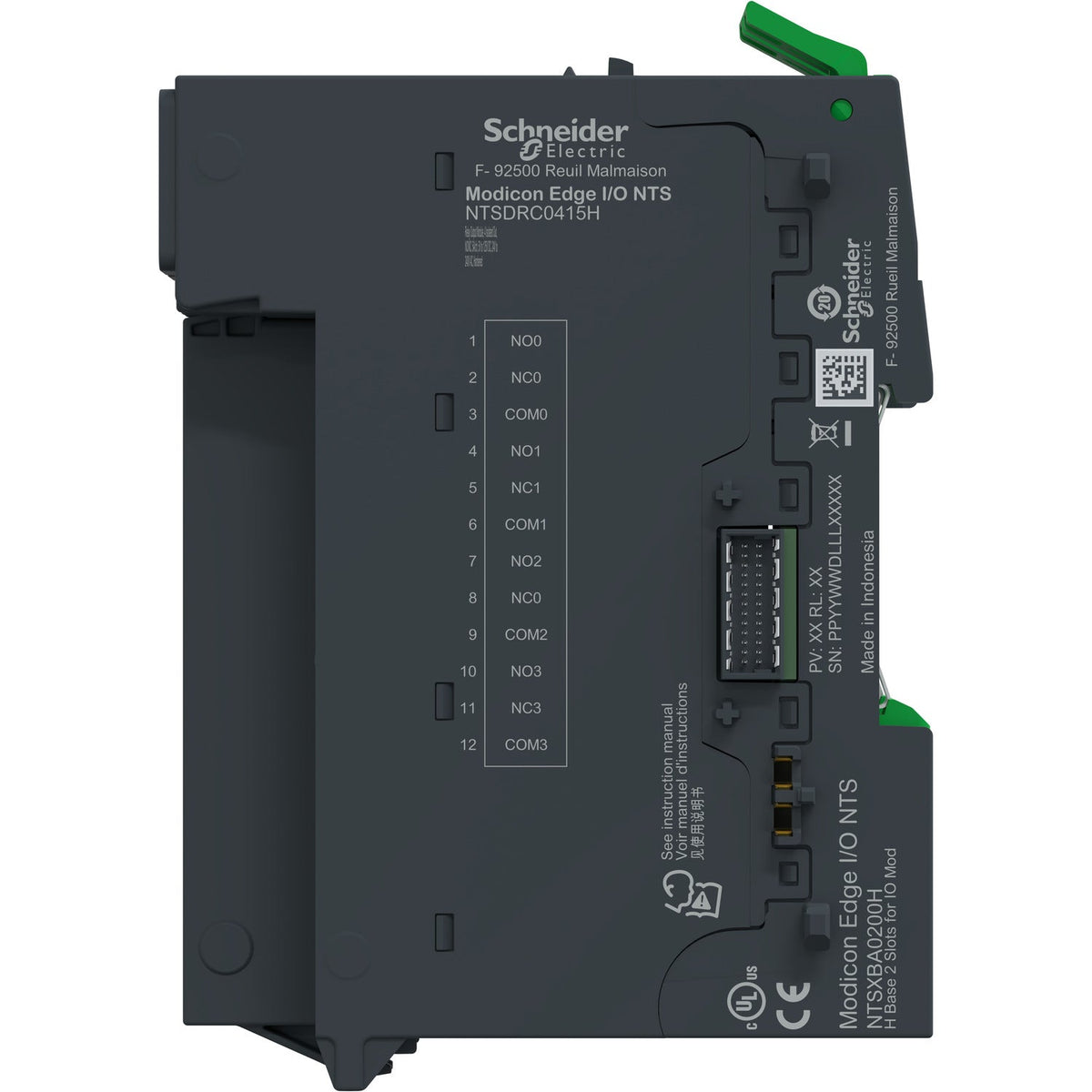

Schneider Electric NTSDRC0415HK Modicon Edge I/O NTS Relay Output 4Ch NO/NC 5A Hardened Remote I/O Module

Modicon Edge I/O NTS relay output module + base, 4 isolated NO/NC channels, 5A, hardened.

Range of Product
Modicon Edge I/O NTS
Product or Component Type
Discrete output module kit
Kit composition
NTSDRC0415H module, NTSXBA0200H base
Mandatory accessory
NTSXTB12_1_H terminal block
Product Compatibility
NTSN.....
Range Compatibility
Logic/motion controller - Modicon M262, Modicon M580, Third party
EAN
3606486877807
Description

About the NTSDRC0415HK

The Schneider Electric NTSDRC0415HK is a Modicon Edge I/O NTS relay output module kit with 4 isolated form-C (NO/NC) relay channels rated 5 A, pre-assembled on its NTSXBA0200H base for severe-environment use. Each channel switches 5...125 V DC or 24...250 V AC loads through a 2-wire connection, running across an extended -40...70 degC range with conformal-coated electronics. It mounts on a DIN rail and connects to Modicon M262 or M580 controllers.

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • RCM
  • EN/IEC 61131-2

Selection Notes

The 5 A per-channel rating on the NTSDRC0415HK is more than double the 2 A of the NTSDRC0215K, suited to directly switching contactor coils or small motor loads rather than only pilot signals. The form-C contacts give both NO and NC feedback per channel for fail-safe interlocks. Choose this hardened build over the standard NTSDRC0415K when the panel sees vibration, condensation, or ambient swings beyond the -20...60 degC standard range; the electrical rating is identical between the two.

Specification

Full specification

64 values · Last verified 30 Oct 2026

Main 11

Range of Product Modicon Edge I/O NTS
Product or Component Type Discrete output module kit
Kit composition NTSDRC0415H module, NTSXBA0200H base
Mandatory accessory NTSXTB12_1_H terminal block
Product Compatibility NTSN.....
Range Compatibility Logic/motion controller - Modicon M262, Modicon M580, Third party
Device Application Industrial application in severe environment
Discrete output number 4
Group of output channels 4 groups of 1 channels
Discrete output voltage 24...250 V AC, 5...125 V DC
Operating Mode Asynchronous

Complementary 26

Output wiring mode 2 wires
Discrete output current 5 A maximum per output at 30 Vdc or 250 Vac (resistive), 0.2 A maximum per output at 125 Vdc (resistive)
Minimum switching current 10 mA 5 V DC
Discrete output frequency 2 Hz for resistive load, 0.5 Hz for inductive load, 2 Hz for lamp load
Response time on output < 20 ms activation, < 13 ms deactivation
Mechanical durability 10000000 cycles
[Ith] conventional free air thermal current 5 A per channel
Paralleling of outputs Yes for logic links, Yes for redundant control of load
Output diagnostic Power supply error per channel
Electrical durability 60000 cycles 5 A 250 V AC, 60000 cycles 5 A 30 V DC, 150000 cycles 2 A 250 V AC, 150000 cycles 2 A 30 V DC, 300000 cycles 1 A 250 V AC, 300000 cycles 1 A 30 V DC
Power supply type Bus power from power supply bus (24 Vdc), Field power from power supply field (5...125 Vdc or 24...250 Vac)
Rated operational voltage limits 20.4...28.8 V DC
Typical current consumption 27.6 mA 24 V DC on the Bus current, 1.2 mA 24 V DC on the internal field current minimum, 41.4 mA 24 V DC on the internal field current maximum
Electrical Connection Screw/spring terminal block
Power dissipation in W 5.21 W maximum at 24 V DC
Isolation between channels 1780 V AC
Isolation between channels and bus 3000 V AC
Isolation between channels and ground 3000 V AC
Hot swapping fallback Yes
Local signalling 1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR)
Housing Colour Grey
Mounting support Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715
Height 4.6 in (116.6 mm)
Width 1.2 in (30 mm)
Depth 3.2 in (81 mm)
Net Weight 0.280 lb(US) (0.127 kg)

Environment 14

IP Degree of Protection IP20
Protective treatment Conformal coating
Marking CE, UKCA, CULus, RCM
Product certifications CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
Standards EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5
Directives 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
Ambient air temperature for operation -40…158 °F (-40…70 °C)
Ambient air temperature for storage -40…185 °F (-40…85 °C)
Relative humidity 5…95 % without condensation
Operating altitude 0...6561.68 ft (0...2000 m) without derating, 2000...5000 m with derating
Pollution degree 2
Environmental characteristic Gas resistant CX & GX combined, Salt spray resistant
Vibration resistance 1 g without accessory, 2 g with accessory
Shock resistance 15 g 11 ms with and without accessory)
Show all 64 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number NTSDRC0415HK
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606486877807

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.127 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for NTSDRC0415HK

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • UKCA
  • CCC
  • EAC
  • EN/IEC 61131-2
  • EN 61010-2-201
  • UL 61010-2-201
  • IACS E10
  • EN/IEC 61850-3
  • location G
  • EN/IEC 60079-0
  • EN 50155
  • EN 50121-4
  • EN 50121-5
Quick answers

Questions about the NTSDRC0415HK

What is the HS code of NTSDRC0415HK for customs?

The tariff (HS) code on file for NTSDRC0415HK is 853710.

What is the EAN of NTSDRC0415HK?

The EAN (GTIN) of NTSDRC0415HK is 3606486877807.

Where does NTSDRC0415HK ship from, and how fast?

NTSDRC0415HK ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
