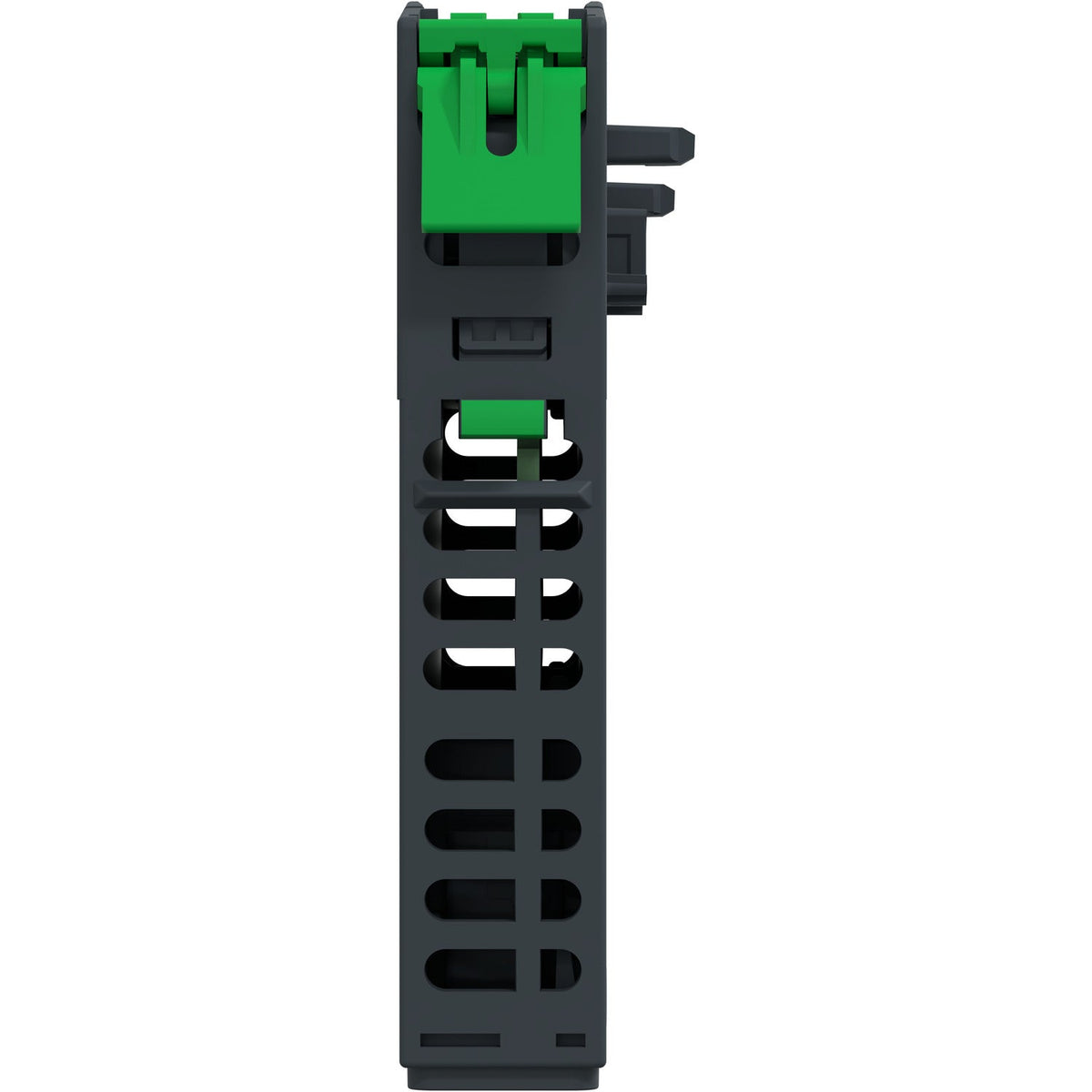

The Schneider Electric NTSDRC0215K is a Modicon Edge I/O NTS relay output module kit with 2 isolated form-C (NO/NC) relay channels rated 2 A, pre-assembled on its NTSXBA0100H base. Each channel switches 5...125 V DC or 24...250 V AC loads through a 2-wire connection, covering a -20...60 degC operating range. It mounts on a DIN rail and connects to Modicon M262 or M580 controllers.
The form-C (NO/NC) contacts on the NTSDRC0215K give both a normally-open and normally-closed path per channel, useful for fail-safe interlocks that must report a defined state on coil de-energization, unlike the form-A-only NTSDRA0615K. Its 2-channel count fits compact applications; the 4-channel NTSDRC0415K/HK is the better choice when the panel needs more relay points at a higher 5 A switching current. The dual AC/DC voltage window (5...125 V DC, 24...250 V AC) lets the same relay switch either a 24 V DC control circuit or a 230 V AC load without a separate module.
| Range of Product | Modicon Edge I/O NTS |
|---|---|
| Product or Component Type | Discrete output module kit |
| Kit composition | NTSDRC0215 module, NTSXBA0100H base |
| Mandatory accessory | NTSXTB12_1_H terminal block |
| Product Compatibility | NTSN..... |
| Range Compatibility | Logic/motion controller - Modicon M262, Modicon M580, Third party |
| Device Application | Industrial Application |
| Discrete output number | 2 |
| Group of output channels | 2 groups of 1 channels |
| Discrete output voltage | 24...250 V AC, 5...125 V DC |
| Operating Mode | Asynchronous |
| Discrete output number | 2 relay outputs (form C with NO/NC) |
|---|---|
| Output wiring mode | 2 wires |
| Discrete output current | 2 A maximum per output at 30 Vdc or 250 Vac (resistive), 0.2 A maximum per output at 125 Vdc (resistive) |
| Minimum switching current | 10 mA 5 V DC |
| Discrete output frequency | 2 Hz for resistive load, 0.5 Hz for inductive load, 2 Hz for lamp load |
| Response time on output | < 20 ms activation, < 13 ms deactivation |
| Mechanical durability | 10000000 cycles |
| [Ith] conventional free air thermal current | 2 A per channel |
| Paralleling of outputs | Yes for logic links, Yes for redundant control of load |
| Output diagnostic | Power supply error per channel |
| Electrical durability | 150000 cycles 2 A 250 V AC, 150000 cycles 2 A 30 V DC, 300000 cycles 1 A 250 V AC, 300000 cycles 1 A 30 V DC |
| Power supply type | Bus power from power supply bus (24 Vdc), Field power from power supply field (5...125 Vdc or 24...250 Vac) |
| Rated operational voltage limits | 20.4...28.8 V DC |
| Typical current consumption | 27.6 mA 24 V DC on the Bus current, 1.2 mA 24 V DC on the internal field current minimum, 21.4 mA 24 V DC on the internal field current maximum |
| Electrical Connection | Screw/spring terminal block |
| Power dissipation in W | 1.4 W maximum at 24 V DC |
| Isolation between channels | 1780 V AC |
| Isolation between channels and bus | 3000 V AC |
| Isolation between channels and ground | 3000 V AC |
| Hot swapping fallback | Yes |
| Local signalling | 1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR) |
| Housing Colour | Grey |
| Mounting support | Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715 |
| Height | 4.6 in (116.6 mm) |
| Width | 0.6 in (15 mm) |
| Depth | 3.2 in (81 mm) |
| Net Weight | 0.161 lb(US) (0.073 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Marking | CE, UKCA, CULus, RCM |
| Product certifications | CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Standards | EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5 |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating, 2000...5000 m with derating |
| Pollution degree | 2 |
| Environmental characteristic | Gas resistant C3 and G2 |
| Vibration resistance | 1 g without accessory, 2 g with accessory |
| Shock resistance | 15 g 11 ms with and without accessory) |
| Part number | NTSDRC0215K |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606486877791 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.073 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
