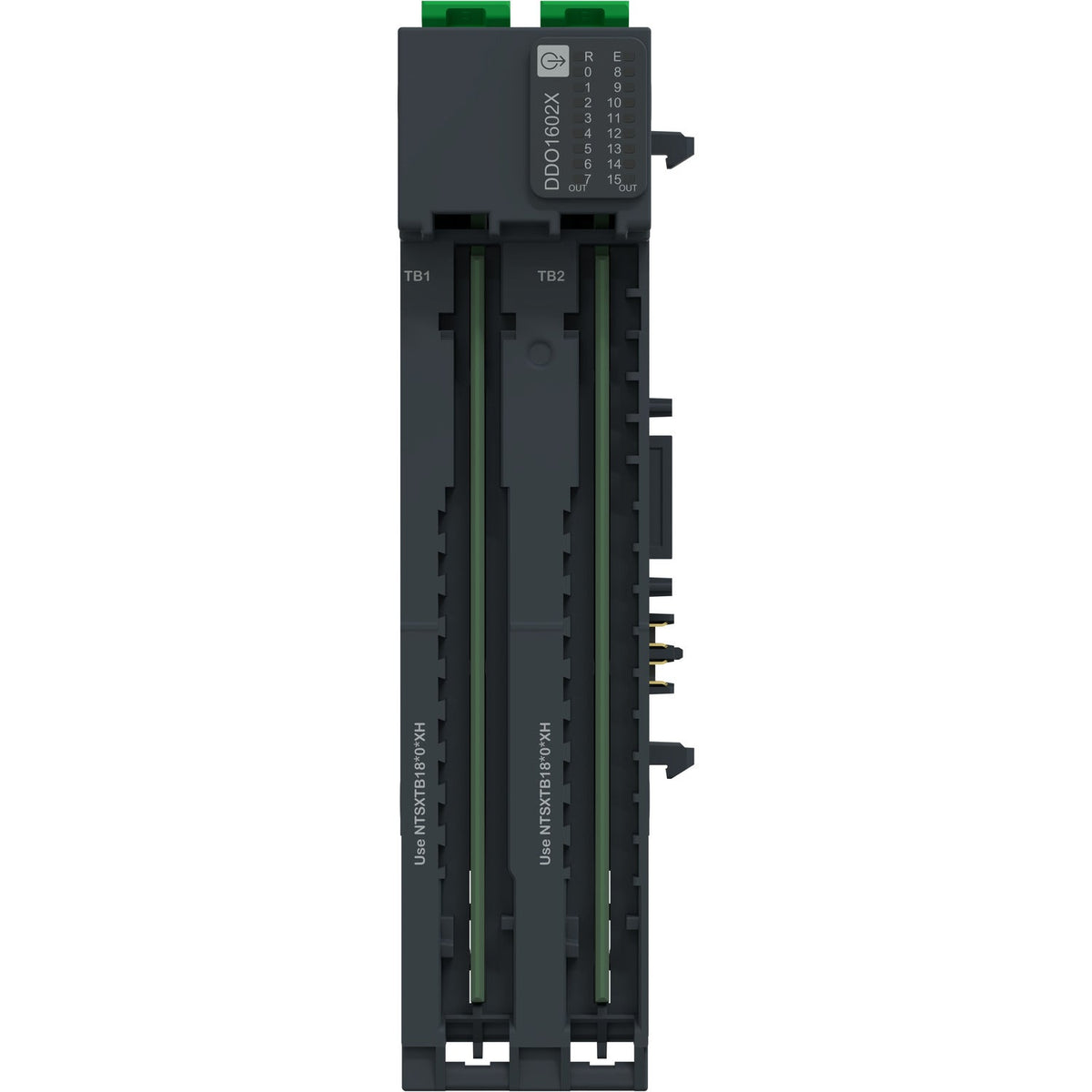

The Schneider Electric NTSDDO1602XK is a Modicon Edge I/O NTS discrete output module kit with 16 transistor outputs at 24 V DC, 500 mA per channel, split across 2 groups of 8, pre-assembled on its NTSXBA0200H base. Channels wire in 1 or 2 wires and share bus-derived field power, covering a -20...60 degC operating range. It mounts on a DIN rail and connects to Modicon M262 or M580 controllers.
The NTSDDO1602XK draws field power from the internal bus rather than an external supply, simplifying wiring versus the externally-powered NTSDDO1602XAK at the cost of a lower 4 A total module current. Grouping the 16 channels into 2 sets of 8 still lets the controller isolate a field-side fault to half the module. Where the panel sees vibration or condensation, the hardened NTSDDO1602XHK shares the same channel and current rating with conformal coating and an extended -40...70 degC range.
| Range of Product | Modicon Edge I/O NTS |
|---|---|
| Product or Component Type | Discrete output module kit |
| Kit composition | NTSDDO01602X module, NTSXBA0200H base |
| Mandatory accessory | 2x NTSXTB18_0_XH terminal block |
| Product Compatibility | NTSN..... |
| Range Compatibility | Logic/motion controller - Modicon M262, Modicon M580, Third party |
| Device Application | Industrial Application |
| Discrete output number | 16 |
| Group of output channels | 2 groups of 8 channels |
| Discrete output logic | Positive logic (source) |
| Discrete output voltage | 24 V DC |
| Operating Mode | Synchronous/Isochronous |
| Discrete output number | 16 transistor |
|---|---|
| Output wiring mode | 1 or 2 wires |
| Discrete output current | 500 mA per channel, 4 A per module |
| Discrete output frequency | 1 kHz for resistive load, 0.5/LI² Hz for inductive load |
| Response time on output | 90 µs maximum (turn on), 110 µs maximum (turn off) |
| Maximum leakage current | 0.0001 mA per channel |
| Maximum voltage drop | <0.1 V per channel DC |
| Maximum tungsten load | <12 W |
| Paralleling of outputs | Yes for redundancy, Yes for double current (maximum 2) |
| Output protection type | Transient voltage suppression per channel, Short circuit protection per channel, Overload/thermal protection per channel, Reverse polarity protection per module |
| Output diagnostic | Power supply error per channel, Short circuit error per channel |
| Power supply type | Bus power from power supply bus (24 Vdc), Field power from power supply field (24 Vdc) |
| Rated operational voltage limits | 20.4...28.8 V DC |
| Typical current consumption | 40.8 mA 24 V DC on the Bus current, 7.2 mA 24 V DC on the internal field current minimum, 4008.6 mA 24 V DC on the internal field current maximum |
| Electrical Connection | Screw/spring terminal block |
| Power dissipation in W | 2.47 W maximum at 24 V DC |
| Isolation between channels and bus | 1500 V AC |
| Isolation between channels and ground | 1500 V AC |
| Hot swapping fallback | Yes |
| Local signalling | 1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR) |
| Housing Colour | Grey |
| Mounting support | Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715 |
| Height | 5.4 in (137.6 mm) |
| Width | 1.2 in (30 mm) |
| Depth | 3.2 in (81 mm) |
| Net Weight | 0.289 lb(US) (0.131 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Marking | CE, UKCA, CULus, RCM |
| Product certifications | CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Standards | EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5 |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating, 2000...5000 m with derating |
| Pollution degree | 2 |
| Environmental characteristic | Gas resistant C3 and G2 |
| Vibration resistance | 1 g without accessory, 2 g with accessory |
| Shock resistance | 15 g 11 ms with and without accessory) |
| Part number | NTSDDO1602XK |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606486877753 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.131 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for NTSDDO1602XK is 853710.
The EAN (GTIN) of NTSDDO1602XK is 3606486877753.
NTSDDO1602XK ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
