NTSDDO1602XHK
$227.70 On request Dispatch — · From TürkiyeGet a Quote
Modicon Edge I/O NTS

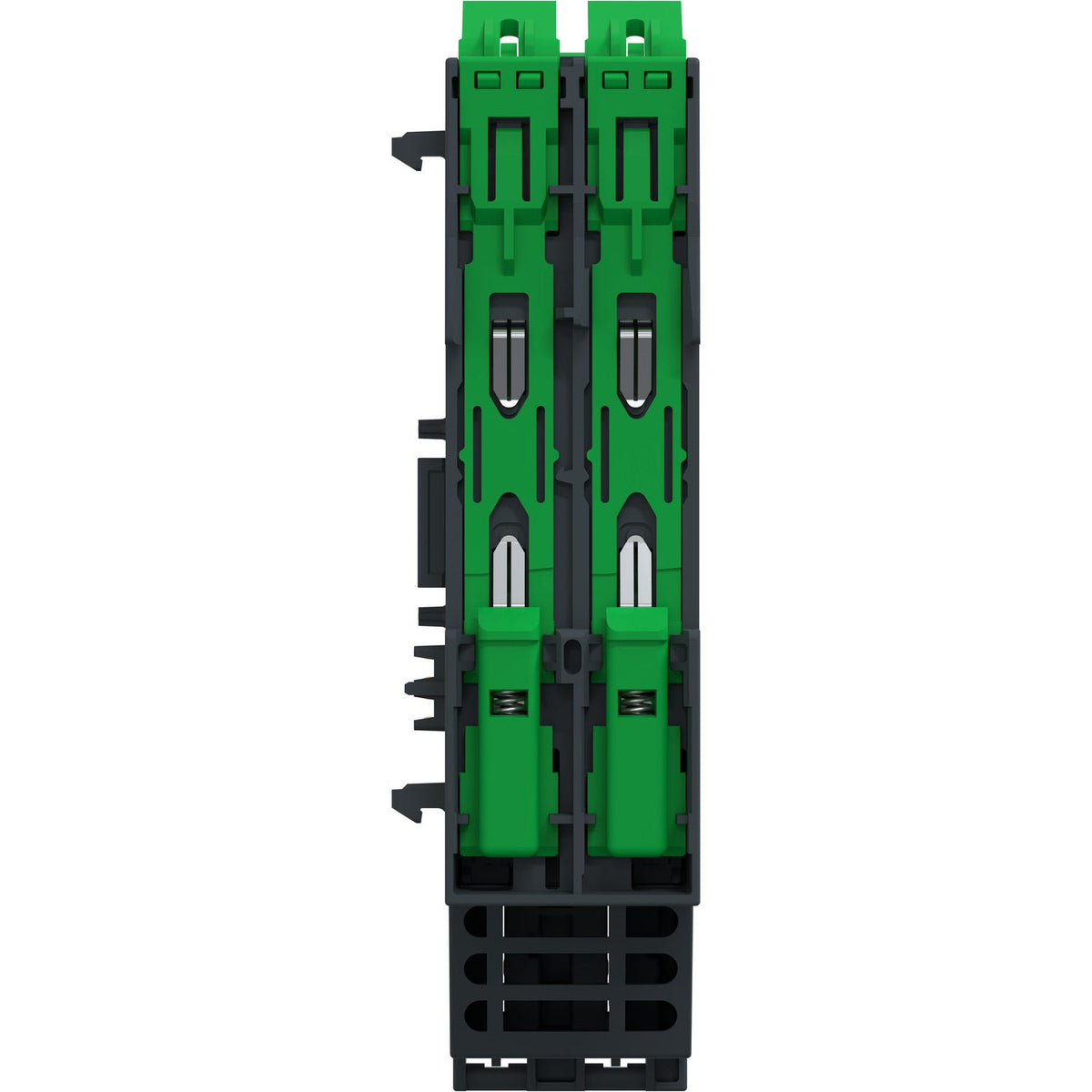

Schneider Electric NTSDDO1602XHK Modicon Edge I/O NTS Digital Output 16Ch 24VDC Hardened Remote I/O Module

Modicon Edge I/O NTS discrete output module + base, 16 channels, 24V DC, 500mA, hardened.

Range of Product
Modicon Edge I/O NTS
Product or Component Type
Discrete output module kit
Kit composition
NTSDDO1602XH module, NTSXBA0200H base
Mandatory accessory
2x NTSXTB18_0_XH terminal block
Product Compatibility
NTSN.....
Range Compatibility
Logic/motion controller - Modicon M262, Modicon M580, Third party
EAN
3606486877746
Description

About the NTSDDO1602XHK

The Schneider Electric NTSDDO1602XHK is a Modicon Edge I/O NTS discrete output module kit with 16 transistor outputs at 24 V DC, 500 mA per channel, split across 2 groups of 8, pre-assembled on its NTSXBA0200H base for severe-environment use. Channels wire in 1 or 2 wires and share bus-derived field power, running across an extended -40...70 degC range with conformal-coated electronics. It mounts on a DIN rail and connects to Modicon M262 or M580 controllers.

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • RCM
  • EN/IEC 61131-2

Selection Notes

Unlike the externally-powered NTSDDO1602XAHK, the NTSDDO1602XHK draws field power from the internal bus supply, simplifying wiring at the cost of a lower 4 A total module current versus the external-supply variant's 8 A. Grouping the 16 channels into 2 sets of 8 still lets the controller isolate a field-side fault to half the module. The hardened build's conformal coating and -40...70 degC range are the reason to choose it over the standard NTSDDO1602XK in panels exposed to vibration or condensation.

Specification

Full specification

65 values · Last verified 30 Oct 2026

Main 12

Range of Product Modicon Edge I/O NTS
Product or Component Type Discrete output module kit
Kit composition NTSDDO1602XH module, NTSXBA0200H base
Mandatory accessory 2x NTSXTB18_0_XH terminal block
Product Compatibility NTSN.....
Range Compatibility Logic/motion controller - Modicon M262, Modicon M580, Third party
Device Application Industrial application in severe environment
Discrete output number 16
Group of output channels 2 groups of 8 channels
Discrete output logic Positive logic (source)
Discrete output voltage 24 V DC
Operating Mode Synchronous/Isochronous

Complementary 26

Discrete output number 16 transistor
Output wiring mode 1 or 2 wires
Discrete output current 500 mA per channel, 4 A per module
Discrete output frequency 1 kHz for resistive load, 0.5/LI² Hz for inductive load
Response time on output 90 µs maximum (turn on), 110 µs maximum (turn off)
Maximum leakage current 0.0001 mA per channel
Maximum voltage drop <0.1 V per channel DC
Maximum tungsten load <12 W
Paralleling of outputs Yes for redundancy, Yes for double current (maximum 2)
Output protection type Transient voltage suppression per channel, Short circuit protection per channel, Overload/thermal protection per channel, Reverse polarity protection per module
Output diagnostic Power supply error per channel, Short circuit error per channel
Power supply type Bus power from power supply bus (24 Vdc), Field power from power supply field (24 Vdc)
Rated operational voltage limits 20.4...28.8 V DC
Typical current consumption 40.8 mA 24 V DC on the Bus current, 7.2 mA 24 V DC on the internal field current minimum, 4008.6 mA 24 V DC on the internal field current maximum
Electrical Connection Screw/spring terminal block
Power dissipation in W 2.47 W maximum at 24 V DC
Isolation between channels and bus 1500 V AC
Isolation between channels and ground 1500 V AC
Hot swapping fallback Yes
Local signalling 1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR)
Housing Colour Grey
Mounting support Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715
Height 5.4 in (137.6 mm)
Width 1.2 in (30 mm)
Depth 3.2 in (81 mm)
Net Weight 0.289 lb(US) (0.131 kg)

Environment 14

IP Degree of Protection IP20
Protective treatment Conformal coating
Marking CE, UKCA, CULus, RCM
Product certifications CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
Standards EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5
Directives 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
Ambient air temperature for operation -40…158 °F (-40…70 °C)
Ambient air temperature for storage -40…185 °F (-40…85 °C)
Relative humidity 5…95 % without condensation
Operating altitude 0...6561.68 ft (0...2000 m) without derating, 2000...5000 m with derating
Pollution degree 2
Environmental characteristic Gas resistant CX & GX combined, Salt spray resistant
Vibration resistance 1 g without accessory, 2 g with accessory
Shock resistance 15 g 11 ms with and without accessory)
Show all 65 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number NTSDDO1602XHK
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606486877746

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.131 kg
Ships from Türkiye
Dispatch —
Stock On request
