Modicon Edge I/O NTS

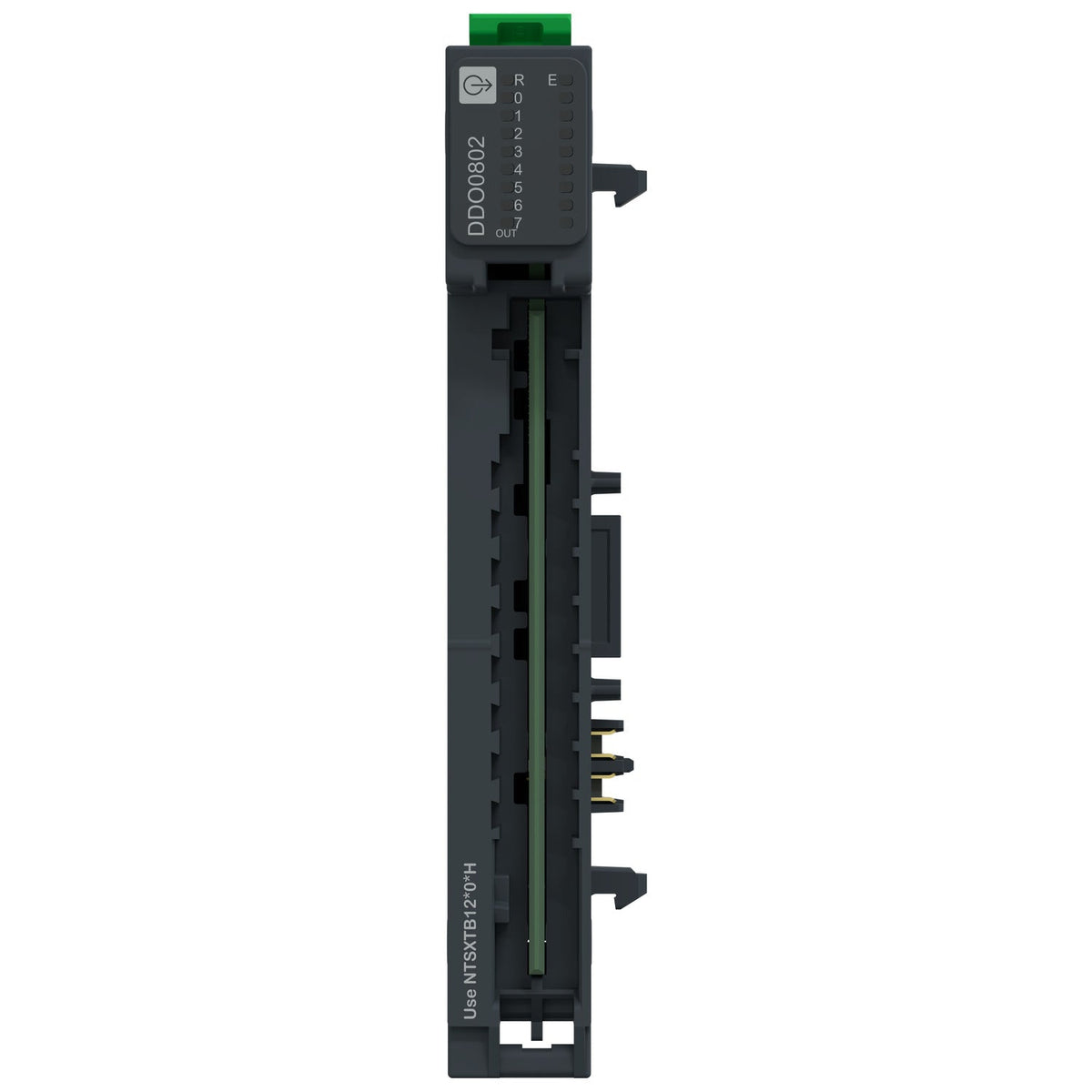

Schneider Electric NTSDDO0802K Modicon Edge I/O NTS Digital Output 8Ch 24VDC 2A Source Remote I/O Module

Modicon Edge I/O NTS discrete output module + base, 8 channels, 24V DC, 2A, source, external supply.

Range of Product
Modicon Edge I/O NTS
Product or Component Type
Discrete output module kit
Kit composition
NTSDDO0802 module, NTSXBA0100H base
Mandatory accessory
NTSXTB12_0_H terminal block
Product Compatibility
NTSN.....
Range Compatibility
Logic/motion controller - Modicon M262, Modicon M580, Third party
EAN
3606486877692
Description

About the NTSDDO0802K

The Schneider Electric NTSDDO0802K is a Modicon Edge I/O NTS discrete output module kit with 8 transistor outputs at 24 V DC, 2 A per channel, pre-assembled on its NTSXBA0100H base. Channels wire in a single-wire connection across 2 groups of 4 and draw field power from an external 24 V DC supply, covering a -20...60 degC operating range. It mounts on a DIN rail and connects to Modicon M262 or M580 controllers.

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • RCM
  • EN/IEC 61131-2

Selection Notes

The 2 A per-channel rating on the NTSDDO0802K, four times the 500 mA of the NTSDDO0602K/0402K, suits solenoid valves and small motor starters driven directly from the I/O module. Field power comes from an external 24 V DC supply rather than the internal bus-power path, so the supply's current capacity must cover the 8 A module maximum when all channels run at rated load simultaneously. Grouping the 8 channels into two 4-channel groups lets the controller isolate a field-side fault to half the module rather than the whole output set.

Specification

Full specification

62 values · Last verified 30 Oct 2026

Main 12

Range of Product Modicon Edge I/O NTS
Product or Component Type Discrete output module kit
Kit composition NTSDDO0802 module, NTSXBA0100H base
Mandatory accessory NTSXTB12_0_H terminal block
Product Compatibility NTSN.....
Range Compatibility Logic/motion controller - Modicon M262, Modicon M580, Third party
Device Application Industrial Application
Discrete output number 8
Group of output channels 2 groups of 4 channels
Discrete output logic Positive logic (source)
Discrete output voltage 24 V DC
Operating Mode Synchronous/Isochronous

Complementary 25

Discrete output number 8 transistor
Output wiring mode 1 wire
Discrete output current 2 A per channel, 4 A per group, 8 A per module
Discrete output frequency 1 kHz for resistive load, 0.5/LI² Hz for inductive load
Response time on output 90 µs maximum (turn on), 110 µs maximum (turn off)
Maximum leakage current 0.001 mA per channel
Maximum voltage drop <0.25 V per channel DC
Maximum tungsten load <12 W
Output protection type Transient voltage suppression per channel, Short circuit protection per channel, Overload/thermal protection per channel
Output diagnostic External power supply error per channel, Over current error per channel
Power supply type Bus power from power supply bus (24 Vdc), Field power from external power supply (24 Vdc)
Rated operational voltage limits 20.4...28.8 V DC
Typical current consumption 33.6 mA 24 V DC on the Bus current, 0 mA 24 V DC on the internal field current
Electrical Connection Screw/spring terminal block
Power dissipation in W 1.68 W maximum at 24 V DC
Isolation between channels and bus 1500 V AC
Isolation between channels and ground 1500 V AC
Hot swapping fallback Yes
Local signalling 1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR)
Housing Colour Grey
Mounting support Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715
Height 3.9 in (100 mm)
Width 0.6 in (15 mm)
Depth 3.1 in (80 mm)
Net Weight 0.159 lb(US) (0.072 kg)

Environment 12

IP Degree of Protection IP20
Marking CE, UKCA, CULus, RCM
Product certifications CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
Standards EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5
Directives 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
Ambient air temperature for operation -4…140 °F (-20…60 °C)
Ambient air temperature for storage -40…185 °F (-40…85 °C)
Relative humidity 5…95 % without condensation
Operating altitude 0...6561.68 ft (0...2000 m) without derating, 2000...5000 m with derating
Pollution degree 2
Vibration resistance 1 g without accessory, 2 g with accessory
Shock resistance 15 g 11 ms with and without accessory)
