Modicon Edge I/O NTS

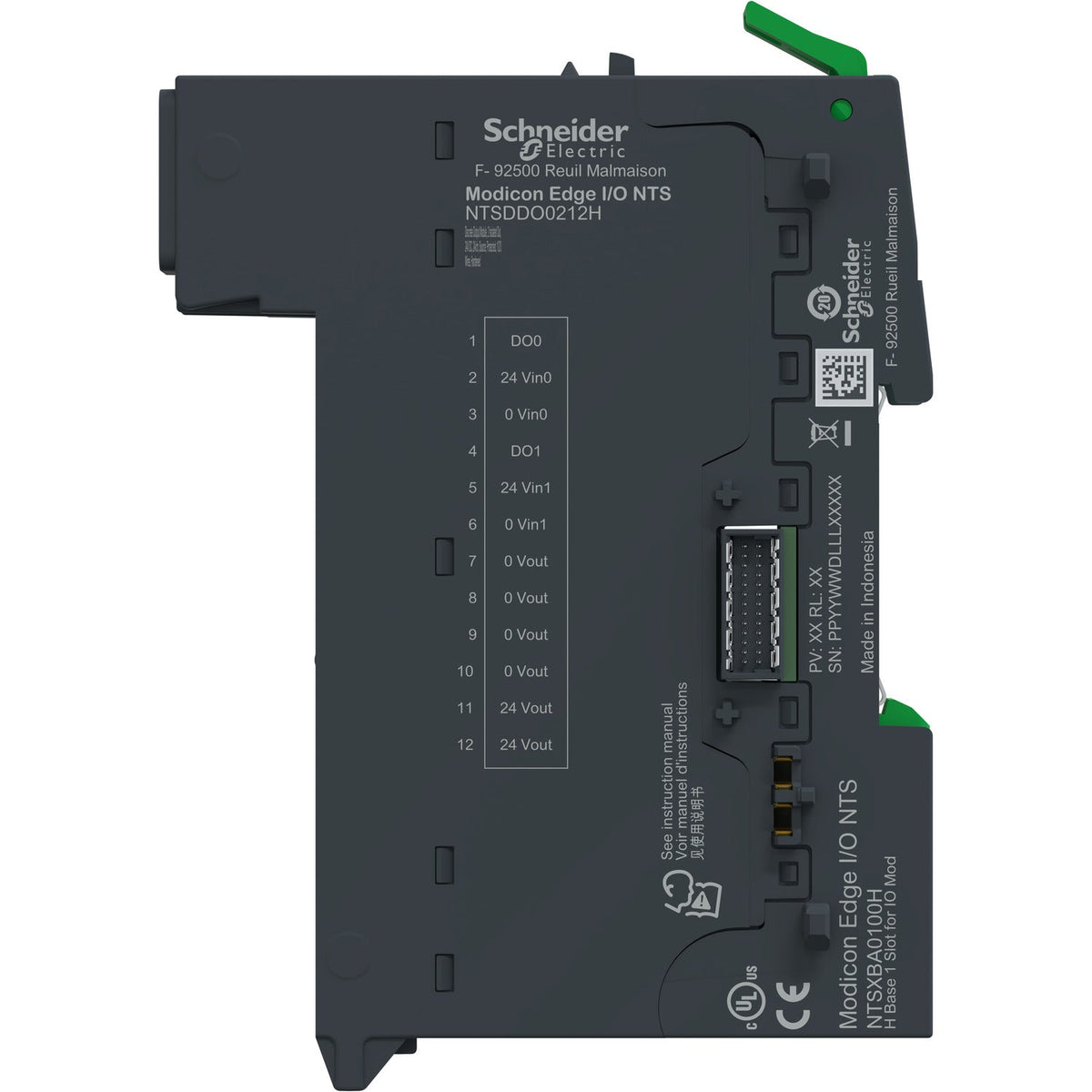

Schneider Electric NTSDDO0212HK Modicon Edge I/O NTS Digital Output 2Ch 24VDC 2A Hardened Remote I/O Module

Modicon Edge I/O NTS discrete output module + base, 2 isolated channels, 24V DC, 2A, hardened.

Range of Product
Modicon Edge I/O NTS
Product or Component Type
Discrete output module kit
Kit composition
NTSDDO0212H module, NTSXBA0100H base
Mandatory accessory
NTSXTB12_1_H terminal block
Product Compatibility
NTSN.....
Range Compatibility
Logic/motion controller - Modicon M262, Modicon M580, Third party
EAN
3606486877654
Description

About the NTSDDO0212HK

The Schneider Electric NTSDDO0212HK is a Modicon Edge I/O NTS discrete output module kit with 2 isolated 24 V DC transistor outputs at 2 A per channel, pre-assembled on its NTSXBA0100H base for severe-environment use. Channels wire in 1, 2 or 3 wires with short-circuit and thermal protection, covering an extended -40...70 degC range with conformal-coated electronics. It mounts on a DIN rail and connects to Modicon M262 or M580 controllers.

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • RCM
  • EN/IEC 61131-2

Selection Notes

The 500 V AC isolation between channels on the NTSDDO0212HK lets each of the 2 outputs drive loads referenced to a different 24 V DC supply without cross-interference, a property the non-isolated NTSDDO0402K/HK (shared field supply) does not offer. Paralleling two channels for redundancy or for double current is supported, useful when a single 2 A output is marginal for the load. The hardened build's conformal coating and -40...70 degC range are the reason to pick this over a standard-environment output module in panels exposed to vibration or condensation.

Specification

Full specification

66 values · Last verified 30 Oct 2026

Main 12

Range of Product Modicon Edge I/O NTS
Product or Component Type Discrete output module kit
Kit composition NTSDDO0212H module, NTSXBA0100H base
Mandatory accessory NTSXTB12_1_H terminal block
Product Compatibility NTSN.....
Range Compatibility Logic/motion controller - Modicon M262, Modicon M580, Third party
Device Application Industrial application in severe environment
Discrete output number 2
Group of output channels 2 groups of 1 channels
Discrete output logic Positive logic (source)
Discrete output voltage 24 V DC
Operating Mode Synchronous/Isochronous

Complementary 27

Discrete output number 2 transistor
Output wiring mode 1, 2 or 3 wires
Discrete output current 2 A per channel, 4 A per module
Discrete output frequency 1 kHz for resistive load, 0.5/LI² Hz for inductive load
Response time on output 70 µs turn-on, 120 µs turn-off
Maximum leakage current 0.0001 mA per channel
Maximum voltage drop <0.25 V per channel (from external power supply) DC, <0.35 V per channel (from internal power distribution module) DC
Maximum tungsten load <48 W
Paralleling of outputs Yes for redundancy, Yes for double current, Yes for same group (maxium 2)
Output protection type Transient voltage suppression per channel, Short circuit protection per channel, Overload/thermal protection per channel, Reverse polarity protection for internal supply per module
Output diagnostic Power supply error per channel, External power supply error per channel, Short circuit error per channel
Power supply type Bus power from power supply bus (24 Vdc), Field power from power supply field (24 Vdc), Optional field power from external power supply (24 Vdc)
Rated operational voltage limits 20.4...28.8 V DC
Typical current consumption 27.6 mA 24 V DC on the Bus current, 0 mA 24 V DC on the internal field current minimum, 4000 mA 24 V DC on the internal field current maximum
Electrical Connection Screw/spring terminal block
Power dissipation in W 1.22 W maximum at 24 V DC
Isolation between channels 500 V AC
Isolation between channels and bus 1500 V AC
Isolation between channels and ground 1500 V AC
Hot swapping fallback Yes
Local signalling 1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR)
Housing Colour Grey
Mounting support Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715
Height 3.9 in (100 mm)
Width 0.6 in (15 mm)
Depth 3.1 in (80 mm)
Net Weight 0.161 lb(US) (0.073 kg)

Environment 14

IP Degree of Protection IP20
Protective treatment Conformal coating
Marking CE, UKCA, CULus, RCM
Product certifications CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
Standards EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5
Directives 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
Ambient air temperature for operation -40…158 °F (-40…70 °C)
Ambient air temperature for storage -40…185 °F (-40…85 °C)
Relative humidity 5…95 % without condensation
Operating altitude 0...6561.68 ft (0...2000 m) without derating, 2000...5000 m with derating
Pollution degree 2
Environmental characteristic Gas resistant CX & GX combined, Salt spray resistant
Vibration resistance 1 g without accessory, 2 g with accessory
Shock resistance 15 g 11 ms with and without accessory)
Show all 66 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number NTSDDO0212HK
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606486877654

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.073 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for NTSDDO0212HK

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • UKCA
  • CCC
  • EAC
  • EN/IEC 61131-2
  • EN 61010-2-201
  • UL 61010-2-201
  • IACS E10
  • EN/IEC 61850-3
  • location G
  • EN/IEC 60079-0
  • EN 50155
  • EN 50121-4
  • EN 50121-5
Quick answers

Questions about the NTSDDO0212HK

What is the HS code of NTSDDO0212HK for customs?

The tariff (HS) code on file for NTSDDO0212HK is 853710.

What is the EAN of NTSDDO0212HK?

The EAN (GTIN) of NTSDDO0212HK is 3606486877654.

Where does NTSDDO0212HK ship from, and how fast?

NTSDDO0212HK ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
