Modicon Edge I/O NTS

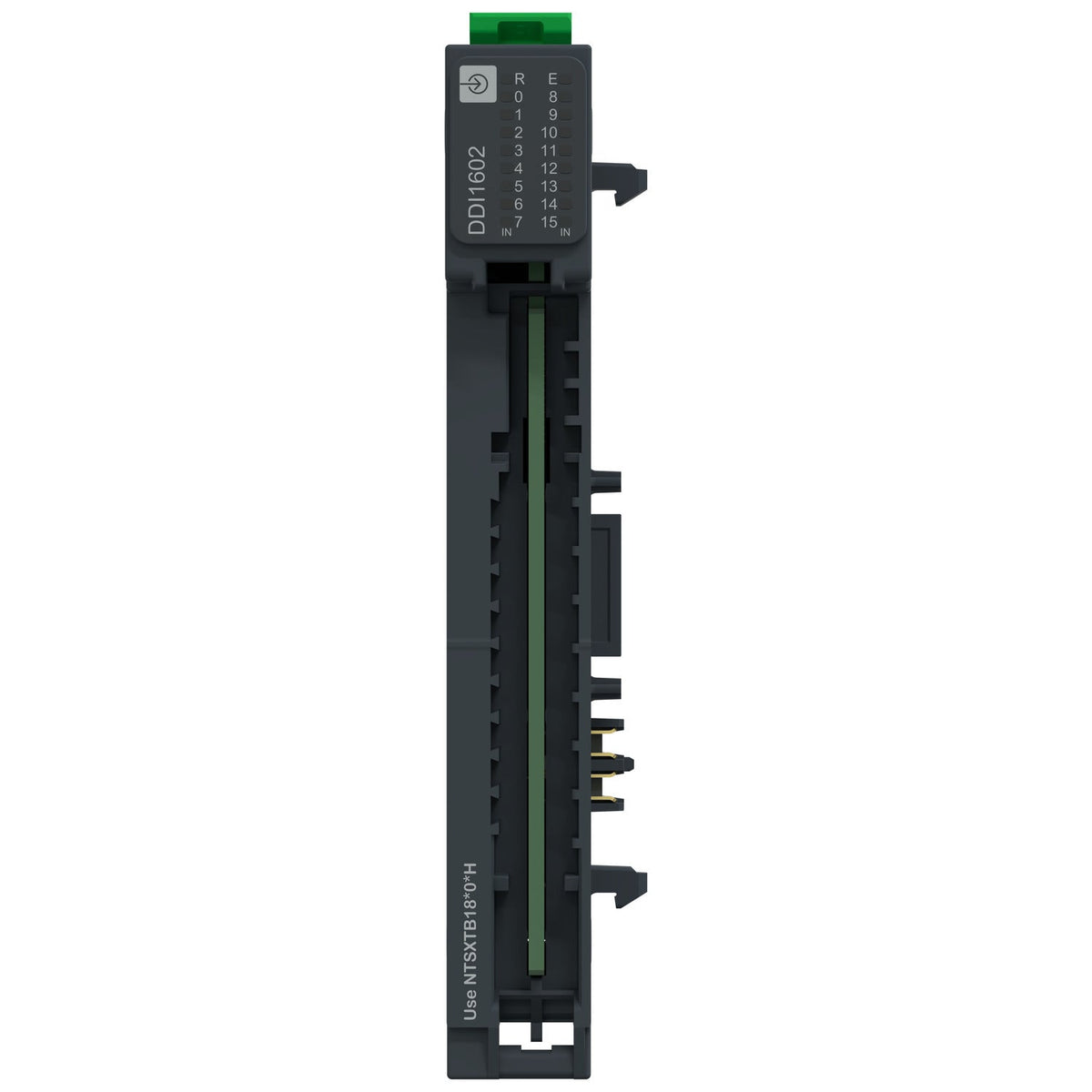

Schneider Electric NTSDDI1642K Modicon Edge I/O NTS Digital Input 16Ch 24VDC Source Remote I/O Module

Modicon Edge I/O NTS discrete input module + base, 16 channels, 24V DC source logic, 1-wire.

Range of Product
Modicon Edge I/O NTS
Product or Component Type
Discrete input module kit
Kit composition
NTSDDI1642 module, NTSXBA0100H base
Mandatory accessory
NTSXTB18_0_H terminal block
Product Compatibility
NTSN.....
Range Compatibility
Logic/motion controller - Modicon M262, Modicon M580, Third party
EAN
3606486877647
Description

About the NTSDDI1642K

The Schneider Electric NTSDDI1642K is a Modicon Edge I/O NTS discrete input module kit with 16 type 3 inputs at 24 V DC negative (source) logic, pre-assembled on its NTSXBA0100H base. Channels wire in a single-wire connection for compact terminations, covering a -20...60 degC operating range. It mounts on a DIN rail and connects to Modicon M262 or M580 controllers.

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • RCM
  • EN/IEC 61131-2

Selection Notes

The negative (source) logic on the NTSDDI1642K is the complement of the sink-logic NTSDDI1602K, matching field sensors wired as PNP-common rather than NPN-common; the two modules share the same 16-channel, 1-wire, 24 V DC electrical envelope and should be chosen based purely on the plant's existing sensor polarity convention. Mixing sink and source modules on the same NTS cluster avoids rewiring sensors when a panel standardizes on one logic type for new input points while retaining the other for legacy wiring. Verify sensor polarity before ordering, since swapping sink for source logic after installation means replacing the module rather than reconfiguring it.

Specification

Full specification

65 values · Last verified 30 Oct 2026

Main 12

Range of Product Modicon Edge I/O NTS
Product or Component Type Discrete input module kit
Kit composition NTSDDI1642 module, NTSXBA0100H base
Mandatory accessory NTSXTB18_0_H terminal block
Product Compatibility NTSN.....
Range Compatibility Logic/motion controller - Modicon M262, Modicon M580, Third party
Device Application Industrial Application
Discrete input number 16
Group of input channels 1 group
Discrete input voltage 24 V DC
Discrete input logic Negative logic (source)
Operating Mode Synchronous/Isochronous

Complementary 27

Discrete input compatibility 16 type 3 conforming to IEC 61131-2
Input wiring mode 1 wire
Discrete input current 2.5 mA
Voltage state 1 guaranteed 11...30 V DC
Voltage state 0 guaranteed < 5 V DC
Current state 1 guaranteed >= 2 mA
Current state 0 guaranteed <= 1.5 mA
Input impedance 9.6 kOhm
Response time on input < 125 µs (off to on), < 125 µs (on to off)
Input filtering 0...20 ms configurable in 0.1 ms step
Paralleling of inputs Yes
Input protection type Over voltage protection
Input diagnostic Power supply error per channel, Sensor power supply error per channel
Power supply type Bus power from power supply bus (24 Vdc), Field power from power supply field (24 Vdc), Optional field power from external power supply (24 Vdc, shared 24 V module)
Rated operational voltage limits 20.4...28.8 V DC
Typical current consumption 43.2 mA 24 V DC on the Bus current, 2.4 mA 24 V DC on the internal field current minimum, 2.9 mA 24 V DC on the internal field current maximum
Power dissipation in W 2.05 W maximum at 24 V DC
Isolation between channels and bus 1500 V AC
Isolation between channels and ground 1500 V AC
Hot swapping fallback Yes
Local signalling 1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR)
Housing Colour Grey
Mounting support Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715
Height 4.6 in (116.6 mm)
Width 0.6 in (15 mm)
Depth 3.2 in (81 mm)
Net Weight 0.161 lb(US) (0.073 kg)

Environment 13

IP Degree of Protection IP20
Marking CE, UKCA, CULus, RCM
Product certifications CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
Standards EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5
Directives 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
Ambient air temperature for operation -4…140 °F (-20…60 °C)
Ambient air temperature for storage -40…185 °F (-40…85 °C)
Relative humidity 5…95 % without condensation
Operating altitude 0...6561.68 ft (0...2000 m) without derating, 2000...5000 m with derating
Pollution degree 2
Environmental characteristic Gas resistant C3 and G2
Vibration resistance 1 g without accessory, 2 g with accessory
Shock resistance 15 g 11 ms with and without accessory)
Show all 65 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
