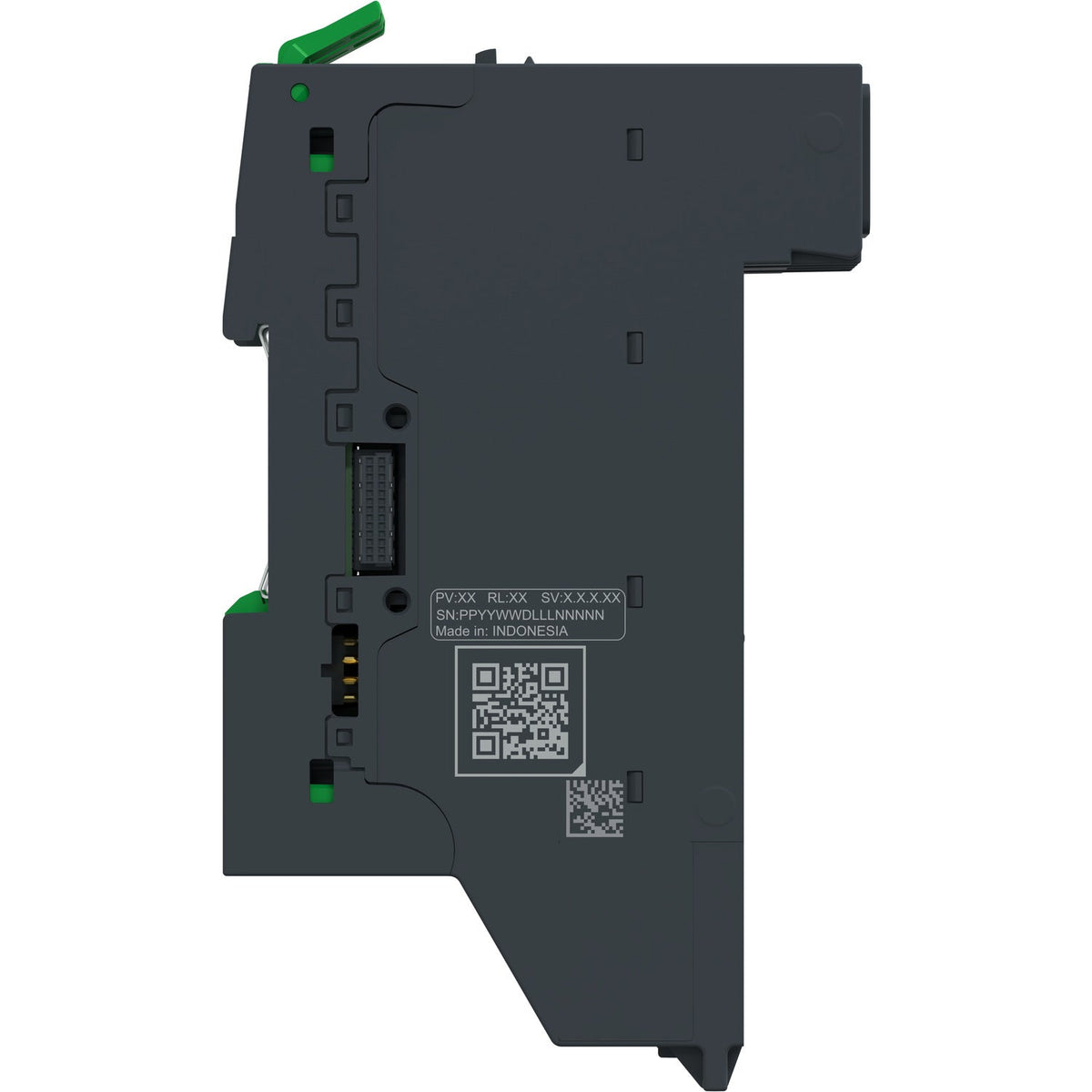

The Schneider Electric NTSDDI1602XK is a Modicon Edge I/O NTS discrete input module kit with 16 type 3 inputs at 24 V DC sink logic split across 4 isolated groups of 4 channels, pre-assembled on its NTSXBA0100H base. Channels wire in 1, 2 or 3 wires, covering a -20...60 degC operating range. It mounts on a DIN rail and connects to Modicon M262 or M580 controllers.
Splitting the 16 channels into 4 isolated groups of 4 on the NTSDDI1602XK keeps a field-side fault on one group from affecting the others, useful when sensor circuits originate from physically separate parts of the plant. Where group isolation is not needed, the narrower single-group NTSDDI1602K covers the same 16-channel count at a lower weight. For vibration- or condensation-prone panels, the hardened NTSDDI1602XHK shares the same group layout with conformal coating and an extended -40...70 degC range.
| Range of Product | Modicon Edge I/O NTS |
|---|---|
| Product or Component Type | Discrete input module kit |
| Kit composition | NTSDDI1602X module, NTSXBA0100H base |
| Mandatory accessory | 2x NTSXTB18_0_XH terminal block |
| Product Compatibility | NTSN..... |
| Range Compatibility | Logic/motion controller - Modicon M262, Modicon M580, Third party |
| Device Application | Industrial Application |
| Discrete input number | 16 |
| Group of input channels | 4 groups of 4 channels |
| Discrete input voltage | 24 V DC |
| Discrete input logic | Positive logic (sink) |
| Operating Mode | Synchronous/Isochronous |
| Discrete input compatibility | 16 type 3 conforming to IEC 61131-2 |
|---|---|
| Input wiring mode | 1, 2 or 3 wires |
| Discrete input current | 2.5 mA |
| Voltage state 1 guaranteed | 11...30 V DC |
| Voltage state 0 guaranteed | < 5 V DC |
| Current state 1 guaranteed | >= 2 mA |
| Current state 0 guaranteed | <= 1.5 mA |
| Input impedance | 9.6 kOhm |
| Response time on input | < 90 µs (off to on), < 60 µs (on to off) |
| Input filtering | 0...20 ms configurable in 0.1 ms step |
| Paralleling of inputs | Yes |
| Input protection type | Over voltage protection, Over current protection on sensor supply, Reverse polarity protection |
| Input diagnostic | Power supply error per channel, Sensor power supply error per channel |
| Power supply type | Bus power from power supply bus (24 Vdc), Field power from power supply field (24 Vdc), Optional field power from common distribution module (24 Vdc), Optional field power from external power supply (24 Vdc, shared 0 V with module) |
| Rated operational voltage limits | 20.4...28.8 V DC |
| Typical current consumption | 40.8 mA 24 V DC on the Bus current, 14.4 mA 24 V DC on the internal field current minimum, 517.3 mA 24 V DC on the internal field current maximum |
| Power dissipation in W | 2.3 W maximum at 24 V DC |
| Isolation between channels and bus | 1500 V AC |
| Isolation between channels and ground | 1500 V AC |
| Hot swapping fallback | Yes |
| Local signalling | 1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR) |
| Housing Colour | Grey |
| Mounting support | Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715 |
| Height | 4.8 in (121 mm) |
| Width | 1.2 in (30 mm) |
| Depth | 3.1 in (80 mm) |
| Net Weight | 0.287 lb(US) (0.130 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Marking | CE, UKCA, CULus, RCM |
| Product certifications | CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Standards | EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5 |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating, 2000...5000 m with derating |
| Pollution degree | 2 |
| Vibration resistance | 1 g without accessory, 2 g with accessory |
| Shock resistance | 15 g 11 ms with and without accessory) |
| Part number | NTSDDI1602XK |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606486877630 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.13 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for NTSDDI1602XK is 853710.
The EAN (GTIN) of NTSDDI1602XK is 3606486877630.
NTSDDI1602XK ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
