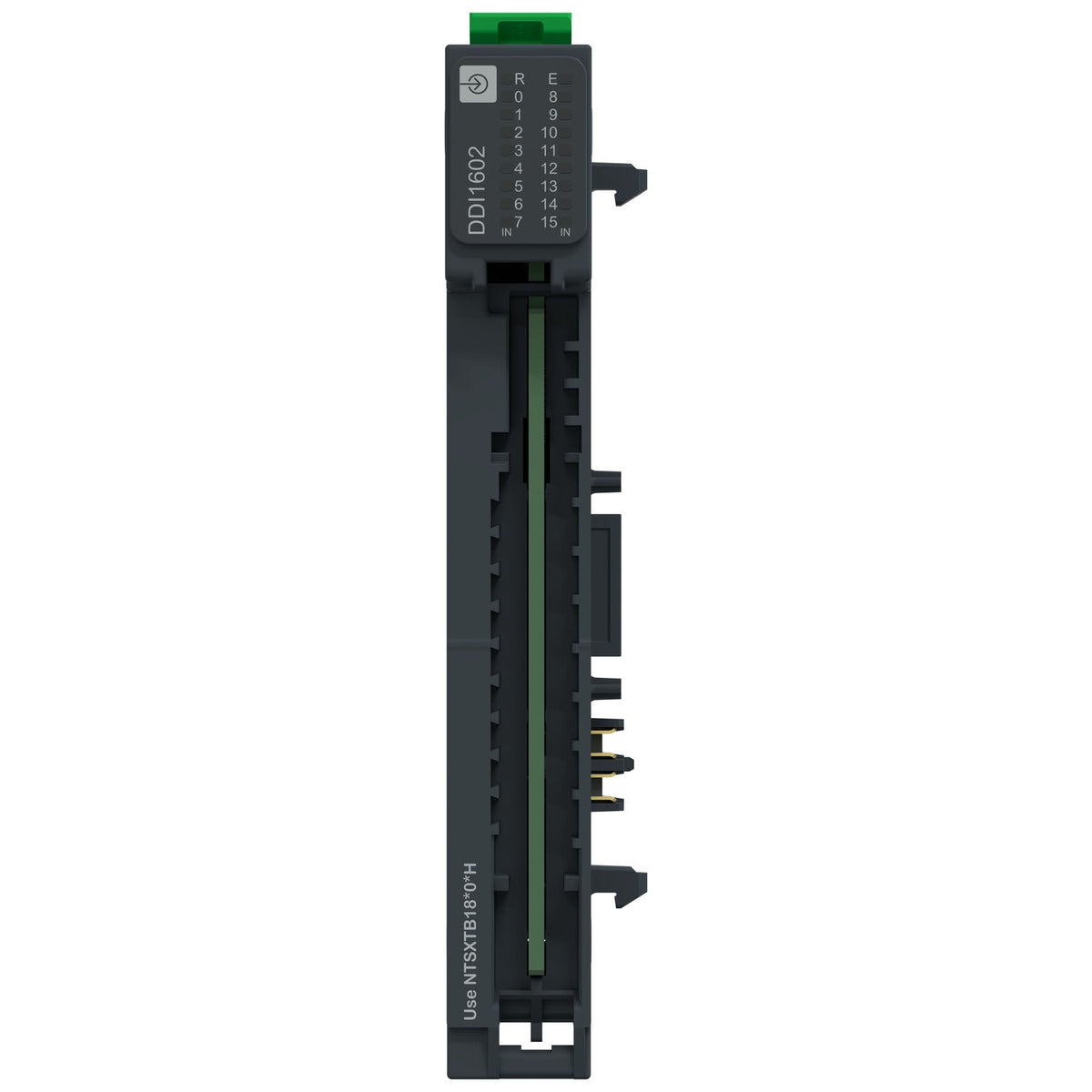

The Schneider Electric NTSDDI1602K is a Modicon Edge I/O NTS discrete input module kit with 16 type 3 inputs at 24 V DC sink logic, pre-assembled on its NTSXBA0100H base. Channels wire in a single-wire sink connection for compact high-density terminations, covering a -20...60 degC operating range. It mounts on a DIN rail and connects to Modicon M262 or M580 controllers.
The 16-channel, single-wire design on the NTSDDI1602K maximizes point density per DIN-rail slot, the right pick for high-count sink-input zones such as a bank of limit switches. Above 55 degC ambient, the module derates to 12 active channels, so the full 16-channel rating only applies in cooler enclosures; verify panel temperature against this before specifying it over the lower-count alternatives. For isolated groups where a wiring fault on one group should not affect another, the NTSDDI1602XK (4 groups of 4 channels) is the better choice despite the extra width.
| Range of Product | Modicon Edge I/O NTS |
|---|---|
| Product or Component Type | Discrete input module kit |
| Kit composition | NTSDDI1602 module, NTSXBA0100H base |
| Mandatory accessory | NTSXTB18_0_H terminal block |
| Product Compatibility | NTSN..... |
| Range Compatibility | Logic/motion controller - Modicon M262, Modicon M580, Third party |
| Device Application | Industrial Application |
| Discrete input number | 16 |
| Group of input channels | 1 group |
| Discrete input voltage | 24 V DC |
| Discrete input logic | Positive logic (sink) |
| Operating Mode | Synchronous/Isochronous |
| Discrete input compatibility | 16 type 3 conforming to IEC 61131-2 |
|---|---|
| Input wiring mode | 1 wire |
| Discrete input current | 2.5 mA |
| Voltage state 1 guaranteed | 11...30 V DC |
| Voltage state 0 guaranteed | < 5 V DC |
| Current state 1 guaranteed | >= 2 mA |
| Current state 0 guaranteed | <= 1.5 mA |
| Input impedance | 9.6 kOhm |
| Response time on input | < 125 µs (off to on), < 125 µs (on to off) |
| Input filtering | 0...20 ms configurable in 0.1 ms step |
| Paralleling of inputs | Yes |
| Input protection type | Over voltage protection |
| Input diagnostic | Power supply error per channel |
| Power supply type | Bus power from power supply bus (24 Vdc), Field power from common distribution module (24 Vdc), Optional field power from external power supply (24 Vdc, shared 0 V with module) |
| Rated operational voltage limits | 20.4...28.8 V DC |
| Typical current consumption | 40.8 mA 24 V DC on the Bus current, 13.2 mA 24 V DC on the internal field current minimum, 15.8 mA 24 V DC on the internal field current maximum |
| Power dissipation in W | 2.2 W maximum at 24 V DC |
| Isolation between channels and bus | 1500 V AC |
| Isolation between channels and ground | 1500 V AC |
| Hot swapping fallback | Yes |
| Local signalling | 1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR) |
| Housing Colour | Grey |
| Mounting support | Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715 |
| Height | 3.9 in (100 mm) |
| Width | 0.6 in (15 mm) |
| Depth | 3.1 in (80 mm) |
| Net Weight | 0.161 lb(US) (0.073 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Marking | CE, UKCA, CULus, RCM |
| Product certifications | CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Standards | EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5 |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) derating of channel numbers above 55 °C to 12 channels for 24 vdc at 60 °C |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating, 2000...5000 m with derating |
| Pollution degree | 2 |
| Environmental characteristic | Gas resistant C3 and G2 |
| Vibration resistance | 1 g without accessory, 2 g with accessory |
| Shock resistance | 15 g 11 ms with and without accessory) |
| Part number | NTSDDI1602K |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606486877616 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.073 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for NTSDDI1602K is 853710.
The EAN (GTIN) of NTSDDI1602K is 3606486877616.
NTSDDI1602K ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
