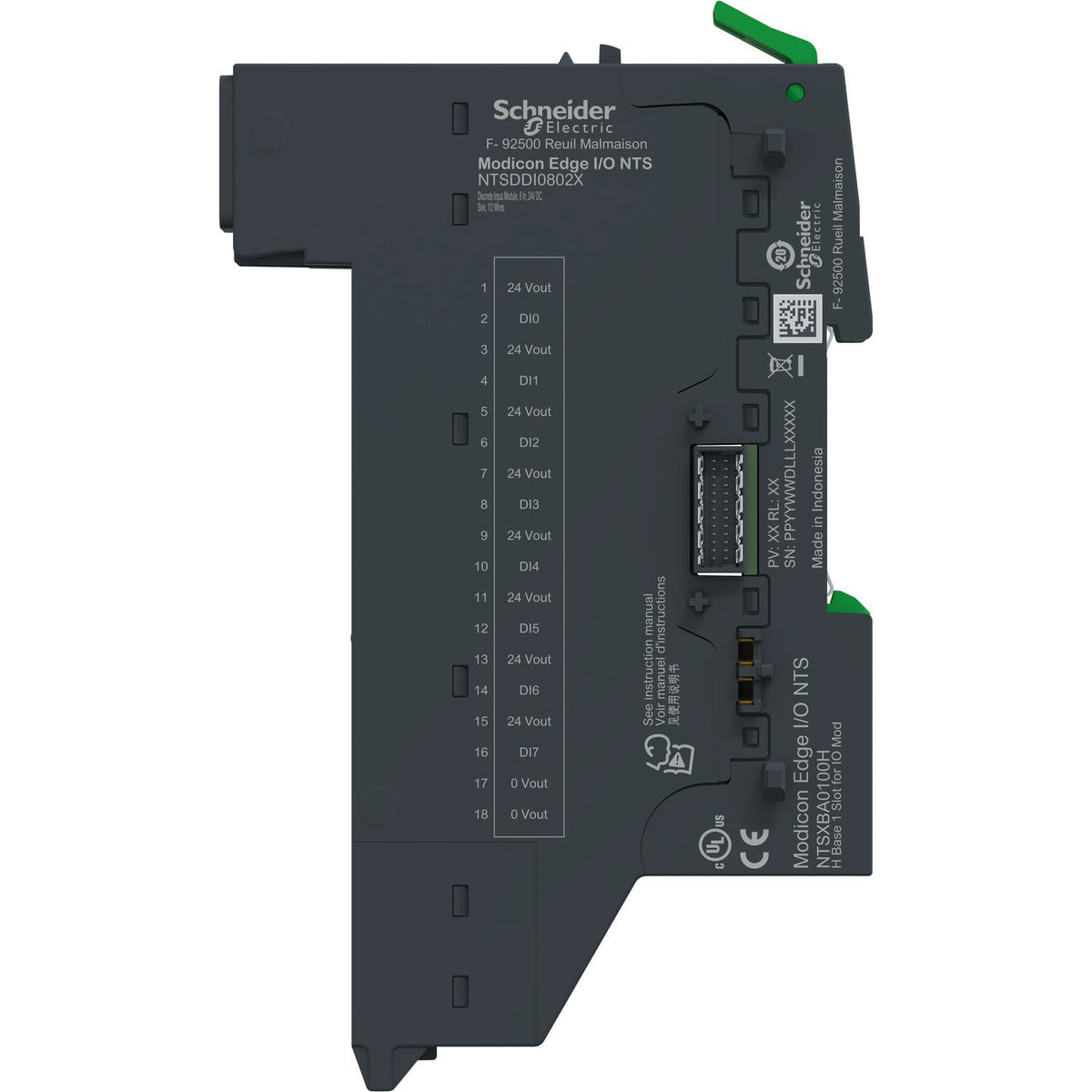

Modicon Edge I/O NTSSchneider Electric NTSDDI0802XK Modicon Edge I/O NTS Digital Input 8Ch 24VDC Sink Remote I/O Module
Modicon Edge I/O NTS discrete input module + base, 8 channels, 24V DC sink, IP20.
Description
About the NTSDDI0802XK
About the NTSDDI0802XK
The Schneider Electric NTSDDI0802XK is a Modicon Edge I/O NTS discrete input module kit with 8 type 3 inputs at 24 V DC sink logic, pre-assembled on its NTSXBA0100H base. Channels wire in 1 or 2 wires, covering a -20...60 degC operating range. It mounts on a DIN rail and connects to Modicon M262 or M580 controllers.
Certifications & Standards
- CE
- UKCA
- cULus
- RCM
- EN/IEC 61131-2
Selection Notes
The NTSDDI0802XK bundles the module and base in one SKU, the simpler order for a new installation versus sourcing the bare NTSDDI0802X module and NTSXBA0100H base separately. Its 90 microsec/60 microsec response time is faster than the 6-channel NTSDDI0602K's 125 microsec, which matters for applications counting fast discrete events. Choose the 16-channel NTSDDI1602XK instead when the panel needs double the point density in a similar footprint.
Specification
Full specification
Main 12
| Range of Product | Modicon Edge I/O NTS |
|---|---|
| Product or Component Type | Discrete input module kit |
| Kit composition | NTSDDI0802X module, NTSXBA0100H base |
| Mandatory accessory | NTSXTB18_0_H terminal block |
| Product Compatibility | NTSN..... |
| Range Compatibility | Logic/motion controller - Modicon M262, Modicon M580, Third party |
| Device Application | Industrial Application |
| Discrete input number | 8 |
| Group of input channels | 1 group |
| Discrete input voltage | 24 V DC |
| Discrete input logic | Positive logic (sink) |
| Operating Mode | Synchronous/Isochronous |
Complementary 26
| Discrete input compatibility | 8 type 3 conforming to IEC 61131-2 |
|---|---|
| Input wiring mode | 1 or 2 wires |
| Discrete input current | 2.5 mA |
| Voltage state 1 guaranteed | 11...30 V DC |
| Voltage state 0 guaranteed | < 5 V DC |
| Current state 1 guaranteed | >= 2 mA |
| Current state 0 guaranteed | <= 1.5 mA |
| Input impedance | 9.6 kOhm |
| Response time on input | < 90 µs (off to on), < 60 µs (on to off) |
| Paralleling of inputs | Yes |
| Input protection type | Over voltage protection, Over current protection on sensor supply, Reverse polarity protection |
| Input diagnostic | Power supply error per channel, Sensor power supply error per channel |
| Power supply type | Bus power from power supply bus (24 Vdc), Field power from power supply field (24 Vdc), Optional field power from common distribution module (24 Vdc), Optional field power from external power supply (24 Vdc, shared 0 V with module) |
| Rated operational voltage limits | 20.4...28.8 V DC |
| Typical current consumption | 32.4 mA 24 V DC on the Bus current, 8.4 mA 24 V DC on the internal field current minimum, 210.1 mA 24 V DC on the internal field current maximum |
| Power dissipation in W | 1.43 W maximum at 24 V DC |
| Isolation between channels and bus | 1500 V AC |
| Isolation between channels and ground | 1500 V AC |
| Hot swapping fallback | Yes |
| Local signalling | 1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR) |
| Housing Colour | Grey |
| Mounting support | Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715 |
| Height | 4.8 in (121 mm) |
| Width | 0.6 in (15 mm) |
| Depth | 3.1 in (80 mm) |
| Net Weight | 0.170 lb(US) (0.077 kg) |
Environment 12
| IP Degree of Protection | IP20 |
|---|---|
| Marking | CE, UKCA, CULus, RCM |
| Product certifications | CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Standards | EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5 |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating, 2000...5000 m with derating |
| Pollution degree | 2 |
| Vibration resistance | 1 g without accessory, 2 g with accessory |
| Shock resistance | 15 g 11 ms with and without accessory) |
Show all 63 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | NTSDDI0802XK |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606486877609 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 0.077 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
