Modicon Edge I/O NTS

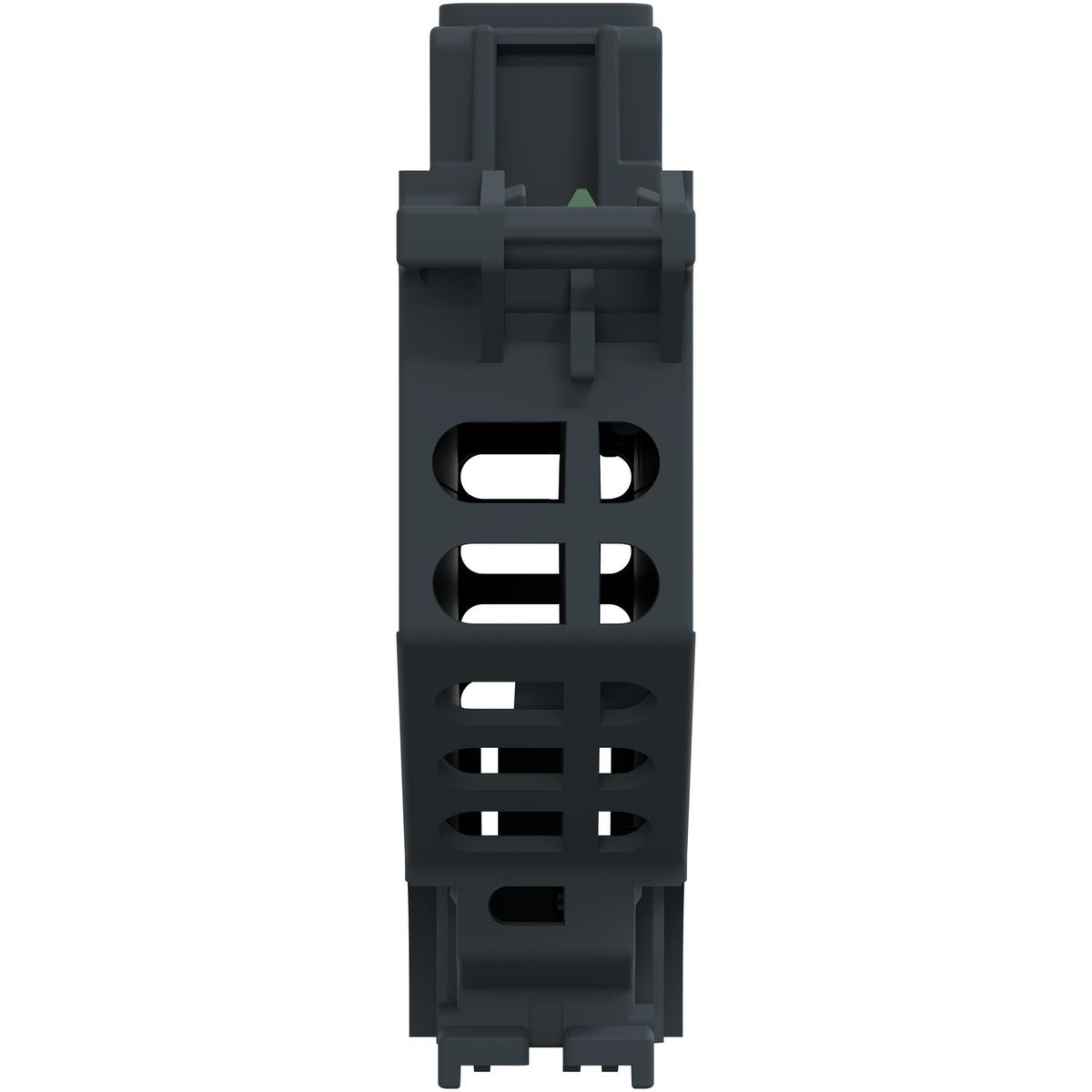

Schneider Electric NTSDDI0802X Modicon Edge I/O NTS Digital Input 8Ch 24VDC Sink Remote I/O Module

Modicon Edge I/O NTS discrete input module, 8 channels, 24V DC sink, module only (base ordered separately).

Range of Product
Modicon Edge I/O NTS
Product or Component Type
Discrete input module
Mandatory accessory
NTSXBA0100H base, NTSXTB18_0_H terminal block
Product Compatibility
NTSN.....
Range Compatibility
Logic/motion controller - Modicon M262, Modicon M580, Third party
Device Application
Industrial Application
EAN
3606486876480
Description

About the NTSDDI0802X

The Schneider Electric NTSDDI0802X is a Modicon Edge I/O NTS discrete input module with 8 type 3 inputs at 24 V DC sink logic, sold as the module alone (base NTSXBA0100H and terminal block ordered separately). Channels wire in 1 or 2 wires, covering a -20...60 degC operating range. It installs on its base on a DIN rail and connects to Modicon M262 or M580 controllers.

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • RCM
  • EN/IEC 61131-2

Selection Notes

The NTSDDI0802X is the bare module for installations that reuse an existing NTSXBA0100H base and terminal block, such as a channel-count upgrade on a cluster already fitted with the matching accessories. For a new install or a spares order, the pre-assembled NTSDDI0802XK kit is the simpler choice since it bundles the base in one SKU. The 90 microsec/60 microsec response time is faster than the 6-channel NTSDDI0602K's 125 microsec, worth noting when the application counts fast discrete events.

Specification

Full specification

63 values · Last verified 30 Oct 2026

Main 11

Range of Product Modicon Edge I/O NTS
Product or Component Type Discrete input module
Mandatory accessory NTSXBA0100H base, NTSXTB18_0_H terminal block
Product Compatibility NTSN.....
Range Compatibility Logic/motion controller - Modicon M262, Modicon M580, Third party
Device Application Industrial Application
Discrete input number 8
Group of input channels 1 group
Discrete input voltage 24 V DC
Discrete input logic Positive logic (sink)
Operating Mode Synchronous/Isochronous

Complementary 27

Discrete input compatibility 8 type 3 conforming to IEC 61131-2
Input wiring mode 1 or 2 wires
Discrete input current 2.5 mA
Voltage state 1 guaranteed 11...30 V DC
Voltage state 0 guaranteed < 5 V DC
Current state 1 guaranteed >= 2 mA
Current state 0 guaranteed <= 1.5 mA
Input impedance 9.6 kOhm
Response time on input < 90 µs (off to on), < 60 µs (on to off)
Input filtering 0...20 ms configurable in 0.1 ms step
Paralleling of inputs Yes
Input protection type Over voltage protection, Over current protection on sensor supply, Reverse polarity protection
Input diagnostic Power supply error per channel, Sensor power supply error per channel
Power supply type Bus power from power supply bus (24 Vdc), Field power from common distribution module (24 Vdc), Optional field power from common distribution module (24 Vdc), Optional field power from external power supply (24 Vdc, shared 0 V with module)
Rated operational voltage limits 20.4...28.8 V DC
Typical current consumption 32.4 mA 24 V DC on the Bus current, 8.4 mA 24 V DC on the internal field current minimum, 210.1 mA 24 V DC on the internal field current maximum
Power dissipation in W 1.43 W maximum at 24 V DC
Isolation between channels and bus 1500 V AC
Isolation between channels and ground 1500 V AC
Hot swapping fallback Yes
Local signalling 1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR)
Housing Colour Grey
Mounting support base
Height 4.8 in (121 mm)
Width 0.6 in (15 mm)
Depth 2.7 in (69 mm)
Net Weight 0.108 lb(US) (0.049 kg)

Environment 12

IP Degree of Protection IP20
Marking CE, UKCA, CULus, RCM
Product certifications CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
Standards EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5
Directives 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
Ambient air temperature for operation -4…140 °F (-20…60 °C)
Ambient air temperature for storage -40…185 °F (-40…85 °C)
Relative humidity 5…95 % without condensation
Operating altitude 0...6561.68 ft (0...2000 m) without derating, 2000...5000 m with derating
Pollution degree 2
Vibration resistance 1 g without accessory, 2 g with accessory
Shock resistance 15 g 11 ms with and without accessory)
Show all 63 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number NTSDDI0802X
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606486876480

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.049 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
