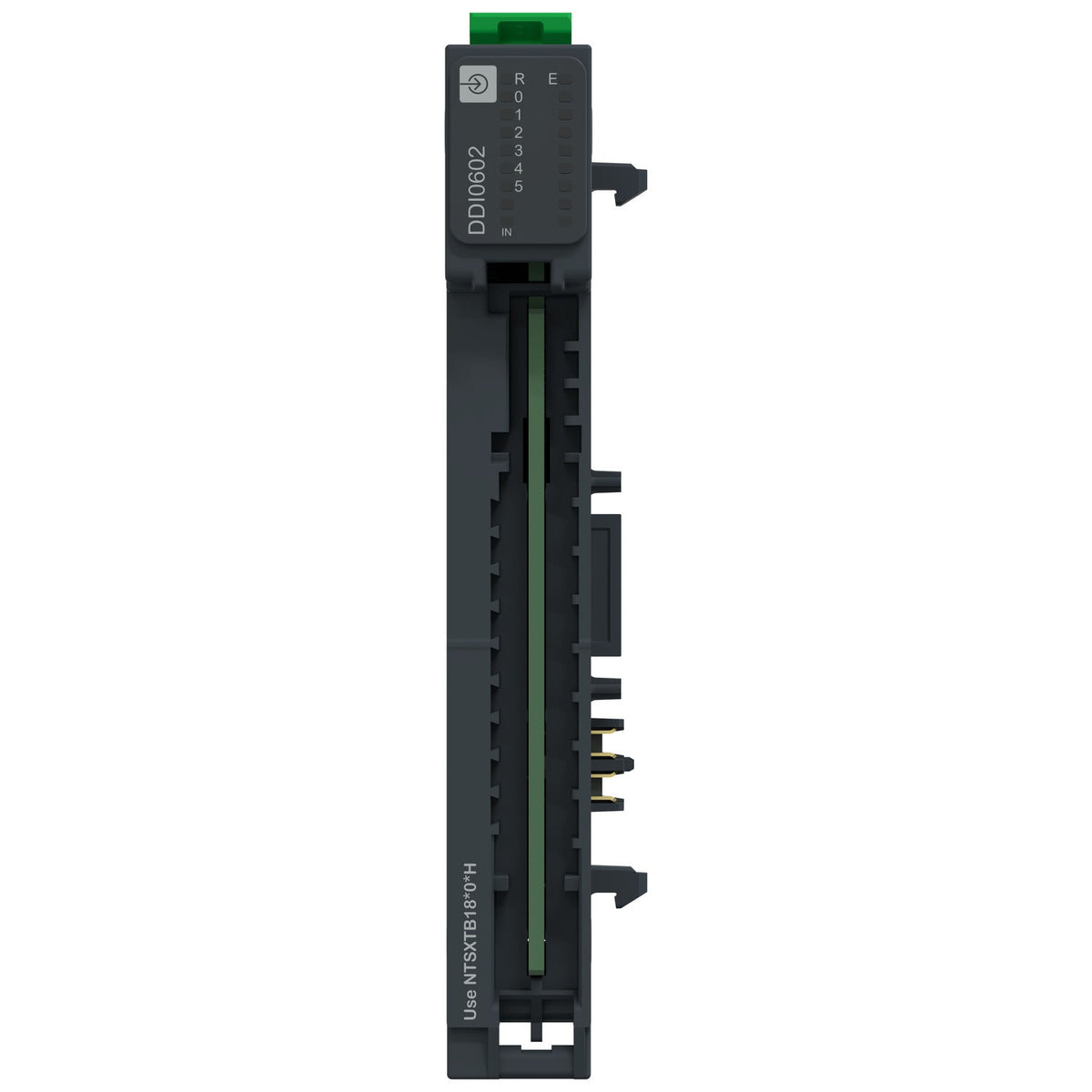

The Schneider Electric NTSDDI0602K is a Modicon Edge I/O NTS discrete input module kit with 6 type 3 inputs at 24 V DC sink logic, pre-assembled on its NTSXBA0100H base. Channels wire in 1, 2 or 3 wires with sensor-supply diagnostics, covering a -20...60 degC operating range. It mounts on a DIN rail and connects to Modicon M262 or M580 controllers.
The 6-channel count on the NTSDDI0602K sits between the 4-channel NTSDDI0402K and the 16-channel NTSDDI1602K, a fit for medium-density sink input zones such as a motor-interlock group. The fixed type 3 compatibility (no type 2 configurability) means it targets standard PLC-level sensors rather than the lower-threshold proximity switches the type 2/3-configurable NTSDDI0402K/HK can also read. Power-supply and sensor-supply diagnostics are reported per channel, letting the controller distinguish a dead sensor from a bus-side fault.
| Range of Product | Modicon Edge I/O NTS |
|---|---|
| Product or Component Type | Discrete input module kit |
| Kit composition | NTSDDI0602 module, NTSXBA0100H base |
| Mandatory accessory | NTSXTB18_0_H terminal block |
| Product Compatibility | NTSN..... |
| Range Compatibility | Logic/motion controller - Modicon M262, Modicon M580, Third party |
| Device Application | Industrial Application |
| Discrete input number | 6 |
| Group of input channels | 1 group |
| Discrete input voltage | 24 V DC |
| Discrete input logic | Positive logic (sink) |
| Operating Mode | Synchronous/Isochronous |
| Discrete input compatibility | 6 type 3 conforming to IEC 61131-2 |
|---|---|
| Input wiring mode | 1, 2 or 3 wires |
| Discrete input current | 2.5 mA |
| Voltage state 1 guaranteed | 11...30 V DC |
| Voltage state 0 guaranteed | < 5 V DC |
| Current state 1 guaranteed | >= 2 mA |
| Current state 0 guaranteed | <= 1.5 mA |
| Input impedance | 9.6 kOhm |
| Response time on input | < 125 µs (off to on), < 125 µs (on to off) |
| Input filtering | 0...20 ms configurable in 0.1 ms step |
| Paralleling of inputs | Yes |
| Input protection type | Over voltage protection, Over current protection on sensor supply, Reverse polarity protection |
| Input diagnostic | Power supply error per channel, Sensor power supply error per channel |
| Power supply type | Bus power from power supply bus (24 Vdc), Field power from power supply field (24 Vdc), Optional field power from common distribution module (24 Vdc), Optional field power from external power supply (24 Vdc, shared 0 V with module) |
| Rated operational voltage limits | 20.4...28.8 V DC |
| Typical current consumption | 31.2 mA 24 V DC on the Bus current, 8.4 mA 24 V DC on the internal field current minimum, 510.1 mA 24 V DC on the internal field current maximum |
| Power dissipation in W | 1.24 W maximum at 24 V DC |
| Isolation between channels and bus | 1500 V AC |
| Isolation between channels and ground | 1500 V AC |
| Hot swapping fallback | Yes |
| Local signalling | 1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR) |
| Housing Colour | Grey |
| Mounting support | Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715 |
| Height | 3.9 in (100 mm) |
| Width | 0.6 in (15 mm) |
| Depth | 3.1 in (80 mm) |
| Net Weight | 0.161 lb(US) (0.073 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Marking | CE, UKCA, CULus, RCM |
| Product certifications | CE, UKCA, CULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Standards | EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5 |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating, 2000...5000 m with derating |
| Pollution degree | 2 |
| Environmental characteristic | Gas resistant C3 and G2, Salt spray resistant severity 3 |
| Vibration resistance | 1 g without accessory, 2 g with accessory |
| Shock resistance | 15 g 11 ms with and without accessory) |
| Part number | NTSDDI0602K |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606486877593 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.073 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
